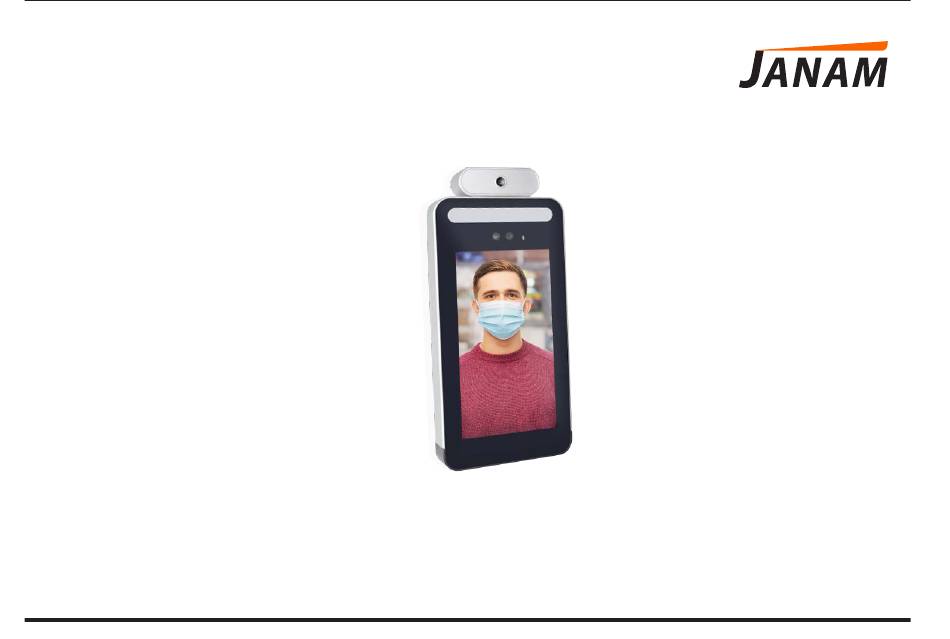

- Page 1 GT2 Series™ Quick Start Guide Technology at Work. ® 090920GT2 www.janam.com...
- Page 2 Janam Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise through the use of this product. Janam Technologies LLC assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery or repairs. To protect against data loss, be sure to make backup copies (on other media) of all important data.
- Page 3 Content and Additional Resources To help you get started with your GT2 Series mobile computer, this guide features: - Hardware Overview - Getting Started A. Wall-Mounted Installation B. Gate-Mount Installation C. Software Features Contents of this guide are subject to change.
-
Page 4: Hardware Overview
Hardware Overview Photo light Display Infrared Light Camera Camera Janam Technologies LLC Page 3 GT2 Series Quick Start Guide... -
Page 5: Wall-Mounted Installation
Insert expansion screw Install hanging plate Main Hanging Place GT2 kiosk up against hanging plate Machine plate Wall hole x 4 Secure GT2 in place with anti-theft screw Anti-theft screw Janam Technologies LLC Page 4 GT2 Series Quick Start Guide... - Page 6 Fix the hanging plate on the wall. schematic size. Then insert screws into the dowel in the hole. Note: Reserve space on the wall for wire connection. 11cm 12.54cm 14.14cm Janam Technologies LLC Page 5 GT2 Series Quick Start Guide...
- Page 7 Wall-Mounted Installation (continued) Step 3: Step 4: Attach GT2 to the plate. Install anti-theft screws. Host device snapped into the hanging board Lock the anti-theft screw Janam Technologies LLC Page 6 GT2 Series Quick Start Guide...
- Page 8 Diameter of the hole should be between 1.33~1.37 inches. Insert the vertical handle into GT2 and then insert into the drilled hole. Tighten the screws to secure GT2 in place. Janam Technologies LLC Page 7 GT2 Series Quick Start Guide...
-
Page 9: Software Features
Click the Wi-Fi icon to enter the Wi-Fi settings interface. (shown in FIG. 1) Or click the Gear icon and enter the system interface as FIG. 1 FIG. 2 (shown in FIG. 2). Click to select WLAN (Wi-Fi network). Janam Technologies LLC Page 8 GT2 Series Quick Start Guide... - Page 10 DNS server and other information and then click to save. After successfully connected, the top left corner of the main interface devices will show IP address of the device (consistent with the IP address input setting). FIG. 3 Janam Technologies LLC Page 9 GT2 Series Quick Start Guide...
- Page 11 “@ # $ “ 5.2.1 Web Interface Log Enter GT2’s IP address in the browser address bar and add post 8090. For example: 192.168.3.243: 8090. Default Password is 123456. Janam Technologies LLC Page 10 GT2 Series Quick Start Guide...
- Page 12 Lamp: 100~850 Lux Note: Minimum illumination device support for 100 Lux. Mount GT2 at least 6 feet from the light source and at least 9 feet from windows and doors. Janam Technologies LLC Page 11 GT2 Series Quick Start Guide...
