SIIG JK-US0911-S1 Installation Manual

Industrial/Medical Grade
Washable Backlit Keyboard
Installation Guide
Introduction
The Industrial/Medical Grade Washable Backlit
Keyboard with Pointing Device is a silicone sealed
IP68 rating, easy to clean keyboard that's suited
for industrial, medical and manufacturing
environments.
Key Features and Benefits
• Compact and space saving QWERTY
keyboard with 89 keys
• Rugged and fully sealed & compliant with
IP68 rating
• Adjustable LED backlit brightness levels
• Integrated pointing device
• Easy to clean surface
• Nano Silver antibacterial technology
Package Contents
• Industrial/Medical Grade Washable Backlit
Keyboard with Pointing Device
• Waterproof cap
• Installation guide
System Requirements
• PC or Mac computer with an available USB
port
• Windows 8 (32-/64-bit) / 7 (32-/64-bit)
®
/ Vista (32-/64-bit) / XP (32-/64-bit)
• Windows Server 2003 & 2008 (32-/64-bit)
®
/ 2008 R2 / 2012/ 2012 R2
• Mac OS ® X v10.6 or later
04-0973B
Specifications
• USB cable:
- Hard wired
- Type A, Male
- Compliant with USB 2.0 specification
- Length: Approx. 5 ft
• Key switch:
- Number of keys: 89 keys
- Letter key press force: 100+/- 10g
- Key travel: 2.0+/- 0.5mm
- Key switch life: ~ 2 million cycles
• Pointing Device:
- New low power, sealed, optical pointing
device
- DPI: 800~1,000
• Backlit: 4 levels brightness adjustable and
memorized
• Keyboard dimensions: 11.26"(W) x 0.43"
(H) x 5.83"(D)
• Weight: 1.32 lbs
• Color: Black
• Environmental conditions:
- Operating temperature: -40 to 140 F
- Storage temperature: -58 to 140 F
- Operating humidity: 100% RH
• Power consumption:
- Operating voltage: 5V +/- 5%
- Working current with LEDs on: 250 mA
(Max)
- Working current with LEDs off: 30mA
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China
1
Layout
1
11
10 9 8

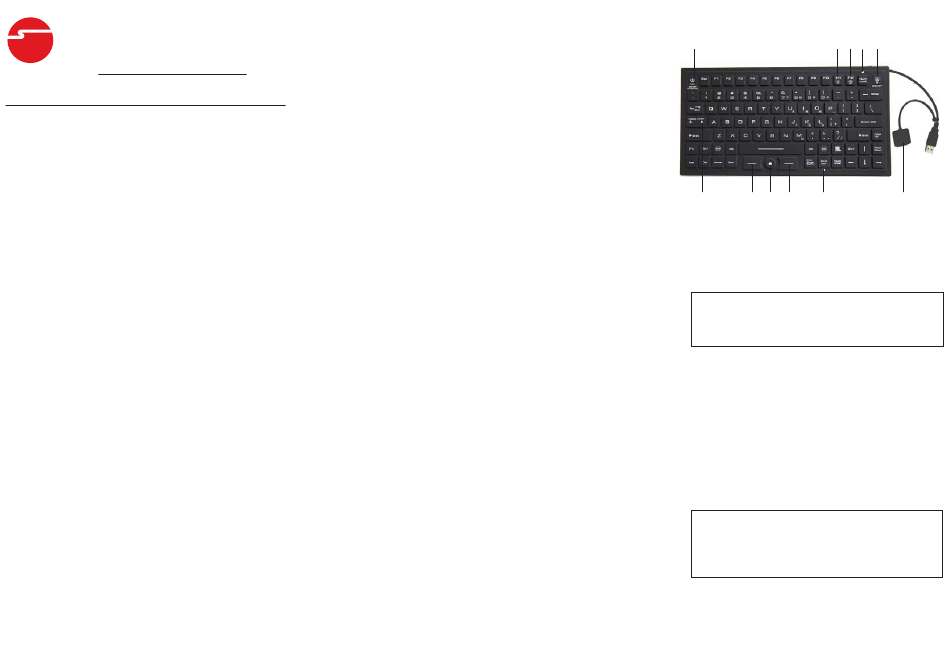

Figure 1: Layout
1. ON/OFF button: Press the ON/OFF button
for 5 seconds to turn on / off the power
of the keyboard.
NOTE: To clean the keyboard, press ON/
OFF button for 5 seconds to shut it down
before cleaning
2. Light down: Press and hold the Fn key,
then press F11 to turn down the light.
3. Light up: Press and hold the Fn key, then
press F12 to turn up the light.
4. Num Lock LED indicator: On: enabled,
Off: disabled
5. Light on/off: Press to turn on/off the
backlight
6. Waterproof cap
Important: Always cover the keyboard's
USB port completely and securely with
the attached waterproof cap before
washing the keyboard
7. Scroll Lock LED indicator: On: enabled, Off:
disabled
8. Right Mouse Button: Functions as right
mouse button
2
2 3 4 5
7 6
