Citizen F150 Abbreviated Instruction

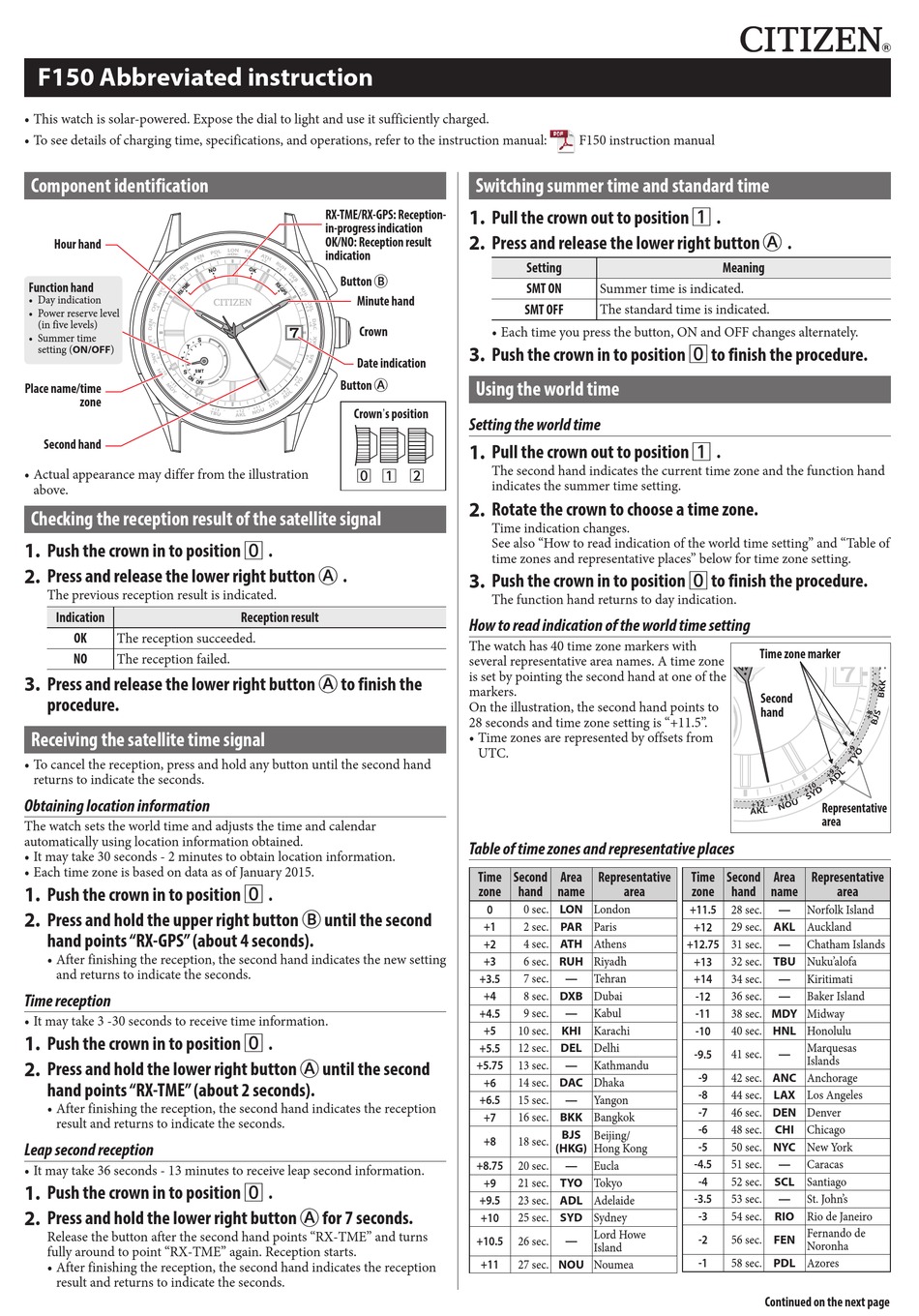

F150 Abbreviated instruction
• This watch is solar-powered. Expose the dial to light and use it sufficiently charged.
• To see details of charging time, specifications, and operations, refer to the instruction manual:
Component identification
Hour hand
Function hand
• Day indication
• Power reserve level
(in five levels)
• Summer time
setting ( )
ON/OFF
Place name/time
zone
Second hand
• Actual appearance may differ from the illustration
above.
Checking the reception result of the satellite signal
Push the crown in to position 0 .
1.
Press and release the lower right button Ⓐ .
2.
The previous reception result is indicated.
Indication
OK The reception succeeded.
The reception failed.
NO
Press and release the lower right button Ⓐ to finish the
3.
procedure.
Receiving the satellite time signal
• To cancel the reception, press and hold any button until the second hand
returns to indicate the seconds.
Obtaining location information
The watch sets the world time and adjusts the time and calendar
automatically using location information obtained.
• It may take 30 seconds - 2 minutes to obtain location information.
• Each time zone is based on data as of January 2015.
Push the crown in to position 0 .
1.
Press and hold the upper right button Ⓑ until the second
2.
hand points "RX-GPS" (about 4 seconds).
• After finishing the reception, the second hand indicates the new setting
and returns to indicate the seconds.
Time reception
• It may take 3 -30 seconds to receive time information.
Push the crown in to position 0 .
1.
Press and hold the lower right button Ⓐ until the second
2.
hand points "RX-TME" (about 2 seconds).
• After finishing the reception, the second hand indicates the reception
result and returns to indicate the seconds.
Leap second reception
• It may take 36 seconds - 13 minutes to receive leap second information.
Push the crown in to position 0 .
1.
Press and hold the lower right button Ⓐ for 7 seconds.
2.
Release the button after the second hand points "RX-TME" and turns
fully around to point "RX-TME" again. Reception starts.
• After finishing the reception, the second hand indicates the reception
result and returns to indicate the seconds.
RX-TME/RX-GPS: Reception-
in-progress indication
OK/NO: Reception result
indication
Button Ⓑ
Minute hand
Crown
Date indication
Button Ⓐ
Crown ' s position
0 1 2
Reception result
F150 instruction manual
Switching summer time and standard time
Pull the crown out to position 1 .
1.
Press and release the lower right button Ⓐ .
2.
Setting
SMT ON Summer time is indicated.
The standard time is indicated.
SMT OFF
• Each time you press the button, ON and OFF changes alternately.
Push the crown in to position 0 to finish the procedure.
3.
Using the world time
Setting the world time
Pull the crown out to position 1 .
1.
The second hand indicates the current time zone and the function hand
indicates the summer time setting.
2.
Rotate the crown to choose a time zone.
Time indication changes.
See also "How to read indication of the world time setting" and "Table of
time zones and representative places" below for time zone setting.
Push the crown in to position 0 to finish the procedure.
3.
The function hand returns to day indication.
How to read indication of the world time setting
The watch has 40 time zone markers with
several representative area names. A time zone
is set by pointing the second hand at one of the
markers.
On the illustration, the second hand points to
28 seconds and time zone setting is "+11.5".
• Time zones are represented by offsets from
UTC.
Table of time zones and representative places
Time Second Area Representative
zone hand name area
0 sec. LON London
0
2 sec. PAR Paris
+1
+2 4 sec. ATH Athens
+3 6 sec. RUH Riyadh
+3.5 7 sec. — Tehran
+4 8 sec. DXB Dubai
+4.5 9 sec. — Kabul
+5 10 sec. KHI Karachi
12 sec. DEL Delhi
+5.5
13 sec. Kathmandu
+5.75 —
14 sec. DAC Dhaka
+6
15 sec. Yangon
+6.5 —
+7 16 sec. BKK Bangkok
Beijing/
BJS
+8 18 sec.
Hong Kong
(HKG)
+8.75 20 sec. Eucla
—
+9 21 sec. TYO Tokyo
+9.5 23 sec. ADL Adelaide
+10 25 sec. SYD Sydney
Lord Howe
+10.5 26 sec. —
Island
+11 27 sec. NOU Noumea
Meaning
Time zone marker
Second
hand
Representative
area
Time Second Area Representative
zone hand name area
28 sec. Norfolk Island
+11.5 —
29 sec. AKL Auckland
+12
+12.75 31 sec. Chatham Islands
—
32 sec. TBU Nuku'alofa
+13
+14 34 sec. Kiritimati
—
-12 36 sec. Baker Island
—
-11 38 sec. MDY Midway
-10 40 sec. HNL Honolulu
Marquesas
-9.5 41 sec. —
Islands
-9 42 sec. ANC Anchorage
-8 44 sec. LAX Los Angeles
-7 46 sec. DEN Denver
-6 48 sec. CHI Chicago
-5 50 sec. NYC New York
-4.5 51 sec. — Caracas
52 sec. SCL Santiago
-4
53 sec. St. John's
-3.5 —
54 sec. RIO Rio de Janeiro
-3
56 sec. FEN Fernando de
-2
Noronha
-1 58 sec. PDL Azores
Continued on the next page
