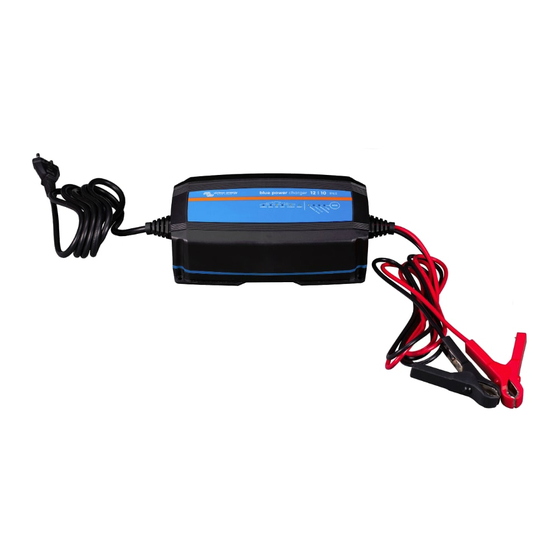

Blue Power Charger IP65
12 V 7/10/15 A
Input voltage range
E ciency
Standby power consumption
Normal: 14,4 V
Charge voltage 'absorption'
High: 14,6 V
Li-ion: 14,2 V
Normal: 13,8 V
Charge voltage ' oat'
High: 13,8 V
Li-ion: 13,5 V
Normal: 13,2 V
Charge voltage 'storage'
High: 13,2 V
Li-ion: 13,5 V
Charge current
7 / 10 / 15 A
Minimum battery capacity
24 / 30 / 45 Ah
Temperature compensation
16 mV/°C
(lead-acid batteries only)
Can be used as power supply
Back current drain
Reverse polarity
Protection
Operating temp. range
-20 to +50°C (full rated output up to 30°C)
Humidity (non condensing)
ENCLOSURE
Battery-connection
Black and red cable of 1,5 meter
230 V AC-connection
CEE 7/7, BS 1363 plug (UK) or AS/NZS 3112 plug
Protection category
Weight
0,9 kg
12/7: 47x95x190mm
Dimensions (h x w x d)
0ther: 60x105x190mm
STANDARDS
Safety
Emission
EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity
EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
www.victronenergy.com
Customer support: service@victronenergy.com
24 V 5/8 A
180-265 VAC
94%
95%
0,5 W
Normal: 28,8 V
High: 29,2 V
Li-ion: 28,4 V
Normal: 27,6 V
High: 27,6 V
Li-ion: 27,0 V
Normal: 26,4 V
High: 26,4 V
Li-ion: 27,0 V
5 / 8 A
16 / 24 Ah
32 mV/°C
Yes
0,7 Ah/month (1 mA)
Output short circuit
Over temperature
Max 95 %
Cable of 1,5 meter with
IP65 (splash and dust proof)
0,9 kg
24/5: 47x95x190mm
24/8: 60x105x190mm
EN 60335-1, EN 60335-2-29
blue power
IP65
The professional's choice
The highest e ciency ever!
Seven step smart charge algorithm
Water resistant
Automatic compensation for high or low temperature
Fully discharged "dead" battery recovery function
Several other battery life enhancing features
Power supply function
Li-ion battery mode
charger
5
YEAR
WARRANTY
