Learn Mode Micro

Door/Window Sensor

Document Number: 466-1177 Rev. B

January 1997

60-688-95

Installation

Instructions

Product Summary

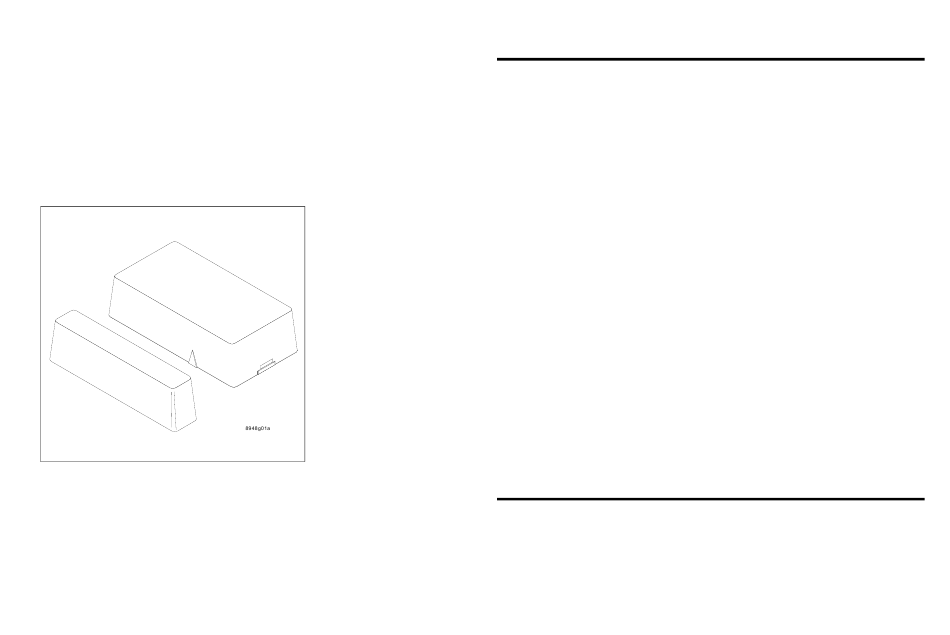

The Learn Mode Micro Door/Window Sensor

is a supervised, wireless sensor that detects the

opening and closing of doors, windows, or

drawers. The sensor and magnet are mounted

using double-sided adhesive tape (included).

When activated, the sensor transmits an open

(trip) or close (restore) signal to the panel.

Every 64 minutes, the sensor transmits a super-

visory signal to the panel, automatically.

The sensor is powered by a 3-VDC, lithium

coin-cell battery (CR2032) and is replaceable

by the installer or the user.

Installation Guidelines

•

Mounting the sensor on metal can reduce

its transmitting range. Therefore, test the

sensor from the desired location using the

Page 1

Need help?

Do you have a question about the 60-688-95 and is the answer not in the manual?

Page 1 The sensor is powered by a 3-VDC, lithium coin-cell battery (CR2032) and is replaceable by the installer or the user. Installation Guidelines 60-688-95 • Mounting the sensor on metal can reduce Installation its transmitting range. Therefore, test the...
Page 2 dealer sensor test, before permanently sensor number assignments. mounting it. When prompted by the panel to trip the sensor for learning, remove the sensor • Mount the sensor within 100 feet of the cover and slide the battery about half-way panel.
Page 3 Testing the Sensor of 6 to 8. For accurate sensor test results, leave the sensor undisturbed in the closed (non- Set the panel to the dealer sensor test alarm) condition for 5 minutes before trip- mode. ping it for testing. This gives the sensor Take the sensor and magnet to the desired enough time to turn off the feature.
Page 4 US Patents 4,855,713, 4,864,636 and others pending. Operating Temperature Range: 10°F to 120°F Compatibility: All Learn Mode panels Power Source: 3-VDC, lithium coin-cell bat- tery (CR2032) Transmit Range: At least 500 feet, open air ITI is a registered trademark of Interactive Technologies, Inc. Page 4...
