Important Product Information
For Public Disclosure
GFK-2573U
November 2018
Ordering Information
IC695PNC001
PACSystems RX3i PROFINET Controller Module 10/100/1000, 4 Ports - 2 SFP connections, 2 Copper
IC695SPC100
RX3i 10/100/1000base-TX (CAT5 100m) SFP
IC695SPF002
RX3i 100Base-FX (fiber 2 km) SFP
IC695SPF550
RX3i 1000Base-SX (fiber 550 m) SFP (MMF)
IC695SPF010
RX3i 1000Base-LX (fiber 10 km) SFP (Single mode fiber - SMF)
Indicates a trademark of General Electric Company and/or its subsidiaries. All other trademarks are the property of their respective
*
owners.
© 2011-2018 General Electric Company. All Rights Reserved.
*
The PACSystems
RX3i PROFINET Controller module, IC695PNC001 or PNC001, connects
a PACSystems RX3i controller to a high-speed PROFINET local area network. It enables
the RX3i controller to communicate with I/O devices on the LAN. The PNC001 provides all
the functions, services, and protocols required for certification as a PROFINET I/O Version
2.2 I/O Controller, running at both 100 Mbps and 1 Gbps.
The PNC001 supports 10/100/1000 Mbps Copper, 100/1000 Mbps Multi-mode Fiber, and
100/1000 Mbps Single-mode Fiber. The LAN can include media interfaces of more than one
type. PROFINET communications on the LAN require 100 and 1000 Mbps link speed.
10 Mbps cannot be used for PROFINET communications. However, 10 Mbps can be used for
other types of Ethernet traffic such as ping and telnet.
Features of the RX3i PNC001 include:
▪
Full configuration services for the RX3i PROFINET Controller, plus all connected GE
Intelligent Platforms and third-party I/O-Devices using Proficy* Machine Edition
(PME).
▪
Firmware upgrades using the WinLoader software utility (if the host CPU has a serial
port) or using a Web-based tool (if the host CPU has no serial port). Instructions are
included with the firmware upgrade kit.
▪
Support for star, ring, and daisy-chain/line network topologies.
▪
Four switched Ethernet ports - two 8-conductor RJ-45 shielded twisted pair
10/100/1000 Mbps copper interfaces and two Small Form-factor Pluggable (SFP)
cages for user-supplied SFP devices.
▪
Internal clock synchronized with the RX3i CPU for time-stamped diagnostics entries.
▪
Restart pushbutton to manually restart the PNC001 without power cycling the system.
▪
LEDs: OK, LAN, STATUS, CONFIG, ACTIVE, and Port LEDs.
▪
Compliant with EU RoHS Directive using the following exemptions identified in the
Annex: 7c-I and 7c-III.

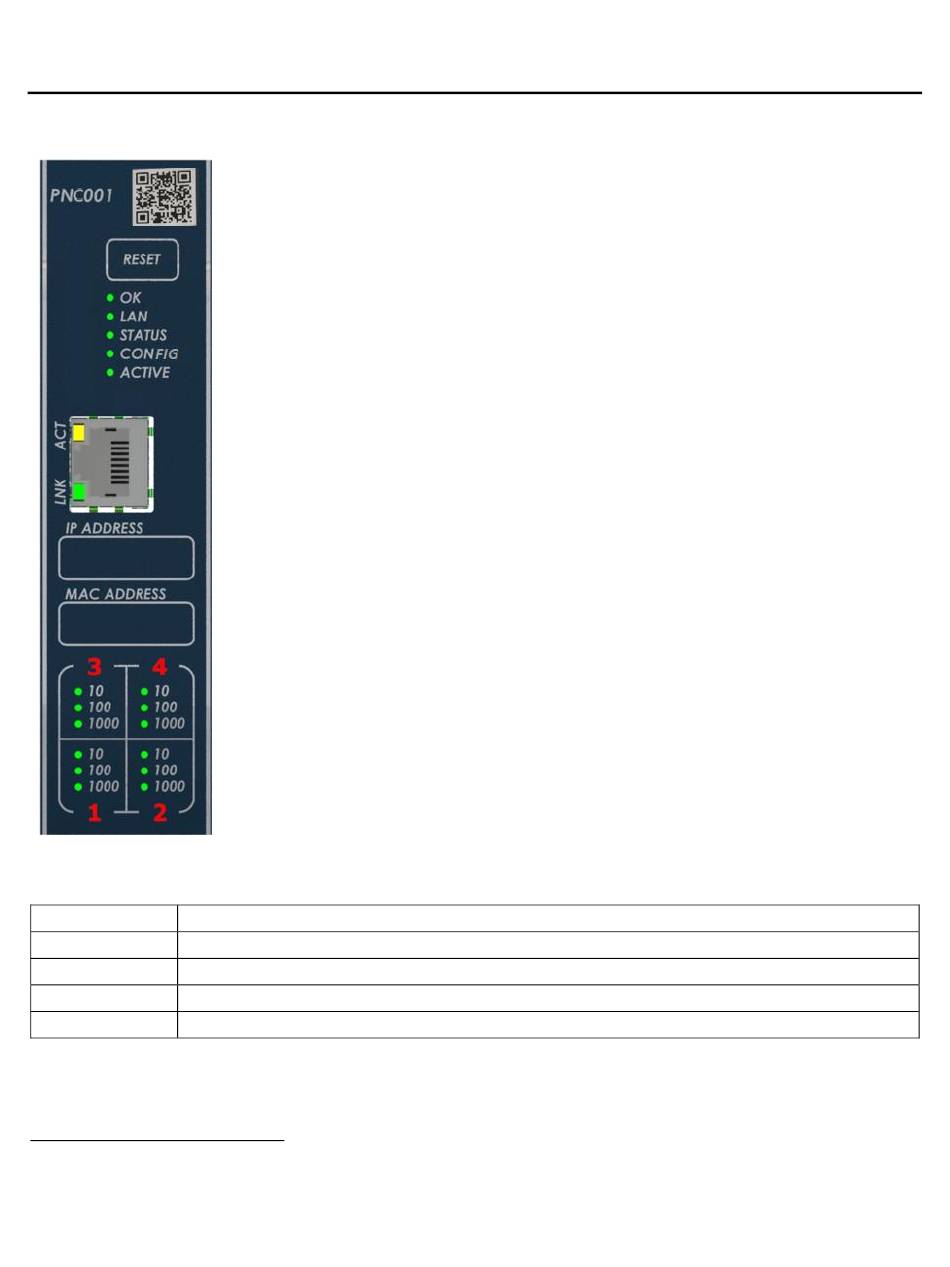

PACSystems* RX3i
IC695PNC001-BBBB
RX3i PROFINET Controller

Advertisement

Table of Contents
loading

Related Manuals for PACSystems RX3i

Summary of Contents for PACSystems RX3i

  • Page 1 PACSystems RX3i controller to a high-speed PROFINET local area network. It enables the RX3i controller to communicate with I/O devices on the LAN. The PNC001 provides all the functions, services, and protocols required for certification as a PROFINET I/O Version 2.2 I/O Controller, running at both 100 Mbps and 1 Gbps.
  • Page 2 I/O-Devices per Network 255 per network, spread across up to 8 IO-Controllers I/O-Devices per RX3i CPU 255 per RX3i CPU, spread across up to 4 PROFINET Controllers I/O-Controllers per network Number of PROFINET Slots per device Number of PROFINET Subslots per slot...
  • Page 3 RX3i PROFINET Controller IC695PNC001-BBBB GFK-2573U PACSystems RX3i For product standards, general operating specifications, and installation requirements, refer to System Manual, GFK-2314.

  • Page 4: Emc Installation Requirements

    Installation Location This product is intended for use with the RX3i system. Its components are considered open equipment (having live electrical parts that may be accessible to users) and must be installed in an ultimate enclosure that is manufactured to provide safety.

  • Page 5: Status Reporting

    Status Reporting The PNC001 provides 32 bits of status information to a configured location in the RX3i CPU’s reference memory. The status data consists of the Module OK bit, which indicates the health of the module itself, a status bit for each external port, and a bit that indicates the connection status of the configured devices.

  • Page 6: Quick Start

    2. Installing the PNC001 in an RX3i backplane The PNC001 must be installed in the main (CPU) rack of the RX3i system, using a Universal Backplane such as IC695CHS007, CHS012 or CHS016. The PNC001 supports insertion/removal while power is applied to the system (hot swap).
  • Page 7 5. Configuring the PNC001 and its I/O Devices on a PROFINET network Proficy Machine Edition is the primary tool used to configure an RX3i PROFINET network. In addition, certain parameters can be set from a computer through the PNC001’s Command Line Interface. For details on system planning...

  • Page 8: Release History

    PROFINET scanner (IC695PNS001 or IC695CEP001) must also be employed 2015 to support the HART capable RX3i analog modules over PROFINET. The CPU used in the application must also contain firmware which supports HART Pass Through. Increased number of PROFINET Devices that PNC001 can control from 64 to 128.
  • Page 9 RX3i PROFINET Controller IC695PNC001-BBBB GFK-2573U Version Firmware Comments Date Revision IC695PNC001 1.10 Adds support for SNMP and LLDP standards to facilitate network management. 2011 Provides enhanced Revision Information in the Explore PROFINET Networks tool. IC695PNC001 1.00 Initial release. 2011 Supports GSDML Version 2.2 and earlier.

  • Page 10: New Features And Enhancements

    Subject Description RX3i PNC module may be Under worst case mechanical tolerances attempting to install an RX3i PNC difficult to physically install module into a slot where there is already a module installed in the adjacent if there is already a module left slot, it may be necessary to temporarily remove the module to the left.
  • Page 11 IC695PNC001, personnel must ensure any electrostatic charge is discharged through the use of a grounded ESD strap or other means. PLC CPU Firmware RX3i PNC001-Bxxx Release 3.00 CPE330 Release 8.95 Version Requirements New Hardware & Firmware to Resolve Component CPU320/CPU315 Release 8.95 Obsolesence CPE310/CPE305 Release 8.95...
  • Page 12 RX3i PROFINET Controller GFK-2573U IC695PNC001-BBBB Subject Feature Minimum Version Required RX3i PNC001 release 2.11 (or later) CRU320 Release 8.40 Hot Standby Redundancy with PROFINET I/O CPE330 Release 8.70 (Other CPU models are not supported) RX3i PNC001 Release 2.00 CRU320 Release 8.00 CPE330 Release 8.70...
  • Page 13 RX3i PROFINET Controller IC695PNC001-BBBB GFK-2573U Subject Description The following table outlines differences between the new (-Bxxx) and old (-Ax) hardware Compatibility with Prior implemntations. Functionally, the two are equivalent, except for the removal of the micro USB port Hardware and the Command Language Interface (CLI) which operated via that port,...
  • Page 14 The scenarios are: Ring closure and logs extra Ring 1. When either an RX3i PNS001 or PNC001 that participate in the MRP ring as an MRP Closed/Ring Open faults when Client communicating via Copper or Fiber SFPs is powered-up in the MRP ring, extra network cable reconnected Ring Closed/Ring Open faults are logged in the I/O fault table.
  • Page 15 RX3i PROFINET Controller IC695PNC001-BBBB GFK-2573U Issue Description Unintended operation of The power flow output of the PNIO_DEV_COMM function block provides validation of the PNIO_DEV_COMM function block input parameters and confirms that the PNC001 has locally processed the configuration of the specified I/O Device. As currently implemented, the power flow output will not turn ON until after the PNC001 has made its first attempt to connect to the specified I/O Device.

  • Page 16: Operational Notes

    RX3i PROFINET Controller GFK-2573U IC695PNC001-BBBB Restriction/Open Issues Description telnetd telnetd command response The CLI does not echo the new number of max connections in its response to the <maxconnections> command. However, the command still functions properly, and updates the maximum number of telnet connections.

  • Page 17: Additional Information

    The P/S Fault LED on PSA140 that was not powered off and back on turns on and no power is supplied to the modules in the RX3i rack. If this issue occurs, it may be resolved by turning both power supplies off and back on. This issue only applies to the PNC001-Ax.
  • Page 18 RX3i PROFINET Controller GFK-2573U IC695PNC001-BBBB PROFINET I/O Devices Secure Deployment Guide GFK-2904 PACSystems RXi, RX3i, and RX7i Controller Secure Deployment Guide GFK-2830 PACSystems RX3i Genius Communications Gateway User Manual GFK-2892 PACSystems HART Pass Through User Manual GFK-2929 PACSystems Hot Standby CPU Redundancy User’s Manual...
