Astro Tool 613214 Quick Start Manual

Instructions for the 613214 Miniature C-Frame Tool

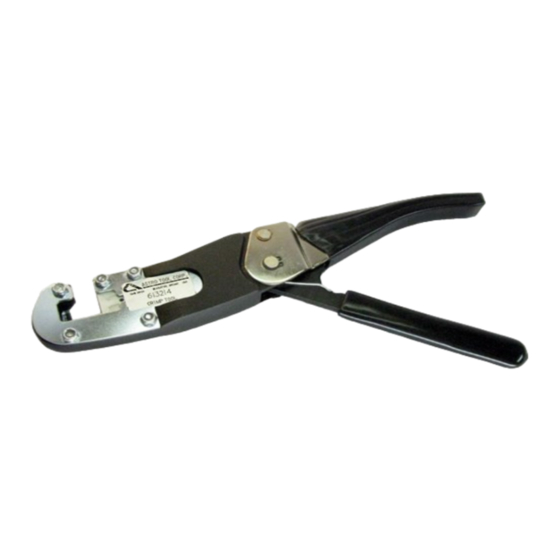

GENERAL
The Astro Tool Corp. Miniature Hex Pop-in Die
Crimping Tool is a cycle controlled, manually
operated, C-frame
terminating ferrules, RF connector fittings, and
other terminations requiring an open frame crimp
tool.
There is only one set up operation required -
installing the required die set. Die sets are available
in single hex cavities. Special form crimps are also
obtainable, consult the factory for details.
The Tool's precision cycle control mechanism
assures a high quality, repeatable crimp. The in-line
action of the dies and toggle mechanism reduces the
compression force required to complete the crimp.
For long life and optimum performance, this tool
should be kept clean and handled with the care of
any other precision device.
O
PERATION
Open and close the tool several times and
observe the precision cycle-control mechanism.
Note that the tool cannot be opened without
completing its cycle.

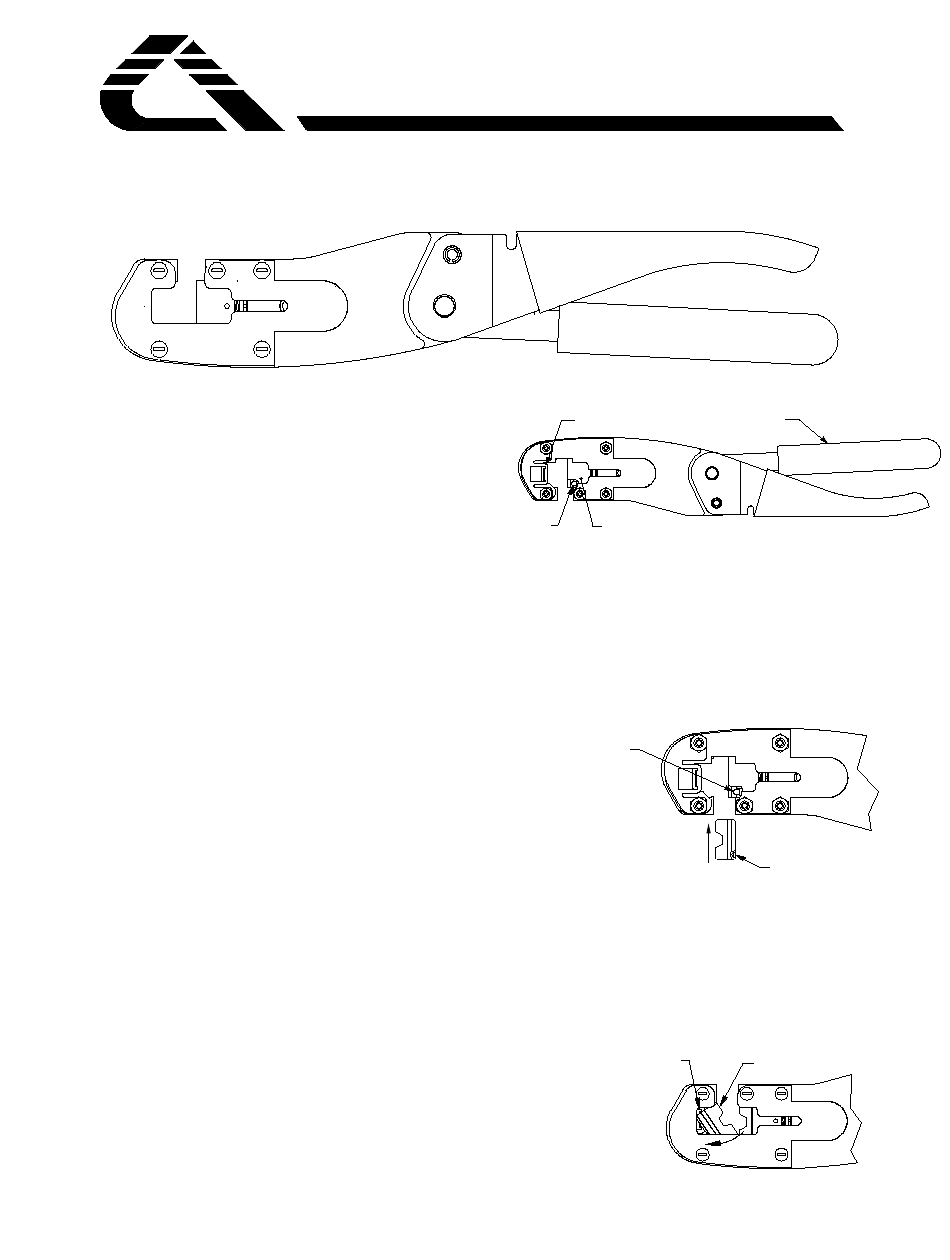

Identify the following parts, shown in Figure #1:
1. Ratchet Handle
2. Pop-In Die Holder
3. Plunger
4. Die Retaining Plate
ASTRO TOOL CORP.
CONNECTOR ASSEMBLY TOOLING
tool for crimping shield
Die Retaining Plate
Plunger
Pop-In Die Holder
D I
IE NSTALLATION
1. The tool must be in the fully closed position.
Orient the Movable Die Half so that the
Detent Hole will be in line with the Plunger.
Slide the die into position. See figure #2.
Plunger
2. With the tool in the fully open position, insert
the Stationary Die Half as shown in Figure #3.
Making sure that the die is between the Side
Plates, press down and rotate the die clock-
wise into position.
Die Retaining
Plate
1
Ratchet Handle
Figure # 1
Detent Hole
Figure #2
Stationary Die
Figure # 3
5-21-15 TI214-94-1
