Televes FiberKom 237301 Manual

Transmisor óptico con WDM / Optical transmitter with WDM / Trasmettitore ottico con WDM /
Передатчик оптический с WDM
Ref. 237301
Art. Nr. UOS15501310
Descripción del producto / Product description / Descrizione del prodotto / Описание продукта
1 - Alimentación de red: 99 - 253 V~ / Local mains: 99 - 253
V~ / Alimentazione rete 99-253V~ / Питание от сети:
99 - 253 В~
2 - COM:
1310nm + 1490nm +1550nm.
3 - LED de encendido / Power ON indicator / LED ON / LED
идикатор ВКЛ.
4- GPON (IN SAT): 1310nm + 1490nm.
ES
Transmisor óptico en 1550nm con WDM que permite mezclar
otras longitudes de onda en la misma red óptica.
EN
1550nm optical transmitter with WDM allowing to mix other
wavelengths in the same optical network.
2 3
1

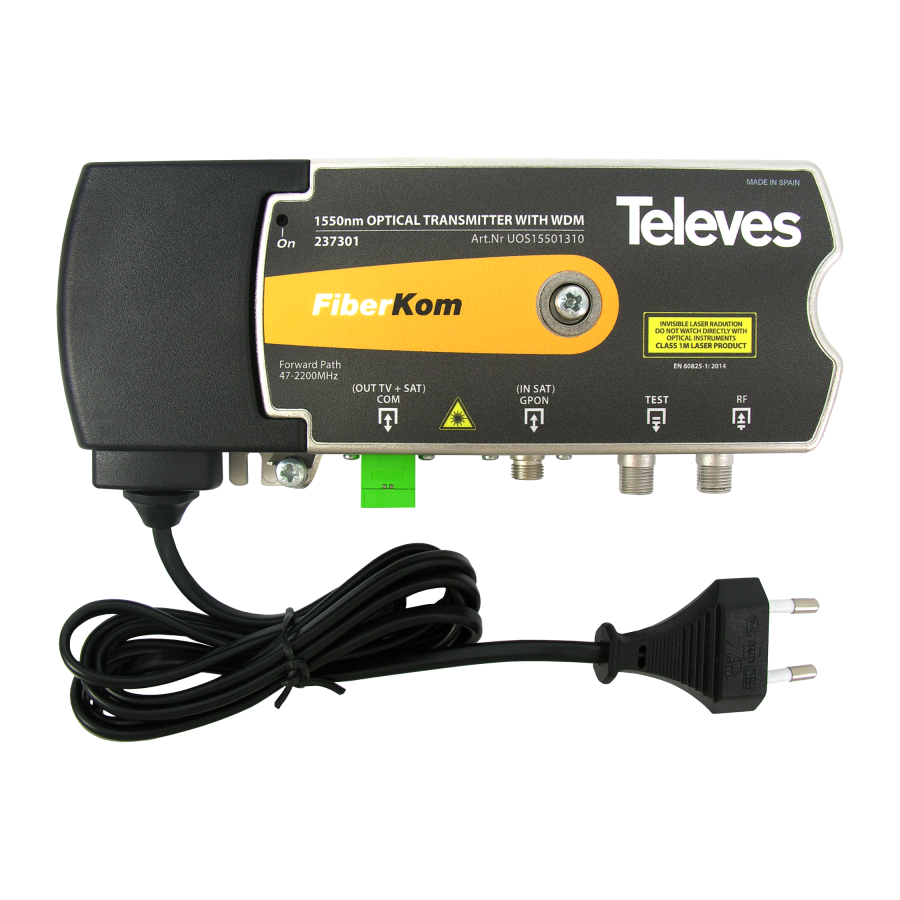

1550nm OPTICAL TRANSMITTER WITH WDM
Art.Nr UOS15501310
237301
1550nm OPTICAL TRANSMITTER WITH WDM
Art.Nr UOS15501310
237301
Forward Path
47-2200MHz
(OUT TV + SAT)
COM
Forward Path
47-2200MHz
(OUT TV + SAT)
COM
8
5 - Indicador de nivel óptico / Optical level indicator /
6 - OMI test point / Toma test OMI / Porta test OMI /
7 - Entrada RF / RF Input / Ingresso RF / ВЧ вход.
8 - Toma de tierra / Ground / Massa a terra / Заземление.
IT
Trasmettitore ottico a 1550nm con WDM che permette misce-
lare altre lunghezze d'onda sulla stessa rete ottica.
РУС
Oптический передатчик 1550 нм с WDM, позволяющий
добавлять другие длины волн в одну оптическую сеть.
4 5 6 7
MADE IN SPAIN
MADE IN SPAIN
INVISIBLE LASER RADIATION
DO NOT WATCH DIRECTLY WITH
OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
EN 60825-1: 2014
(IN SAT)
GPON TEST RF
INVISIBLE LASER RADIATION
DO NOT WATCH DIRECTLY WITH
OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
EN 60825-1: 2014
(IN SAT)
GPON TEST RF
Indicatore di livello ottico / Индикатор оптического
уровня.
(green) +6 dBm
Тестовая точка OMI.
Optical fiber
