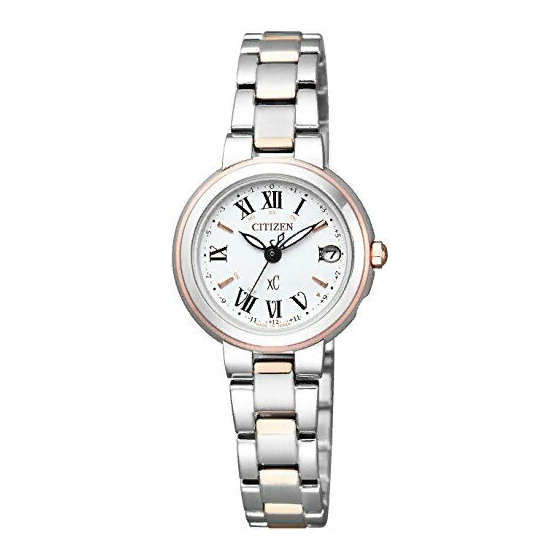

Citizen H060 Abbreviated Instruction

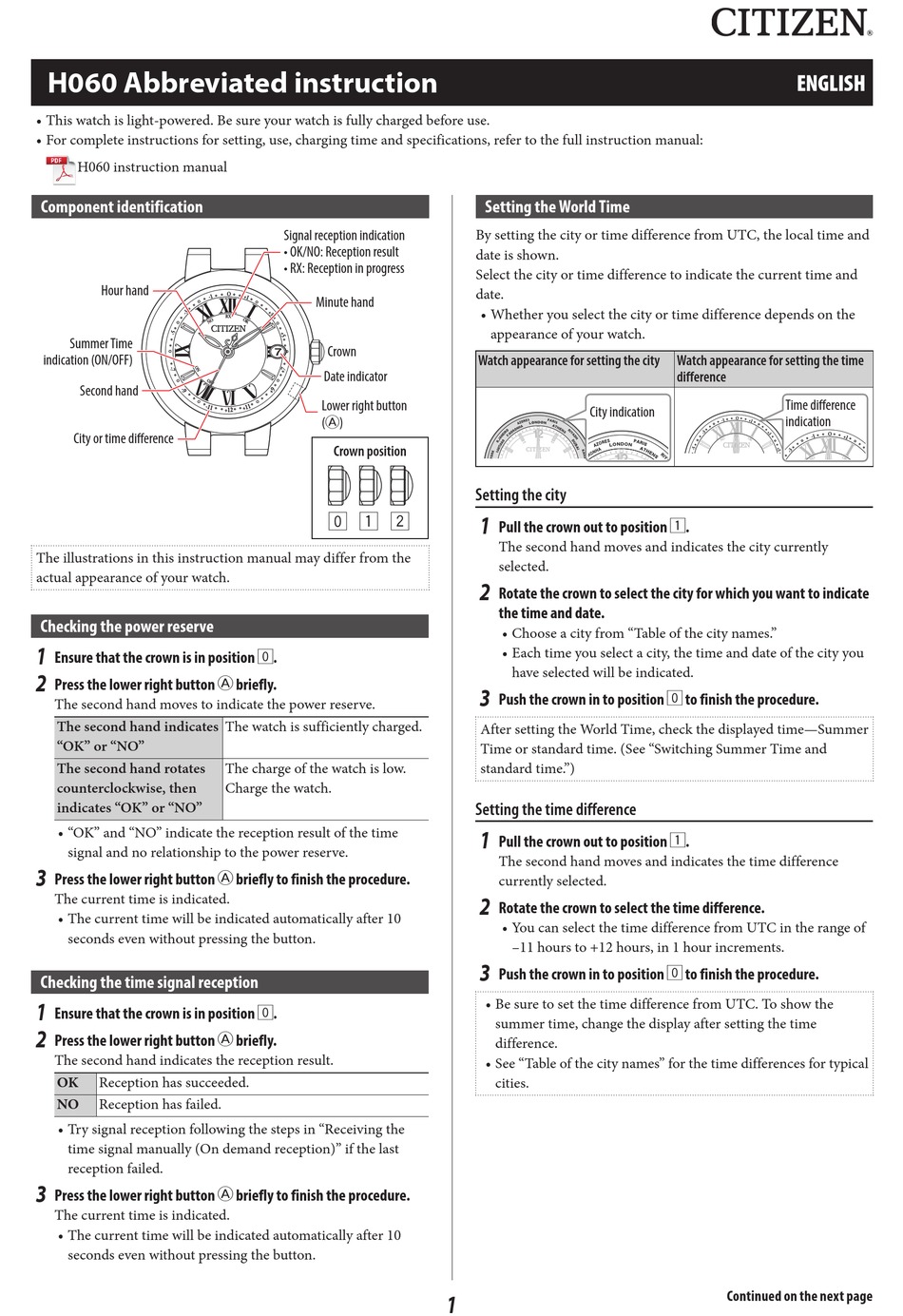

H060 Abbreviated instruction
• This watch is light-powered. Be sure your watch is fully charged before use.
• For complete instructions for setting, use, charging time and specifications, refer to the full instruction manual:
H060 instruction manual

Component identification

Hour hand
Summer Time
indication (ON/OFF)
Second hand
City or time difference
The illustrations in this instruction manual may differ from the
actual appearance of your watch.

Checking the power reserve

1
Ensure that the crown is in position 0 .
2
Press the lower right button A briefly.
The second hand moves to indicate the power reserve.
The second hand indicates
"OK" or "NO"
The second hand rotates
counterclockwise, then
indicates "OK" or "NO"
• "OK" and "NO" indicate the reception result of the time
signal and no relationship to the power reserve.
3
Press the lower right button A briefly to finish the procedure.
The current time is indicated.
• The current time will be indicated automatically after 10
seconds even without pressing the button.

Checking the time signal reception

1
Ensure that the crown is in position 0 .
2
Press the lower right button A briefly.
The second hand indicates the reception result.
OK Reception has succeeded.
NO Reception has failed.
• Try signal reception following the steps in "Receiving the
time signal manually (On demand reception)" if the last
reception failed.
3
Press the lower right button A briefly to finish the procedure.
The current time is indicated.
• The current time will be indicated automatically after 10
seconds even without pressing the button.
Signal reception indication
• OK/NO: Reception result
• RX: Reception in progress
Minute hand
Crown
Date indicator
Lower right button
(A)
Crown position
0 1 2
The watch is sufficiently charged.
The charge of the watch is low.
Charge the watch.

Setting the World Time

By setting the city or time difference from UTC, the local time and
date is shown.
Select the city or time difference to indicate the current time and
date.
• Whether you select the city or time difference depends on the
appearance of your watch.
Watch appearance for setting the city
City indication

Setting the city

1
Pull the crown out to position 1 .
The second hand moves and indicates the city currently
selected.
2
Rotate the crown to select the city for which you want to indicate
the time and date.
• Choose a city from "Table of the city names. "
• Each time you select a city, the time and date of the city you
have selected will be indicated.
3
Push the crown in to position 0 to finish the procedure.
After setting the World Time, check the displayed time—Summer
Time or standard time. (See "Switching Summer Time and
standard time. " )

Setting the time difference

1
Pull the crown out to position 1 .
The second hand moves and indicates the time difference
currently selected.
2
Rotate the crown to select the time difference.
• You can select the time difference from UTC in the range of
–11 hours to +12 hours, in 1 hour increments.
3
Push the crown in to position 0 to finish the procedure.
• Be sure to set the time difference from UTC. To show the
summer time, change the display after setting the time
difference.
• See "Table of the city names" for the time differences for typical
cities.
1
ENGLISH
Watch appearance for setting the time
difference
Time difference
indication
Continued on the next page
