www.mpsaet.com

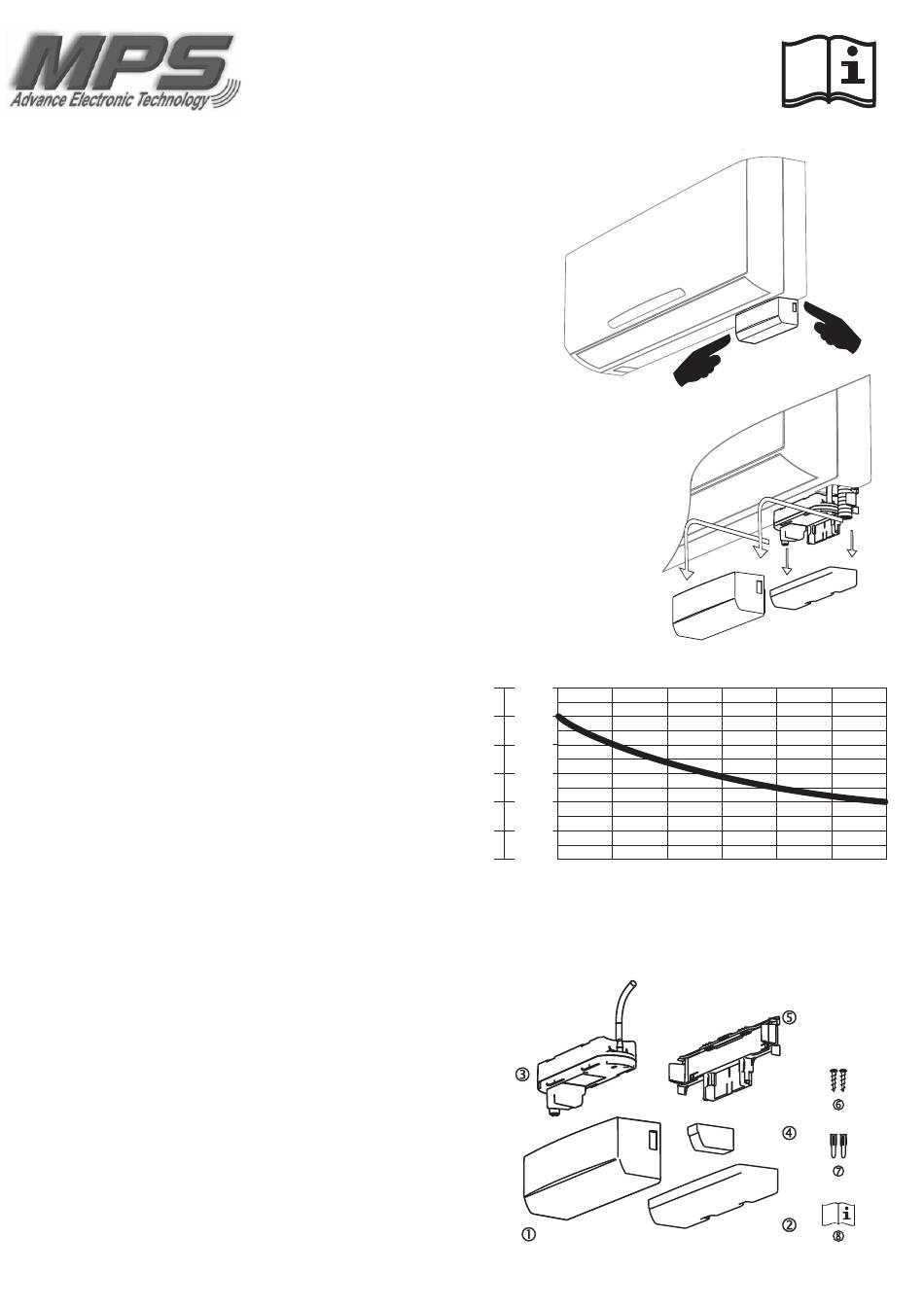

Introduction
The Astro Condensate Pump is intended to be wall mounted
underneath wall mounted air handlers. The Astro features a clip-on
removable cover, condensate collection tray and washable filter
which can be easily accessed for periodic inspection and servicing.
The fully automatic level sensing pump module (fixed) can also be
easily accessed for periodic inspection and cleaning.
Specification
• Power supply: 230V AC 50Hz
• 13W max. 0.44W standby.
• 1PH 50 Hz
• 3A volt-free Alarm wires, N/O contacts
• Class I appliance
IP30
• CE marked
• Thermally protected. Reset 50
• Encapsulated Electronics
• Fuse 1A min, 3A max.
• Maximum water temperature: 40ºC
• Discharge tube: 6mm i/d. max length 60M
• Pumping Performance: See Chart.
• Dimensions 211 x 68.5 x 59.5 mm.
2 Year Warranty:
This product has been fully tested and is certified to be free of any
faults. Provided it is installed in a professional manner in accordance
with these instructions it will give long and reliable service. If any fault
develops check first the fault-finding section of this leaflet. If the
product fails within 2 years of installation, due to a defect in either
materials or manufacture, then it will be replaced or repaired by the
manufacturer, provided it can be clearly shown that it has been
installed, maintained and used as shown in these instructions. No
liability can be accepted under any circumstances for any
consequential loss or damage, arising from the use of this product.
The user must ensure that this product is suitable for use in the
intended application, and in the manner in which it is installed and
used.
In The Box

Cover
Water collection Tray
Astro Pump Module
Washable Filter
&
Wall Bracket
2 x Fixing Screws
!
2 x Wall Fixing Plugs
Instructions
Æ
Note. You will need sufficient 6mm I.D. PVC Discharge
tubing.
Astro
Advanced Electronic Condensate Removal Pump
Installation and Service Manual
ºC
Btu
Kw
L/hr
60
18
12
E3
10
50
15
E3
8
40
12
E3
30
9
6
E3
20
6
4
E3
10
3
2
E3
1
Equivalent
DISCHARGE HEAD IN METRES
Cooling
Capacity
LIT-2031
Pumping Performance
2
3
4
5
6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Astro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MPS Astro

  • Page 1 Advanced Electronic Condensate Removal Pump Installation and Service Manual Introduction The Astro Condensate Pump is intended to be wall mounted underneath wall mounted air handlers. The Astro features a clip-on removable cover, condensate collection tray and washable filter which can be easily accessed for periodic inspection and servicing.
  • Page 2: Risk Of Electric Shock

    SAFETY: READ THIS BOOKLET before installation of this product. Installation is to be carried out only by competent Engineers. Retain this booklet as it contains important information for the safe and proper use of this product. All electrical wiring must comply with National and Local Electrical Codes. This product complies with the European Directive on Low Voltage Safety, and contains components designed to promote compliance with the European EMC Directive.
  • Page 3 It must not be connected to supply feeds from inverters. IMPORTANT: This diagram is an example of how the pump could be installed and is therefore for reference Astro Cable Connections only. All pump units must be installed by qualified Colour Connection engineers, who have assessed the set-up of the individual a/c unit.
  • Page 4 Installing Insert and slide to lock pump module into position. Remove Suction Protection Cap. Fit the Filter to the collection tray and slide tray up to clip into position. Make sure the end of the drain hose is within the tray and ensure flow is unrestricted.
  • Page 5: Contact Details

    Evaporator Cleaning Do not allow cleaning chemicals to be collected and pumped by the Astro. During cleaning, remove the collection tray and collect waste in a separate vessel. before re-fitting the collection Flush with clean water tray.
  • Page 6 Sistema avanzado para evacuación de condensados Manual de instalación y servicio Introdución La bomba de condensados Astro ha sido diseñada para la Instalación debajo de las unidades interiores de Aire Acondicionados instalados en pared ,a la derecha o izquierda. Provista de detalles como su cubierta facilmente extraíble con sistema seguro de Clips.Su bandeja de condensado y filtro se pueden limpiar...
  • Page 7: Riesgo De Descarga Eléctrica

    SEGURIDAD: LEA ESTE MANUAL antes de la instalación de este producto La instalación solo debe realizarse por personal cualificado Conserve este manual,contiene información importante para el uso correcto y seguro de este producto. La instalación eléctrica debe cumplir con las normativas eléctricas nacionales y locales vigentes. Este producto cumple con las directivas de seguridad europeas de bajo voltaje y contiene componentes diseñados para promover El cumplimiento de las directivas europeas EMC.
  • Page 8 Conexiones POWER Asegúrese de que la alimentación eléctrica esté ALIMENTACION desconectada pase el cable a través de la unidad interior y ALIMENTAZIONE Pump PUISSANCE conecte los cables.La alimentación a la bomba debe STROMVERSORGUNG: incorporar interrupción para posibilitar la total desconexión de Control 230V 50HZ los polos.Instale un fusible de 3A en linea.
  • Page 9 Instalación Inserte y deslice el módulo de la bomba hasta que quede anclado.. Quite el tapón protector del pibote de succión. Coloque el filtro y deslice la bandeja colectora hasta quedar anclada con el clip de fijación. Asegúrese de que el tubo de drenaje está dentro de la bandeja y que la salida de agua no esté...
  • Page 10 Mantenimiento Lave y limpie la bandeja colectora y el filtro con un limpiador anti-bacterias y enjuague con agua limpia. Frote suavemente el sensor con un paño suave de algodón. Limpieza del evaporador No permita que agentes quçimicos de limpieza entren en la bandeja colectora de la bomba.
  • Page 11 Advanced Electronic Condensate Removal Pump Installation und Service Manual Anleitung Die Astro Kondensat Pumpe ist für eine Installation mit Wandbefestigung unterhalb der Klimaanlage bestimmt . Die Astro hat viele Vorteile,Äusseres Gehäuse ist einfach mit Zwei Clips zu entfernen.Der elektronische Sensor (fixiert) hat ein einfaches Zugreifen für periodische...
  • Page 12 SICHERHEITSVORSCHRIFTEN: LESEN SIE DIESE BETRIEBSANLEITUNG vor der Installation dieses Produktes. Die Installation dieser Pumpe darf nur von fachkundigen Technikern übernommen werden. Es ist empfehlenswert diese Anleitung aufzubewaren da wichtige Informationen über Sicherheit und korrekte Installation enthalten sind. Alle elektrischen Anschlüsse nur von kompetenten Fachleuten durchführen . Alle elektrischen Anschlüsse müssen mit den Nationalen und Lokalen elektrischen Codes übereinstimmen.
  • Page 13 Pumpe installiert werden kann und dient daher nur als sein. Referenz. Alle Pumpen müssen von qualifizierten Fachleuten installiert werden die sich gut bewertet haben in der Installierung der einzelnen Klimageräte. Astro Kabelanschlüsse Drahtfarbe Verbindung BRAUN L / SPANNUNG / LINE 1...
  • Page 14 Installierung Fügen Sie das Pumpemodul ein und schieben es in die Wanpdlatte bis es mit dem Clip gesichert ist. Entfernen Sie die Schutz Kappe von der Saugsaule. IDen Filter in den Wasserbehälter Installieren. Klicken Sie den Wasserbehälter in Position. Versichern Sie dass der Drainagesschlauch in dem Wasserbehälter ist.
  • Page 15: Fehlersuche

    Service Waschen Sie den Filter und den Wasserbehälter mit einem antibakterischen Mittel und spühlen Sie mit sauberem Leitungwasser. Reinigen sie die Sensoren vorsichtig mit einem weichen Tuch. Bei der Reinigung des Verdampfers der Klimaanlage müssen Sie aufpassen dass keine chemikalischen Mittel in den Pumpen Wasserbehälter kommt und gepumpt wird.
  • Page 16 Advanced Electronic Condensate Removal Pump Manuale d'Installazione e Servizio Introduzione La Pompa Scarico Condensa ASTRO è stata progettata per l'installazione sotto i condizionatori a parete ASTRO comprende un coperchio a scatto, una vaschetta raccolta condensa ed un filtro lavabile di facile accesso per ispezione e manutenzione periodica.
  • Page 17 SICUREZZA : LEGGERE QUESTO LIBRETTO prima dell'installazione di questo prodotto L'installazione deve essere fatta solo da tecnici competenti. Conservare questo libretto che contiene informazioni importanti per la sicurezza ed il buon uso di questo prodotto. Tutti i cablaggi devono essere conformi con i Codici Elettrici Locali e Nazionali Questo prodotto è...
  • Page 18 è solo collegata alle alimentazioni elettriche degli inverter. di riferimento. Le pompe devono essere installate da tecnici qualificati che hanno stabilito il posizionamento Connessione Cavi di ASTRO di ciascuna unità A/C Colore Collegamento...
  • Page 19 Installazione Inserire e far scivolare il modulo pompa per bloccarlo nella giusta posizione Rimuovere il tappo di protezione di aspirazione Adattare il filtro alla vaschetta di raccolta e far scivolare la vaschetta per fissarlo Assicurarsi che la fine del tubo di scarico finisca nella vaschetta e che il flusso sia libero.
  • Page 20 Strofinare delicatamente i sensori con un panno morbido. Pulizia dell'Evaporatore Evitare la raccolta ed il pompaggio da parte di ASTRO di prodotti chimici. Durante la pulizia togliere la vaschetta di condensa e raccogliere i suddetti prodotti in un altro recipiente.
