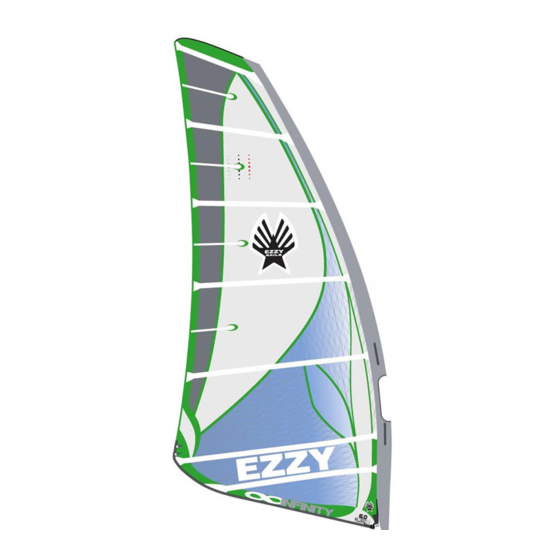

Infinity Ezzy Sails Quick Start Manual

Rigging with the split (side by side) batten.

1) Roll out the sail, insert the foot batten and tension it.
Quick Tip: It is easier to insert and tension the foot batten before inserting the mast.
2) Slide the mast through the luff sleeve (see diagram
1).
Note: When rigging with the cam, slide the mast above
the cam (do not attach the cam yet.)
3) Attach the mast extension with no downhaul tension;
just cleat the downhaul line .
Quick Tip: It is easier to attach your boom onto the mast
when there is no downhaul tension.
4) Attach the boom and outhaul the sail until it is flat in
the boom area.
Quick Tip: Attach your boom at, or below the center of
the boom cut-out to prevent the top of the boom cut-out
from getting caught on the boom while downhauling.
(To rig the Transformer without the cam, skip step #5)
5) Attach the cams to the mast by pushing down on the
batten with the palm of your hand, approximately 12"
(30cm) from the luff sleeve, and snap the cam onto the
mast with your other hand (see diagram 2).
Quick Tip: If the cams are difficult to put on the mast,
check that the batten tension webbing is loosened until
the Velcro touched the buckle (see diagram 3). This will
allow the cam to slide further into the sail and will make it
Ezzy Sails Rigging and Tuning for the 1995 Transformer Wave
Ezzy Sails Rigging and Fine Tuning Guides
1995 Transformer
2.8 - 5.9
Rigging &
Fine Tuning Guide
Page 1
