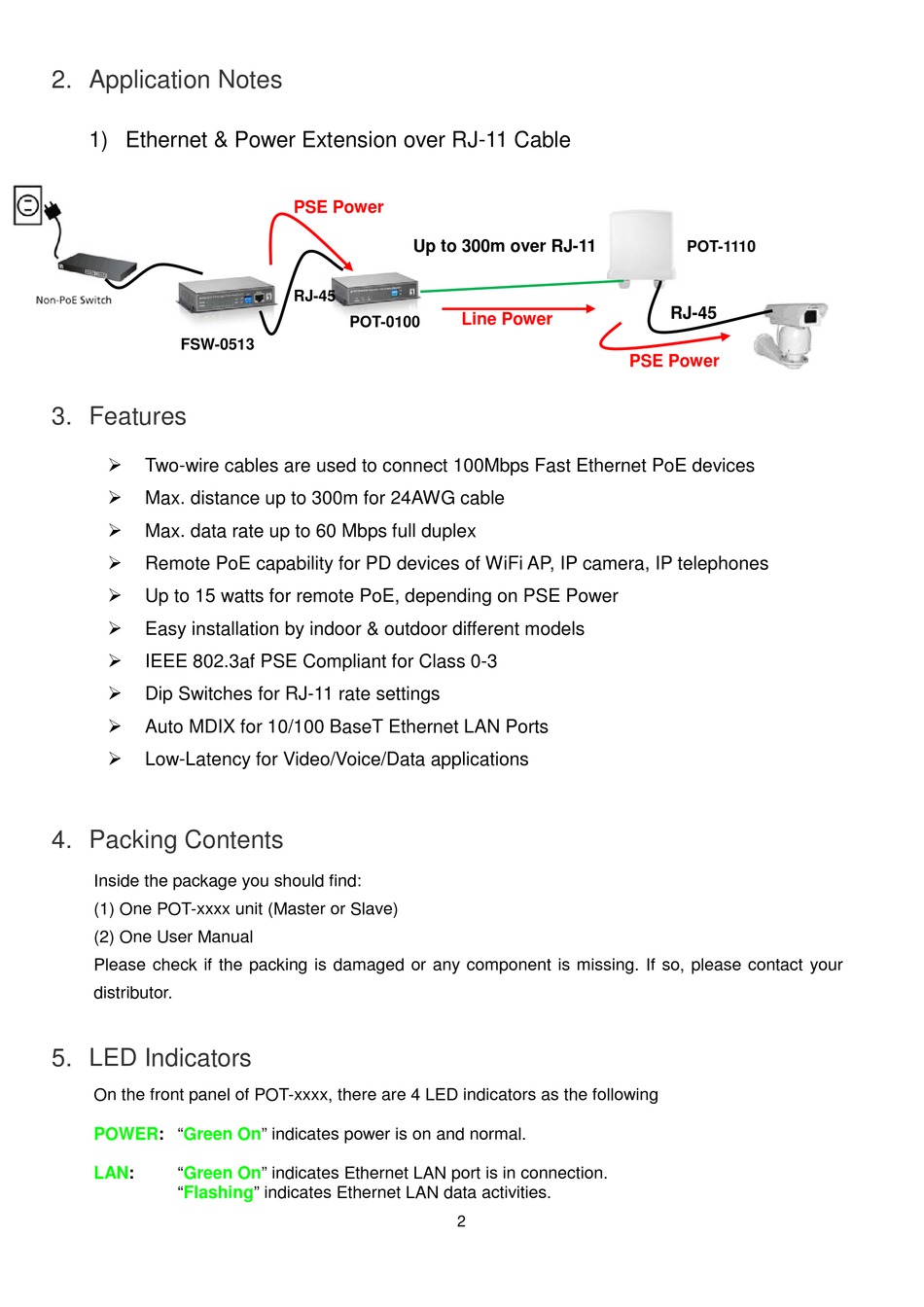

2. Application Notes

1) Ethernet & Power Extension over RJ-11 Cable
FSW-0513

3. Features


Two-wire cables are used to connect 100Mbps Fast Ethernet PoE devices

Max. distance up to 300m for 24AWG cable

Max. data rate up to 60 Mbps full duplex

Remote PoE capability for PD devices of WiFi AP, IP camera, IP telephones

Up to 15 watts for remote PoE, depending on PSE Power

Easy installation by indoor & outdoor different models

IEEE 802.3af PSE Compliant for Class 0-3

Dip Switches for RJ-11 rate settings

Auto MDIX for 10/100 BaseT Ethernet LAN Ports

Low-Latency for Video/Voice/Data applications

4. Packing Contents

Inside the package you should find:
(1) One POT-xxxx unit (Master or Slave)
(2) One User Manual
Please check if the packing is damaged or any component is missing. If so, please contact your
distributor.

5. LED Indicators

On the front panel of POT-xxxx, there are 4 LED indicators as the following
POWER: "Green
LAN: "Green
"Flashing" indicates Ethernet LAN data activities.
PSE Power
RJ-45
POT-0100
On" indicates power is on and normal.
On" indicates Ethernet LAN port is in connection.
Up to 300m over RJ-11
Line Power
2
POT-1110
RJ-45
PSE Power
