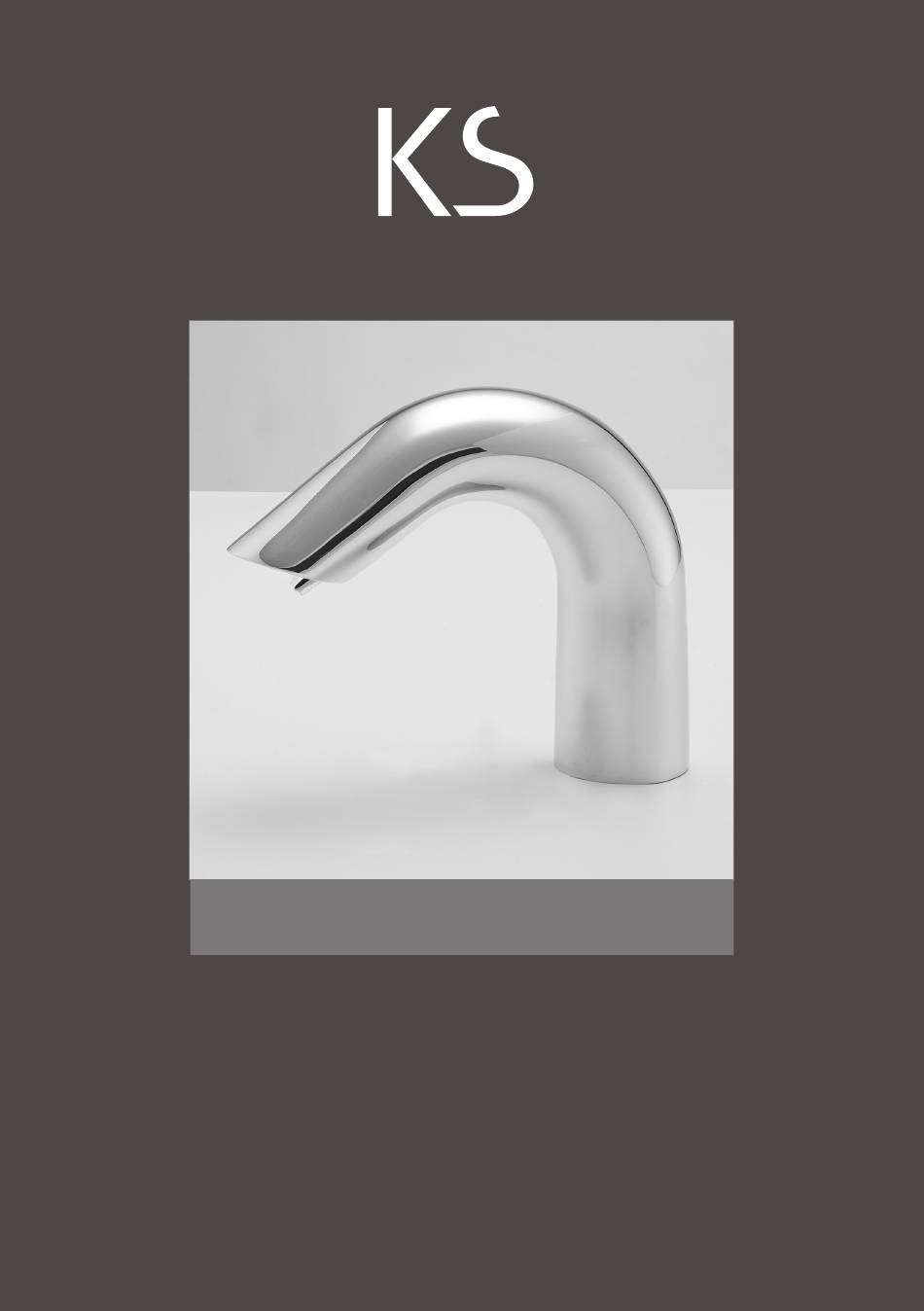

- Page 1 BAIONA N SOAP DISPENSER BAIONA N ESPUMA FOAM DISPENSER TOUCH FREE DECK MOUNTED SOAP DISPENSERS I N S T A L L A T I O N A N D M A I N T E N A N C E G U I D E I N S T A L L A T I O N A N D M A I N T E N A N C E G U I D E...
-
Page 2: Technical Data
INDEX TECHNICAL DATA TECHNICAL DATA PRE-INSTALLATION INFO PACK CONTENTS - INDIVIDUAL SOAP/FOAM DISPENSERS INSTALLATION - INDIVIDUAL SOAP/FOAM DISPENSERS AND MULTIFEED MODELS FILLING THE SOAP TANK - INDIVIDUAL SOAP/FOAM DISPENSERS PACK CONTENTS - TOP FILLING PROFESSIONAL SYSTEM KIT KSL00927 KSL00932 BAIONA N SOAP DISPENSER BAIONA N ESPUMA FOAM DISPENSER 11-12 INSTALLATION - TOP FILLING PROFESSIONAL SYSTEM KIT... -
Page 3: Pre-Installation Info
PACK CONTENTS PRE-INSTALLATION INFO LIQUID SOAP DISPENSER Familiarize yourself with the part names and ensure that all the parts are Check contents included in your package. Separate all parts from the packaging and check each part with the “Pack contents” section. Make sure all parts are accounted for before diצשscarding any packaging material. - Page 4 PACK CONTENTS PACK CONTENTS FOAM SOAP DISPENSER PS SOAP DISPENSER Familiarize yourself with the part names and ensure that all the parts are Familiarize yourself with the part names and ensure that all the parts are included in your package. included in your package.
-
Page 5: Installation
INSTALLATION INSTALLATION STEP 1 – PREPERATION FOR LIQUID SOAP DISPENSER MODELS Connect the soap tube extending from the soap Drill a hole (26-29 mm) at the designated installation dispenser body to the quick connector at the location of the foam soap dispenser body. top of the soap dispenser pump assembly by snapping it in. -
Page 6: Filling The Soap Tank
FILLING THE SOAP TANK INSTALLATION Insert the MF soap dispensers’ pipes to Unscrew the soap tank from the pump assembly the holes in the soap tank cap. Ensure the and pull it out from the bottle support. soap pipe reaches the bottom of the soap tank and is not bent or curved. - Page 7 PACK CONTENTS INSTALLATION TOP FILLING PROFESSIONAL SYSTEM KIT TOP FILLING PROFESSIONAL SYSTEM KIT Familiarize yourself with the part names and ensure all the parts are included in your package. Drill a hole in the deck or lavatory according to the top 1 X TOP FILLING KIT filling kit recommended hole 35.2...
- Page 8 FILLING THE INSTALLATION TOP FILLING PROFESSIONAL SYSTEM KIT TOP FILLING PROFESSIONAL SYSTEM KIT SOAP TANK STEP 1 - FILLING THE SOAP TANK If needed, cut the corrugated soap tube to the correct length as required by the installation. Fill the soap tank with liquid soap Ensure the tube fully covers the until it is full.
-
Page 9: Remote Control Functions
REMOTE CONTROL FUNCTIONS REMOTE CONTROL FUNCTIONS LIQUID SOAP DISPENSERS FOAM SOAP DISPENSERS If available, the soap dispenser remote control can adjust the dispenser’s settings. To If available, the foam dispenser remote control can adjust the dispenser’s settings. To use the remote control hold it in front of the sensor at a distance of use the remote control hold it in front of the sensor at a distance of 10-15cm (4-6”). -
Page 10: Maintenance
BATTERY REPLACEMENT FOR LIQUID SOAP DISPENSER MAINTENANCE Battery models only Care and cleaning of chrome and special finishes When the battery weakens, the LED indicator light will blink at a constant rate when the DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or their like. user’s hands are within the sensor range. -
Page 11: Limited Warranty
TROUBLESHOOTING LIMITED WARRANTY Indication Investigation Cause Solution Illustration KASSEL SANITÄR S.L. warrants that its electronic products will be free of defects False Continuous AUX connector The connector should be inserted fully in material and workmanship during normal use for two years from the date the activation: discharge from the not fully inserted... - Page 12 TROUBLESHOOTING TROUBLESHOOTING Indication Investigation Cause Solution Illustration Indication Cause Solution Illustration Soap/ Pump is Sensor is AUX connector not The connector should be inserted Foam not dispensing Liquid rather than 1. Increase the air to soap Foam not not making blinking fully inserted fully until the white o-ring is...
- Page 13 KSL01210 03/2020 Kassel Sanitär S.L. • Avda. de Castilla, 1 - Polígono Industrial, 28830 San Fernando de Henares, Madrid, Spain • Daimlerstraße 2, D-93133 Burglengenfeld, Germany Tel. +34 916 778 993 | Fax. +34 916 777 774 | info@kassel.es | www.kassel.es...
