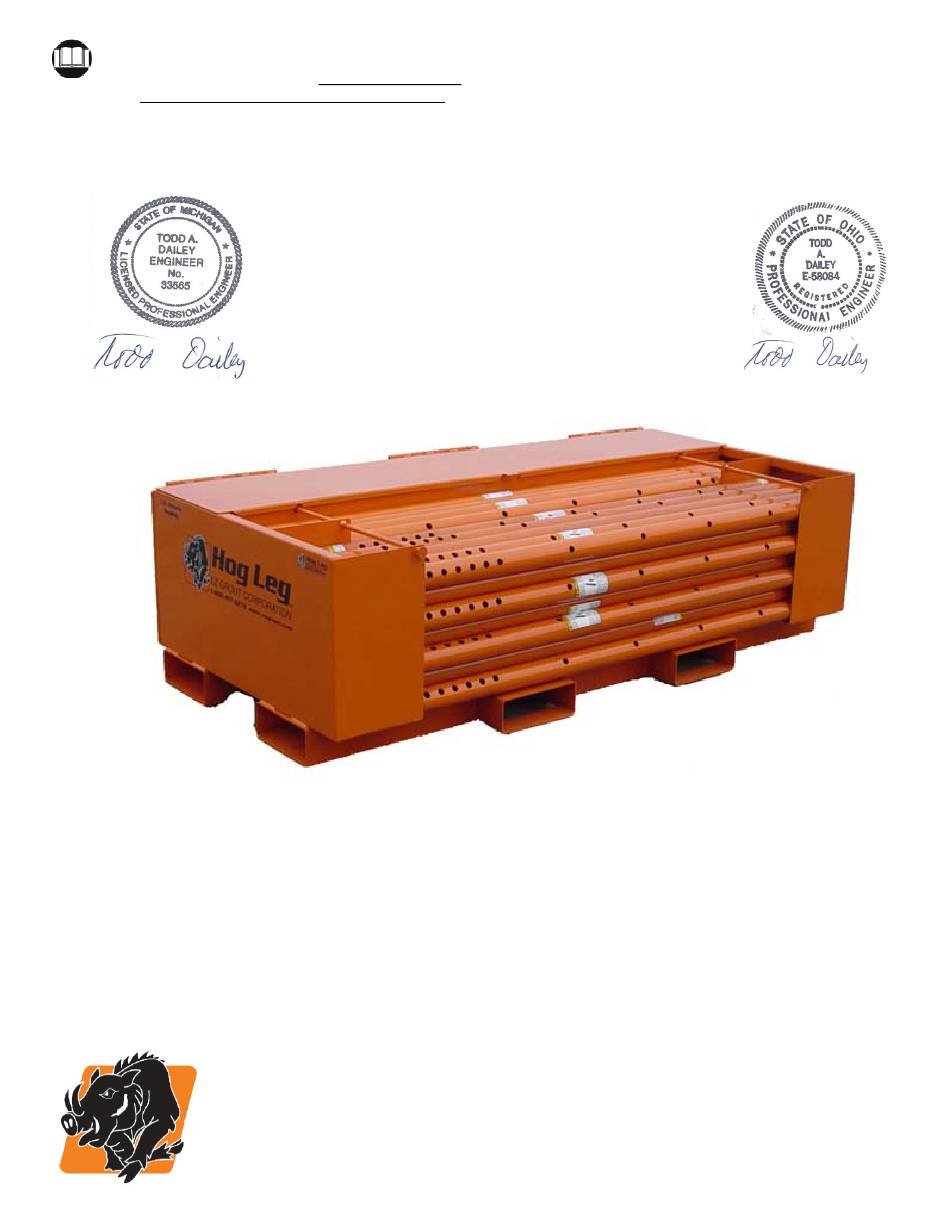

©Copyright 2014
www.ezgmfg.com
®
Before using this HOG LEG
, study and understand
entire Owner's Manual and Standard Practice for
Bracing Masonry Walls Under Construction..
Serial Number_______________
HOG LEG
®
Wall Bracing
Owner's Manual
Rev. No. 014
01/01/2014-Present
EZG Manufacturing
1833 N. Riverview Road
Malta, Ohio 43758
Hog Leg
®
1-800-417-9272
EZG Manufacturing
Fax (740) 962-2037
1-800-417-9272
www.ezgmfg.com
Advertisement
Table of Contents
Related Manuals for EZG Hog Leg
Summary of Contents for EZG Hog Leg
- Page 1 ©Copyright 2014 www.ezgmfg.com ® Before using this HOG LEG , study and understand entire Owner’s Manual and Standard Practice for Bracing Masonry Walls Under Construction.. Serial Number_______________ HOG LEG ® Wall Bracing Owner’s Manual Rev. No. 014 01/01/2014-Present EZG Manufacturing 1833 N.
-
Page 2: Table Of Contents
Kit Overview………………………………………………………………………………………4 Kit Overview………………………………………………………………………………………5 Installation Instructions........................6 Installation Instructions........................7 Spacing of Braces..........................8 Installation of Hog Leg Without Kicker..................9 Installation of Hog Leg With Kicker.....................10 Installation of Hog Leg With Guide Wires...................11 Warranty……………………………………………………………………………..…………..12 Warranty Registration……………………………………………………………………………13 Installation Height Charts......................14-17 Rev. No. 014 01/01/2014-Present... -
Page 3: Introduction
Congratulations on purchasing one of the finest pieces of masonry equipment on the market today! If this is your first EZG Manufacturing product, you will not be disappointed. If you have previously owned an EZG Manufacturing product you will find the same high quality and dependability that you have come to expect from EZG Manufacturing. -
Page 4: Safety Precautions
The Hog Leg® Wall Brace System is designed to brace a masonry wall built in accordance with the Standard Practice for Bracing Masonry Walls Under Construction. A minimum of two (2) braces per wall panel are required, located 20% of wall length from each end of the panel. -

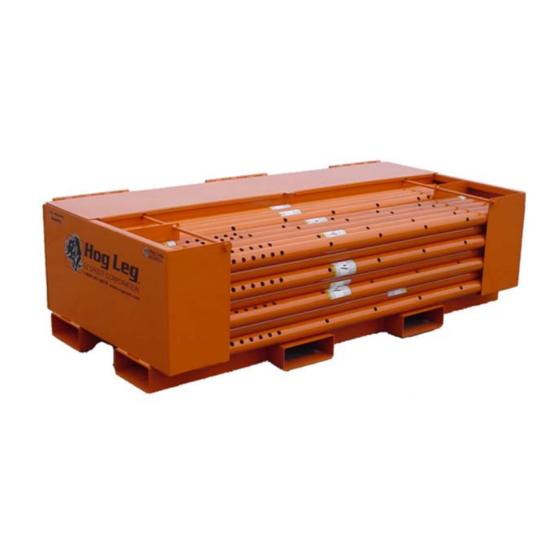

Page 5: Kit Overview
©Copyright 2014 www.ezgmfg.com... -
Page 6: Kit Overview
©Copyright 2014 www.ezgmfg.com Rev. No. 014 01/01/2014-Present... -
Page 7: Kit Overview
©Copyright 2014 www.ezgmfg.com... -
Page 8: Installation Instructions
Leg® Extension to Wall Bracket. Then add Hog Leg® Extensions until reaching proper anchor location. 1) Align the holes in the end of the Hog Leg® Extension with the holes in the Wall Bracket and use the Hitch Pin (09- 403) and Safety Clip (09-400) to attach as shown in Detail A. -
Page 9: Installation Instructions
3) Continue adding Hog Leg® Extensions as shown in Detail B until the desired length is obtained. To locate where to pour the deadman for the base of the Hog Leg®, take the height of the brace installation and multiply by 0.75. Example: Brace Height of 16 feet x 0.75 = Brace Run of 12 feet from... -
Page 10: Spacing Of Braces
©Copyright 2014 www.ezgmfg.com Rev. No. 014 01/01/2014-Present... -
Page 11: Installation Of Hog Leg Without Kicker
©Copyright 2014 www.ezgmfg.com Wall Height Refer to charts located in this manual as well as the most recent copy of Standard Practice for Bracing Masonry Walls Under Construction. Brace Height Brace Run Brace Length Brace Height Brace Run Brace Length 10'-4"... -
Page 12: Installation Of Hog Leg With Kicker
©Copyright 2014 www.ezgmfg.com Wall Height Refer to charts located in this manual as well as the most recent copy of Standard Practice for Bracing Masonry Walls Under Construction. Brace Brace Kicker Brace Brace Kicker Height Brace Run Length Height Height Brace Run Length Height... -
Page 13: Installation Of Hog Leg With Guide Wires
©Copyright 2014 www.ezgmfg.com... -
Page 14: Warranty
System the Mud Hog Hydraulic Mixing Station, the Hog Trough mud pan, the Hog ® ® Cart™, the Hog Slopper™, the Booger Hog® Wall Scrubber, the Hog Leg Wall ® Brace System, the Hog Crusher™ Material Recycling System, and the EZG MIXER ®... -
Page 15: Warranty Registration
WARRANTY PROVISIONS OF THIS MACHINE ARE HANDLED DIRECTLY THROUGH THE MANUFACTURER. EZG MANUFACTURING * 1833 North Riverview Road, Malta, OH 43758 * PHONE 1-800-417-9272 * Email: warranty@ezgmfg.com * FAX 740-962-2037 Please take a minute to fill out the survey below so that we can better serve our customers. -
Page 16: Installation Height Charts
CMU with a minimum f’m=1500psi Properly sized deadmen. NOTE: EZG Manufacturing strongly recommends both low lift grouting as the wall is being laid up and embedded deadmen. ©Copyright 2014 www.ezgmfg.com Rev. No. 014... - Page 17 400 Feet No Kicker 30'-0" 18'-4" 13'-9" 22'-11" ----------- 200 Feet 400 Feet No Kicker 32'-0" 20'-4" 15'-3" 25"-5" 4'-6" 112.5 Feet 400 Feet w/Kicker For use with the EZG Manufacturing HOG LEG® Wall Bracing System ONLY 01/01/2014-Present Rev. No. 014...
- Page 18 100 Feet 200 Feet w/Guide 44'-0" 27'-8" 20'-9" 34'-7" 6'-1" 87.5 Feet 162.5 Feet w/Guide 46'-0" 29'-8" 22'-3" 37'-1" 6'-6" 87.5 Feet 162.5 Feet w/Guide For use with the EZG Manufacturing HOG LEG® Wall Bracing System ONLY Rev. No. 014 01/01/2014-Present...
- Page 19 87.5 Feet 162.5 Feet w/Guide 46'-0" 29'-0" 21'-9" 36'-3" 6'-5" 87.5 Feet 162.5 Feet w/Guide 48'-0" 31'-0" 23'-3" 38'-9" 6'-10" 62.5 Feet 150 Feet w/Guide For use with the EZG Manufacturing HOG LEG® Wall Bracing System ONLY 01/01/2014-Present Rev. No. 014...
- Page 20 Copyright © 2014 by EZG Manufacturing All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of EZG Manufacturing or EZ Grout Corporation.
