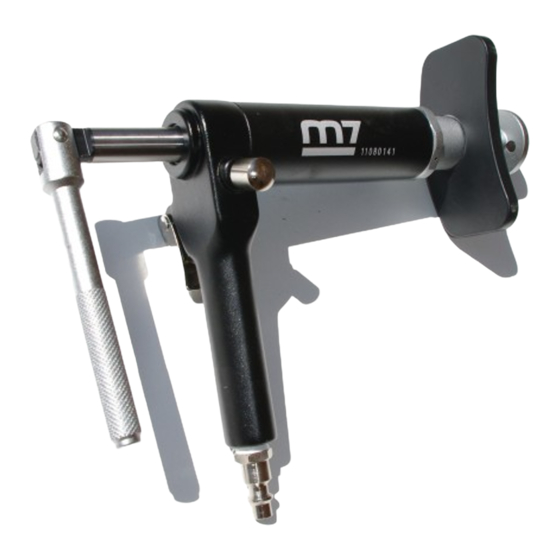

M7 SQ-0217 Quick Start Manual

ATTENTION
IMPORTANT
Always follow the instructions provided by the vehicle manufaturer. For use by
trained personnel only.
To maintain an acceptable noise level, do not exceed 8 bar pressure.
The tool is designed to be used with 5-8 bar pressure.
OPERATION
How to Use
1. Choose an adapter suitable for working on the brake caliper pistion. Fit it onto
magnetic . Connect the tool to the compressed air line, making sure that it
1
does not exceed 8 bar pressure. (Fig.1)
2. Press the release button
forward or backward and fit the tool in to the caliper. adapter
5
3. Press button
4. After pushing the piston backward, press button
the push spindle
2
3
Fig.2
and operate lever
2
and rotating lever
4
backward, releasing the tool from the caliper. (Fig.3)
5
4
to move the push spindle
3
to rotate the brake caliper piston. (Fig.2)
3
and pull lever
2
5
1
Fig.1
Fig.3
to move
3
1
