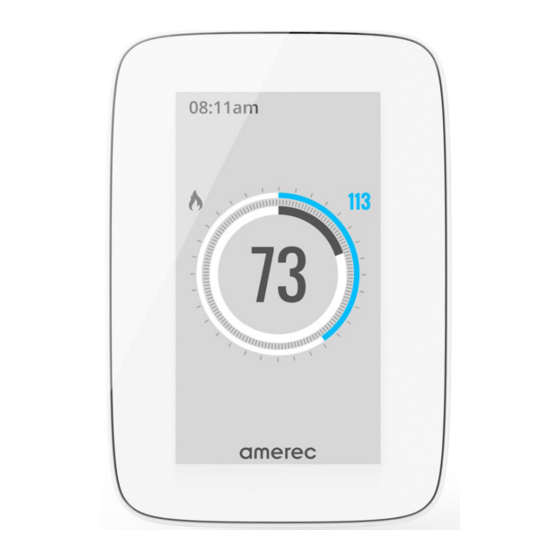

Amerec's A6 control for the AX steamer
generally in or near the steam bath. It may be mounted directly on the wall surface or, using an optional recessed
mounting box, it may be mounted so its touch screen is almost flush with the
wall surface.
Using the A6, you set or adjust the steam bath time and temperature, control
options such as lights and fragrance pumps, and use Warm Start (if installed)
to keep the steamer's water hot between baths so it produces steam more
quickly when the bath is started. Delayed start and calendar start settings
allow you to have a steam bath ready to use in a few hours or on a regular
schedule. Favorites save your preferred settings for later use. WiFi apps give
you wireless control from your Android phone and iPhone or while using a PC.
You can even prevent the steam room from being used during certain time
periods.
Intelligent steam control learns how long it should take your room to reach a
comfortable steam bath temperature then adds this time to your delayed starts
so you set when you want to start your steam bath and the bath will be up to
temperature and ready when you are.
You may use 1 to 3 controls with an AX steamer, including 1 or 2 A6 controls + an A3.
To reduce the risk of damage to the steamer or controls and to ensure the controls connect properly with the
steamer, always turn power off to the steamer before connecting or disconnect a control.
Index
Section
Navigation
Turning Things On and Off
Start Up
Initial Set Up – Tools Menus
Options
Favorites
WiFi
Apps
Available Languages in the A6
Warm Start: Is It Installed?
Mounting the Control
For further assistance, contact
05/12/16
A6 OPERATING INSTRUCTIONS
General
Limits
Additional Settings
System
Recessed Mounting Template
is a touch screen control intended to be mounted on a wall,
4211-146
Page
2
2
3
4
4
5
5
5
6
7
8
8
9
9
10
11
P.O. Box 2258, Woodinville, WA 98072
Phone 1-800-363-0251
1-425-951-1120
Fax
1-425-951-1130
eMail Support@amerec.com
Page 1 of 11
Advertisement
Related Manuals for Amerec A6
Summary of Contents for Amerec A6
- Page 1 You may use 1 to 3 controls with an AX steamer, including 1 or 2 A6 controls + an A3. To reduce the risk of damage to the steamer or controls and to ensure the controls connect properly with the steamer, always turn power off to the steamer before connecting or disconnect a control.
- Page 2 A6 OPERATING INSTRUCTIONS Navigating the A6 Some indicators are used while navigating and setting the control. These are blue when their screen or menus are in view, gray when they are not in use. The Home button: touch this to return to the main screen. Here you will see the current temperature in the steam room, the bath temperature setting, the remaining bath time (if any) and the time of day.
- Page 3 The first time your A6 is turned on, it will need some information loaded and some settings changed. When the power is first turned on, the steamer will take about 30 seconds to start operating before the A6 is turned on. The A6 screen will then light and display the amerec logo, then change to a lit screen with spinning circle showing while it loads its own software.
-
Page 4: Initial Setup
Initial Set-up Once you are ready to use your A6, there are a few things you need to set up. You’ll want to set the normal bath time, the bath temperature, set the temperature readings for °C or °F, turn a few options on or off, and maybe set an access code. -
Page 5: System Menus
A6 OPERATING INSTRUCTIONS Limits menus To set the maximum allowed bath temperature, select Bath temperature. This lets you limit the temperature anyone can set the bath to (no more than 125°F by default). For instance, if you have someone in the family who is sensitive to heat, you may set the limit to 115°F so they cannot accidentally set the bath too hot. - Page 6 A6 OPERATING INSTRUCTIONS Go to Options to set up various options available for use with you steamer. Your AX steamer comes with two options automatically loaded: a room light which always light during the steam bath and remains on for 10 minutes after the bath stops (or can be manually turned on and off) and a dedicated fan control (set-up previously in the Systems menus).
- Page 7 This will save the bath temperature and time and the options you want turned on for you bath. The A6 will let you save a total of eight favorites When you have your bath set up the way you like it, go to the Settings screen then select Save as favorite.
- Page 8 Make sure the Auto connect switch is still enabled (green) then return to the previous screen and make sure WiFi is still enabled. Note: in this screen you can check to see all of the apps and A6 controls which are connected to your system.
- Page 9 Slavic Finnish Swedish Warm Start: Is It Installed? If you enable Warm Start on the A6 and you get a steam tank temperature error when you try to turn on Warm Start for the first time (see Turning Things On on page 2), you’ll need to remove the cover...
-
Page 10: Mounting The Control
Now connect the A6 cable end to the control cable then feed the cables and connector through the hole in the box and into the wall. Now test the A6 before mounting it into the wall! Once mounted, the A6 will be hard to remove! When ready, peel the cover off the back of the adhesive and carefully push the control into the box and hold in place for about 30 seconds to finish mounting the control. - Page 11 A6 OPERATING INSTRUCTIONS Recessed Mounting Box Template Print this page full size. Do not scale to fit page! REMOVE INSIDE SOLID LINE DASHED LINE IS OUTLINE OF HOUSING LIP FROM ROOM SIDE – SHOWN FOR REFERENCE ONLY! 05/12/16 4211-146 Page 11 of 11...
