  • Page 1 Master Owner's Manual Furniture...
  • Page 2 User notice The Table of Contents is an interactive field. Click on the desired section to be taken immediately to the corresponding page.

  • Page 3: Table Of Contents

    Master Owner's Manual The Master Owner's Manual is intended to provide information on Lippert Components Inc.'s most widely- used products. Products described in the Master Owner's Manual may not be on every trailer. The trailer may also have products not included in this manual. All manual information is subject to change without notice.

  • Page 4: Variable Height Table Pedestal

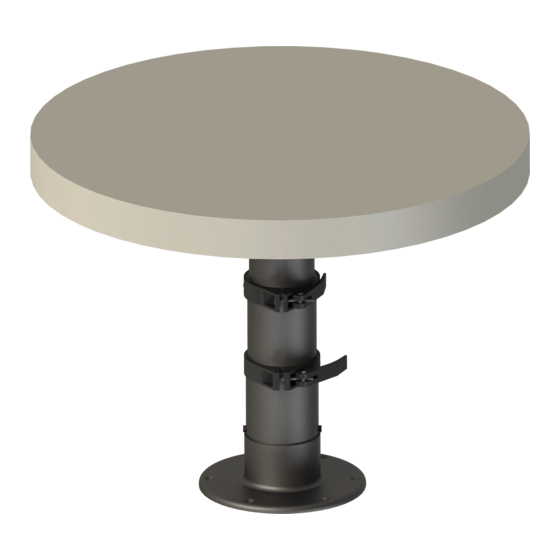

    FURNITURE Introduction The Variable Height Table Pedestal (Fig. 1) has two telescoping cylinders, powered by gas struts, that allow the pedestal height to be adjusted from 13" to 28". The top cylinder extends a maximum of 8 " and the bottom cylinder extends a maximum of 9".

  • Page 5: Minimum Pedestal Heights

    Minimum Pedestal Heights • Both cylinders compressed (Fig. 2). • Bottom cylinder extended, and the upper cylinder compressed (Fig. 3). • Top cylinder extended, lower cylinder compressed (Fig. 4). Fig. 2 Fig. 3 Fig. 4 " " 13" Safety Read and fully understand all instructions before installing and operating this product. Adhere to all safety labels. This manual provides general instructions.

  • Page 6: Operation

    Operation Extending Keep people and pets clear of the table top when raising the Variable Height Table Pedestal. The cylinder extends quickly when the locking collar handle is released. Make sure to push down on the CENTER of the table top. Pushing down on the edge could pull the table top away from the pedestal or crack the table top.

  • Page 7: Adjustment

    Too much weight on the table. Reduce weight on the table. Maintenance The Variable Height Table Pedestal requires very little maintenance. The gas struts are sealed in the cylinders. The only required maintenance involves keeping the columns clean and free of debris. Page 7 Rev: 11.08.19...

  • Page 8: Tri-Fold Sofa

    TRI-FOLD SOFA FURNITURE Introduction Our one-piece, steel frame Tri-Fold Sofa requires no spare mattress to store. In just four simple steps, it transforms into a comfortable bed. Traditional hide-a-beds have uncomfortable mattresses with support bars that can make sleeping uncomfortable. Air mattress hide-a-beds eliminate the support bar issue, but can be damaged more easily and become unusable.

  • Page 9: Safety Information

    Safety Information Moving parts can pinch, crush or cut. Keep clear and use caution. Failure to follow the instructions provided in this manual may result in death, serious injury, unit damage, or voiding of the component warranty. Operation Instructions NOTE: Refer to Fig. 1 for steps 1-5. Remove back cushions from the hook and loop fabric strips and set aside.

  • Page 10: Forest River Dinette Seatback

    FOREST RIVER DINETTE SEATBACK FURNITURE Introduction The modular dinette seatback provides for seating at the dinette or the lounge. The backrest brackets installed on the dinette/lounge cushions provide for placement in two positions, either installed as a dinette backrest or repositioned for use as a lounge backrest. Brackets to hold the backrest are installed on both sides of the seat.

  • Page 11: Operation

    Operation Make sure the backrest posts are completely seated in the brackets (Fig. 1). Improper placement could cause the backrest to tip over and cause injury. Install the seatback in the brackets behind the lounge seat for the lounge position (Fig. 2). Move the dinette seatback and install in the other set of seat brackets to create dinette seating (Fig.
  • Page 12 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty.
