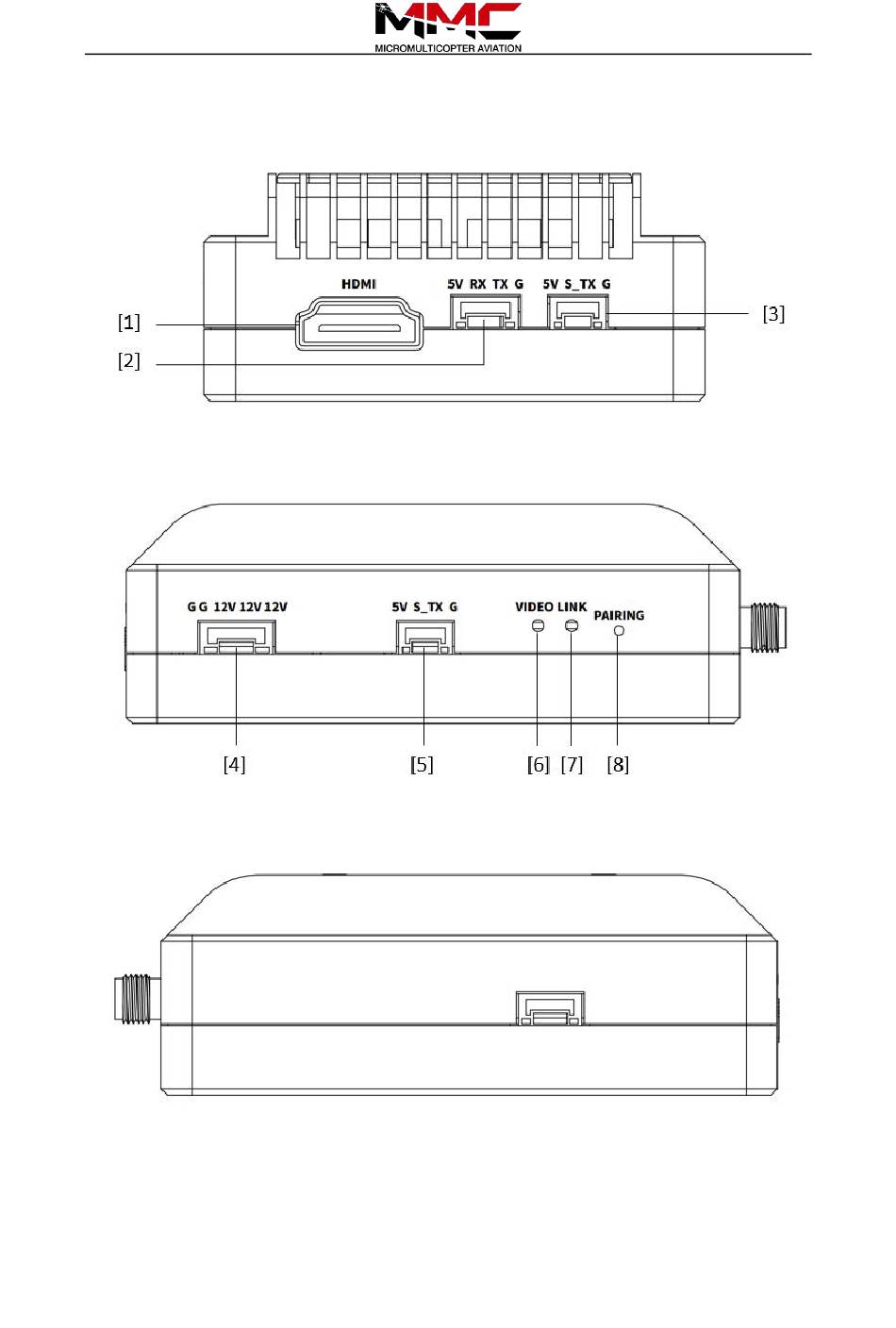

- Page 1 Photon A10 User Manual Sky-end Image 1 Sky-end Frontal Diagram Image 2 Sky-end Right Side Diagram Image 3 Sky-end Left Side Diagram...
- Page 2 Image 4 Sky-end Back Side Diagram HDMI Input Use HDMI wire to connect this port to the HDMI output port of camera/Max. 1080P60 video input. Serial Port 5V: Power Output； RX: Serial Port Input (TTL electrical level, Default 115200 bps, optional 9600 bps, 57600 bps);...
- Page 3 Indicator Light Status Constant Green Light Detection of HDMI signal and normal function Shining Green Detection of HDMI Signal but incapability to send. Light Reconnect sky-end power or check if it is correctly wired. No detection of video source input or incompatible video source input. Constant Red Light Check if the camera is correctly connected to wire or check the camera output settings.
