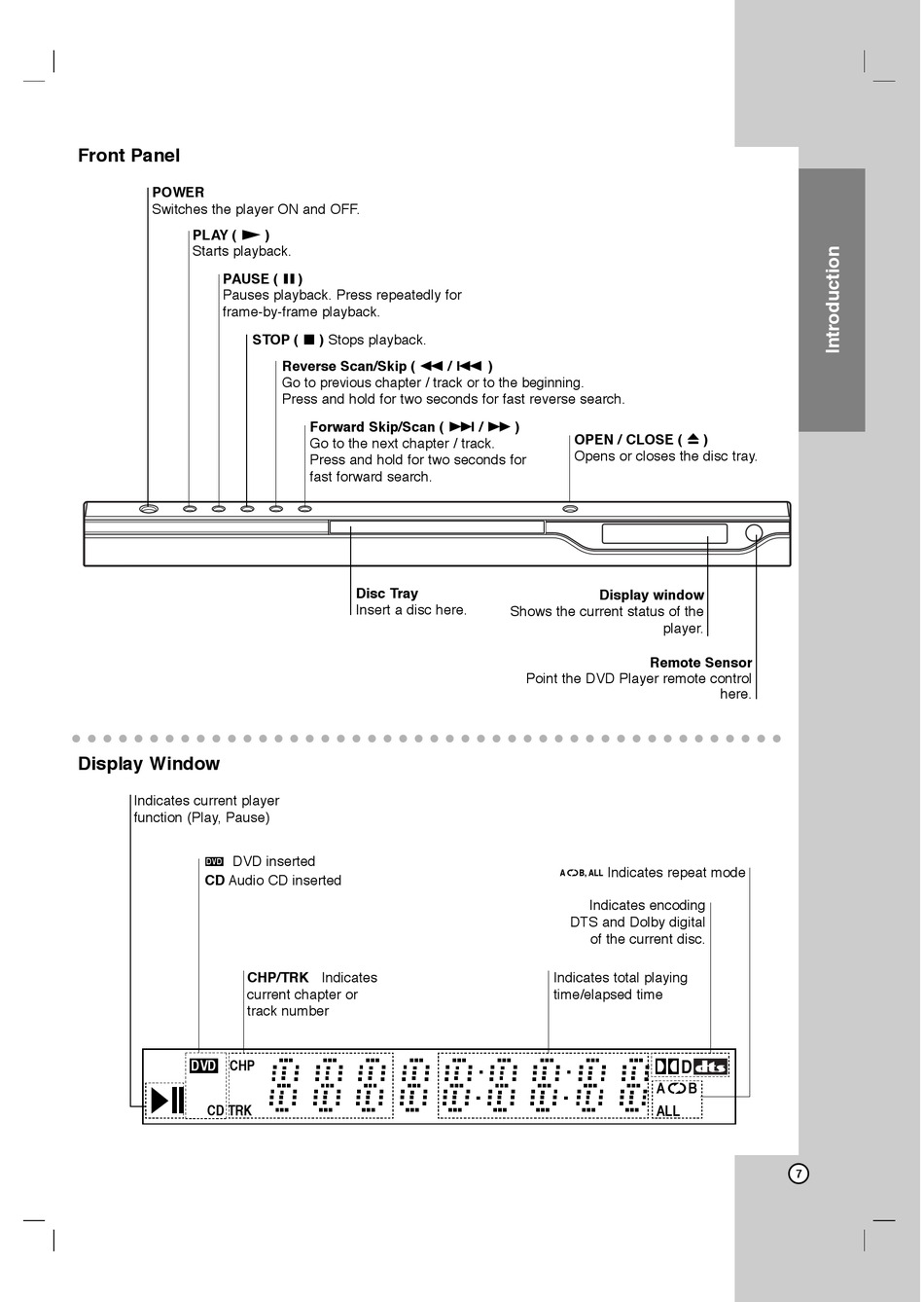

Front Panel

POWER
Switches the player ON and OFF.
PLAY ( N )
Starts playback.
PAUSE ( X )
Pauses playback. Press repeatedly for
frame-by-frame playback.

Display Window

Indicates current player
function (Play, Pause)
DVD inserted
DVD
CD Audio CD inserted
CHP/TRK Indicates
current chapter or
track number
DVD CHP
CD TRK
STOP ( x ) Stops playback.
Reverse Scan/Skip ( m / . )
Go to previous chapter / track or to the beginning.
Press and hold for two seconds for fast reverse search.
Forward Skip/Scan ( > / M )
Go to the next chapter / track.
Press and hold for two seconds for
fast forward search.
Disc Tray
Insert a disc here.
OPEN / CLOSE ( Z )
Opens or closes the disc tray.
Display window
Shows the current status of the
player.
Remote Sensor
Point the DVD Player remote control
Indicates repeat mode
Indicates encoding
DTS and Dolby digital
of the current disc.
Indicates total playing
time/elapsed time
D
A
ALL
here.
B
