Audio Connection to Optional Equipment

Connect the DVD player to your optional equipment
for audio output.

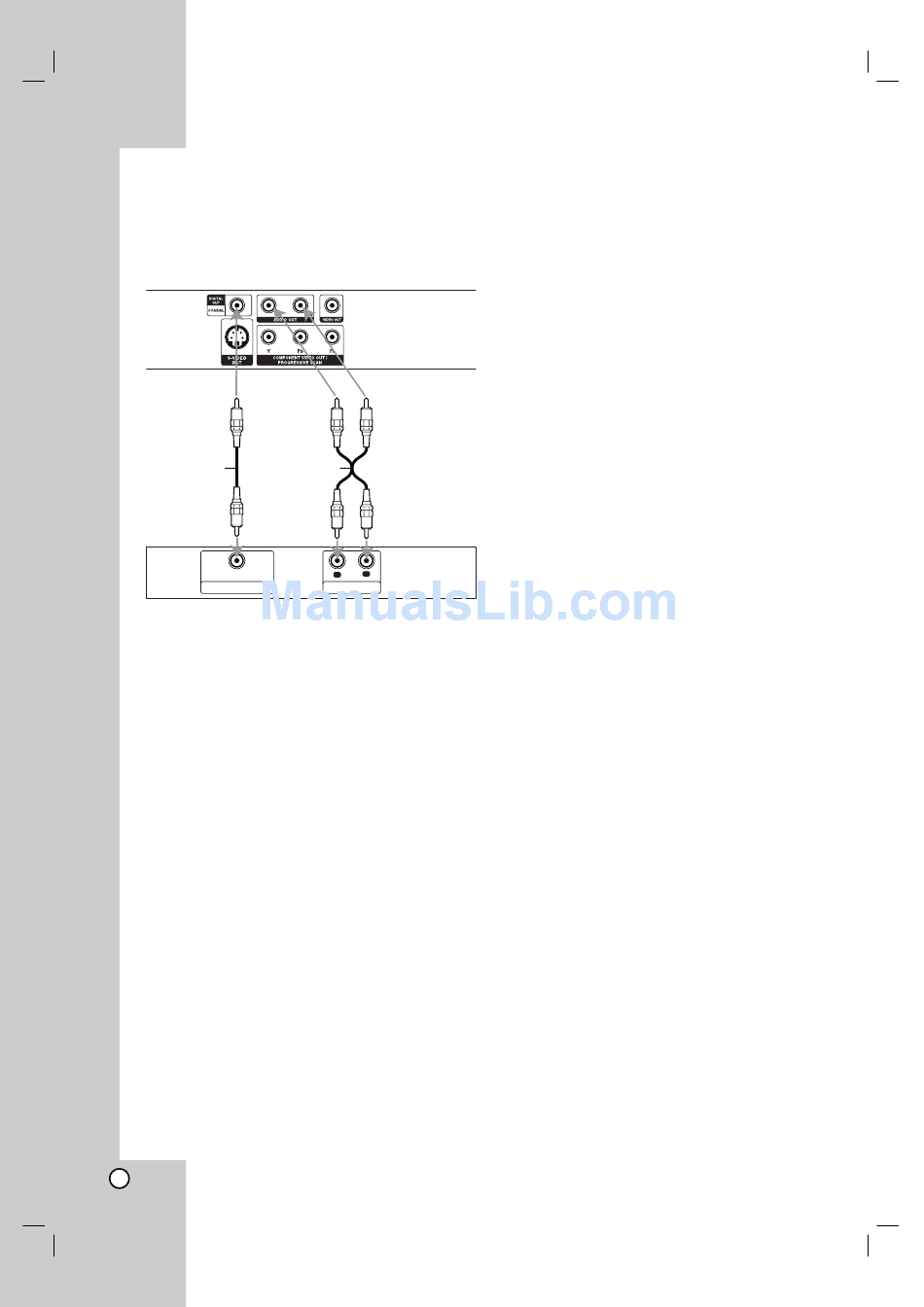

Rear of DVD player
X
COAXIAL
DIGITAL INPUT
Amplifier (Receiver)
10
A
L
R
AUDIO INPUT
Amplifier equipped with 2-channel analog stereo
or Dolby Pro Logic ll / Pro Logic: Connect the left
and right AUDIO OUT jacks on the DVD player to the
audio left and right IN jacks on your amplifier, receiver,
or stereo system, using the audio cables (A).
Amplifier equipped with 2-channel digital stereo
(PCM) or audio / video receiver equipped with a
multi-channel decoder (Dolby Digital™, MPEG 2,
or DTS): Connect one of the DVD Player's DIGITAL
AUDIO OUT jacks (COAXIAL X) to the corresponding
in jack on your amplifier. Use an optional digital
(coaxial X) audio cable.
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel audio
/ video receiver that supports one or more of the audio
formats supported by your DVD player such as MPEG
2, Dolby Digital and DTS. Check the receiver manual
and the logos on the front of the receiver.
Notes:
• If the audio format of the digital output does not
match the capabilities of your receiver, the receiver
produce a strong, distorted sound or no sound at
all.
• Six Channel Digital Surround Sound via a digital
connection can only be obtained if your receiver is
equipped with a Digital Multi-channel decoder.
• To see the audio format of the current DVD in the
on-screen display, press AUDIO.
