on stage KS7365-EJ Assembly Instructions

ASSEMBLY INSTRUCTIONS

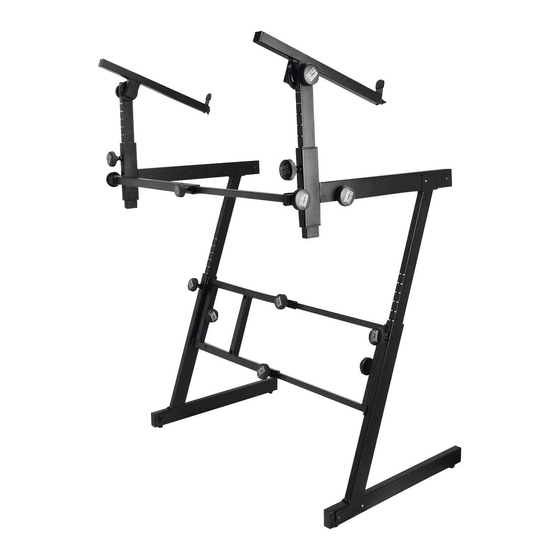

Congratulations on your purchase of the KS7365EJ Pro Heavy-Duty Folding-Z Keyboard
Stand with Second Tier. The model that you purchased was designed with input from
major keyboard performers and keyboard technicians. To fully utilize the strength of
this stand, please read the following assembly instructions carefully. We hope you
enjoy your new purchase!

PREPARATION

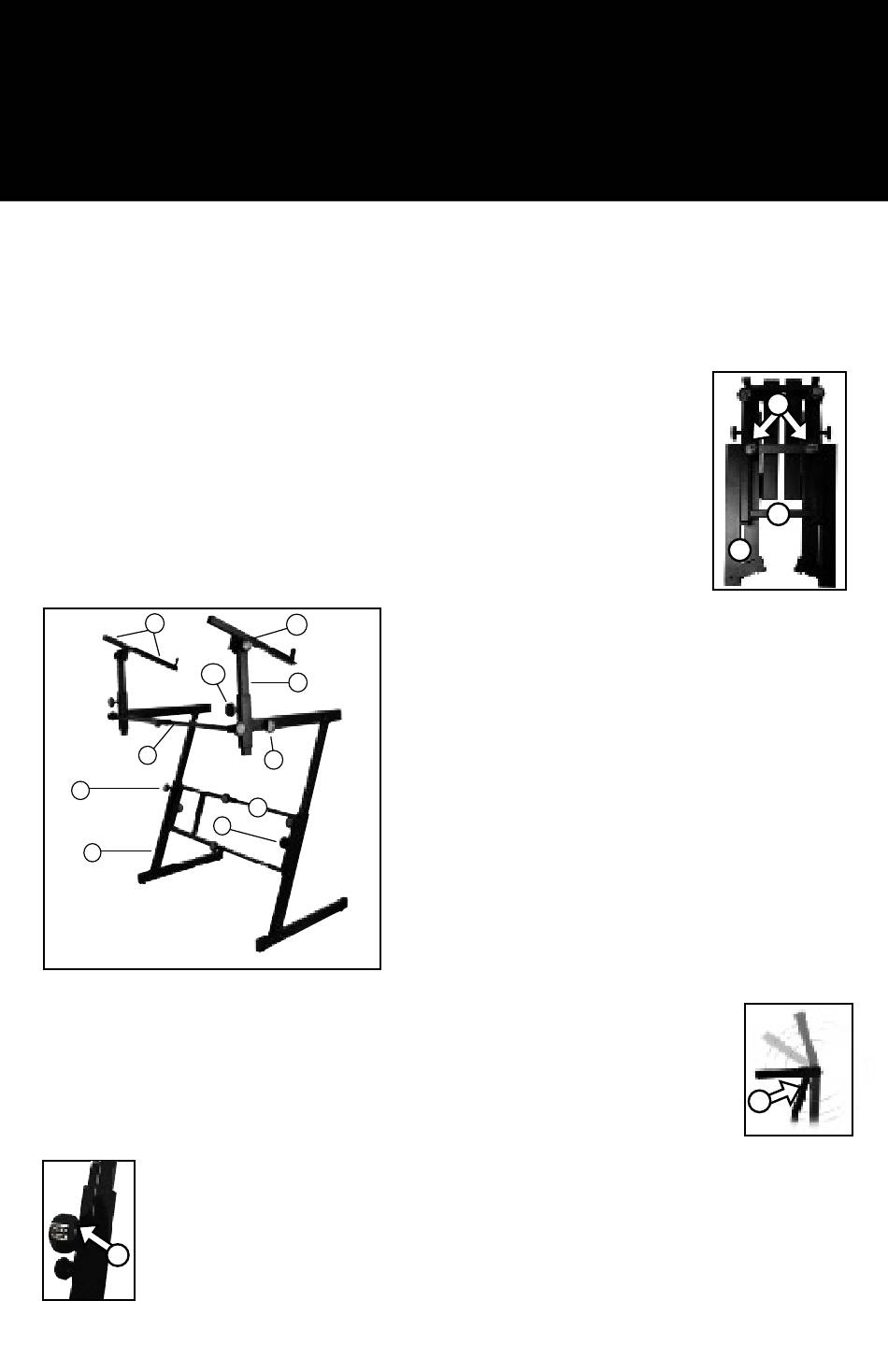

Remove the three locked pieces from the box (see photo to the right).
(IMPORTANT TIP: These 3 pieces can be reattached for transport.
Study photo and note their relationship to one another.) Remove
the 2 knobs (E) that are located at the cross bar and set them aside.
Remove the telescoping box beam (B) from the two Folding-Z legs (A)
and set the three pieces aside.
D
G
C
A
Only one of each set of
parts may be identified
in the above illustration.

Assemble the Folding Z-Leg Assembly

1. Hold one of the Folding Z-Legs (A) upright and rotate the feet until they
lock in the U-shaped bracket. Repeat this procedure to the support arm.
[Tip: To unlock the arms and feet for storage or transport, depress
the chrome button and move the arm in the opposing direction.]
2. Thread one of the adjustment knobs with bullet-nose end (C) into the
welded nut on the lower Folding-Z leg. Pull out the telescoping upper leg
until any of the line-it-up markers lines up with the top edge of the lower
leg opening. Turn the knob clockwise until it locks in place.
C
3. Repeat this procedure on the other Folding-Z leg.
F1
F
H
B
E
REMOVE REMAINING PARTS FROM THE BOX
AND IDENTIFY ALL THE PARTS:
(A) 2--Folding Z-Leg assemblies
(B) 1--Telescoping box beam
(C) 2--Adjustment knobs with bullet-nose ends
(D) 8--Foam pad strips
(E) 2--Box beam knobs with 1 ¼" threaded bolts
(F) 2--Second tier arm assemblies
(F1) 2--Second tier rotation adjustment knobs
(Factory Installed)
(F2) 2--Second tier rotation adjustment knobs
(Factory Installed)
(G) 1--Support bar for second tier
(H) 2--Locking knobs with 3/8" threaded bolts
KS7365-EJ
E
B
A
OPEN
A
FOLDED
