Circutor line-EDS-Cloud Instruction Manual

Hide thumbs Also See for line-EDS-Cloud:
Table of Contents

Advertisement

Quick Links

Download this manual
Access point

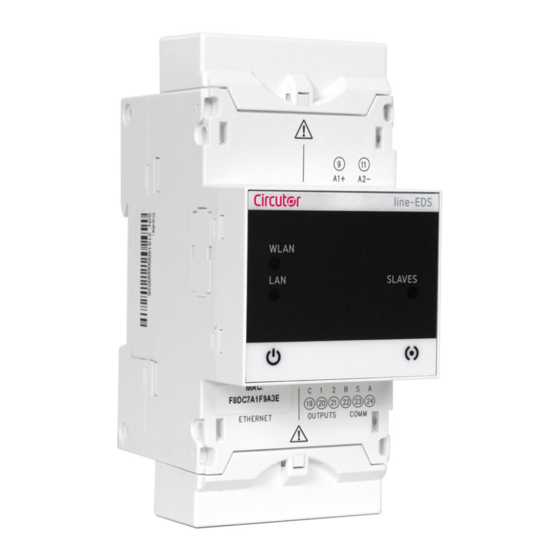

line-EDS-Cloud
INSTRUCTION MANUAL
(M231B01-03-19A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the line-EDS-Cloud and is the answer not in the manual?

Questions and answers

Related Manuals for Circutor line-EDS-Cloud

Summary of Contents for Circutor line-EDS-Cloud

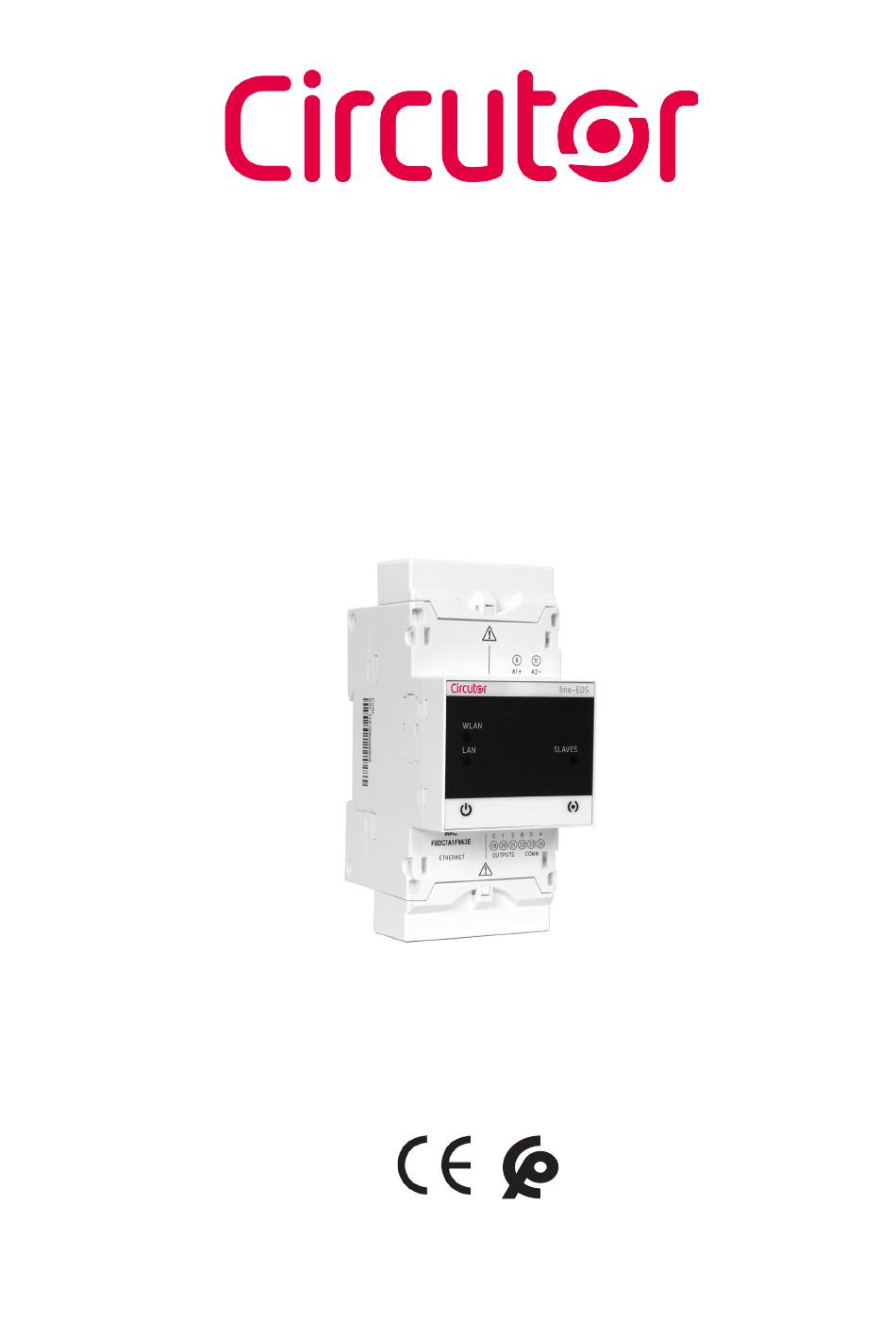

  • Page 1 Access point line-EDS-Cloud INSTRUCTION MANUAL (M231B01-03-19A)
  • Page 2 Instruction Manual...

  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.

  • Page 4: Table Of Contents

    5�2- Wi-Fi COMMUNICATIONS ������������������������������������������������������������������������������������������������������������������������ 18 5�2�1�- USAGE ENVIRONMENT AND HEALTH �������������������������������������������������������������������������������������������� 18 5�2�2�- Wi-Fi COMMUNICATIONS ����������������������������������������������������������������������������������������������������������������� 18 6�- CONFIGURATION WEBSITE ������������������������������������������������������������������������������������������������������������������������ 19 6�1- CONFIGURATION OF THE line-EDS-Cloud DEVICE ���������������������������������������������������������������������������� 20 6�1�1�- ETHERNET ����������������������������������������������������������������������������������������������������������������������������������������� 21 6�1�2�- Wi-Fi ��������������������������������������������������������������������������������������������������������������������������������������������������� 21 6�1�3�- SYSTEM ��������������������������������������������������������������������������������������������������������������������������������������������� 22 6�2- CONFIGURATION OF THE DATA UPLOAD SYSTEM ���������������������������������������������������������������������������...

  • Page 5: Revision Log

    REVISION LOG Table 1: Revision log� Date Revision Description 05/20 M231B01-03-19A First Version SYMBOLS Table 2: Symbols� Symbol Description In accordance with the relevant European directive. In accordance with the CMiM directive. Device covered by European Directive 2012/19/EC. At the end of its useful life, do not leave the device in a household refuse bin.

  • Page 6: 1�- Verification Upon Reception

    CIRCUTOR’s after-sales service� 2�- PRODUCT DESCRIPTION line-EDS-Cloud is a device that works as connector between field devices with Modbus RTU or Modbus TCP communications and data collection systems in the cloud (Big Data). The line-EDS-Cloud includes a Web page to configure the Modbus devices’ memory profiles or maps and select which variables are to be transferred to the Cloud systems.

  • Page 7: 3�- Installation Of The Device

    The line-EDS-Cloud device must be installed by authorised, qualified personnel. The power supply plug must be disconnected before handling, altering the connections or re- placing the device.

  • Page 8: 3�3�- 72 X 72 Mm Panel Adapter

    3.3.- 72 x 72 mm PANEL ADAPTER Note: The 72 x 72 mm panel adapter is a separately sold accessory. CIRCUTOR has a panel adapter for the line-EDS-Cloud devices for their installation in 72 x 72 mm panels. illustrates how the panel adapter connects to a line-EDS-Cloud.

  • Page 9: 3�4�- Device Terminals

    22: B-, RS-485 3.5.- EXPANSION WITH OTHER DEVICES The line-EDS-Cloud devices can be expanded with other devices in the line range, the line- CVM and line-M expansion modules. The line-EDS-Cloud and line-CVM devices enable up to 2 expansion modules to be directly...

  • Page 10: 3�5�1�- Line-M-Ext-Ps Power Adapter

    It can supply up to 10 VA, allowing it to power a limited number of devices. The maximum set it can supply is: 1 line-EDS-Cloud + 1 line-CVM + 1 line-M ( Figure 6...

  • Page 11: 3�5�2�- Installation

    3�5�2�- INSTALLATION Before installing a new device, it must be disconnected from all power supplies. The correct steps to connect the devices are: 1�- Using a flat head screwdriver, remove the expansion connector’s protective covers located on the side of the devices, ( Figure 8 Figure 8: Installation step 1�...
  • Page 12 Figure 10: Installation step 3� For correct installation of all devices, please refer to the instruction manual for the different models: M237B01-01-xxx: Instruction Manual for line-CVM devices. M239B01-03-xxx: Instruction Manual for line-M expansion modules. Instruction Manual...

  • Page 13: 3�6�- Connection Diagrams

    HTML5 With a browser compatible with HTML5 Con navegador Web compatible con HTML5 With a browser compatible with HTML5 INTERNET SERVIDOR / SERVER ROUTER Ethernet Wi-Fi Wi-Fi line-EDS WLAN Ethernet SLAVES RS-485 Figure 11: line-EDS-Cloud connection diagrams� Instruction Manual...

  • Page 14: 4�- Operation

    4�- OPERATION 4.1.- OPERATING PRINCIPLE Line-EDS-Cloud is a device that works as connector between field devices with Modbus RTU or Modbus TCP communications and data collection systems in the Cloud. Line-EDS-Cloud connects field devices with Modbus via RS-485, Wi-Fi or via a Modbus TCP Ethernet connection and sends data to Cloud platforms.
  • Page 15  LAN, Ethernet connection Table 6: LAN LED� Description On (green color) Connection to a local network Flashing (green color) Activity in the network  WLAN, Wi-Fi connection: Table 7: WLAN LED� Description On (blue color) Connection to a Wi-Fi network...

  • Page 16: 4�3- Digital Outputs

    4.3- DIGITAL OUTPUTS The device has 2 digital outputs, optoisolator NPN transistors (terminals 19, 20 and 21 in Fig- ure 3 line-EDS WLAN SLAVES Carga Load Fuente externa External load Salidas de transistor Transistor outputs Figure 13: Digital outputs�...

  • Page 17: 5�- Communications

    The RS-485 cable must be wired using twisted pair cable with mesh shield (minimum 3 wires), with a maximum distance of 1200 meters between the line-EDS-Cloud and the slave devices. In this bus we can connect a maximum of 32 slave devices.

  • Page 18: 5�2- Wi-Fi Communications

    Wi-Fi is one of the most widely-used wireless technologies today, used to connect electronic devices and exchange information between them without a physical connection. The line-EDS-Cloud has Wi-Fi communications over the 2.4 GHz band, in accordance with the IEEE 802.11 ac / a / b / g / n standards.

  • Page 19: 6�- Configuration Website

    6�- CONFIGURATION WEBSITE The configuration website for the device is accessed via the IP address. The default configuration for line-EDS-Cloud is in DHCP mode; the device can be identified by its MAC address using software such as the Advanced IP Scanner.

  • Page 20: 6�1- Configuration Of The Line-Eds-Cloud Device

    Device : Con guration of connected device Schedule : Planning data upload Exports : Cloud platform con guration Settings : Con guration of the line-EDS-Cloud device System : Status of the system line-EDS-Cloud Figure 17: Menu of configuration website. On the configuration website, you can perform 3 main actions: ...

  • Page 21: 6�1�1�- Ethernet

    6�1�1�- ETHERNET In this section, the Ethernet communications of the line-EDS-Cloud are configured. IP dhcp: If DHCP is enabled, the IP address is dynamically assigned by a central server and no further parameters need to be configured. If this option is disabled, the IP address is fixed and the following parameters need to be configured: ...

  • Page 22: 6�1�3�- System

    6�1�3�- SYSTEM Host name: Identifying name within the local network. Press to save the configuration and send it to the device. 6.2- CONFIGURATION OF THE DATA UPLOAD SYSTEM This section describes the steps for configuring the system used to upload data to the Cloud platforms.
  • Page 23 Figure 21: Profile: Create profile. Name: Name of the profile to be created. Manufacturer: Manufacturer’s name. Model: Device model of the new profile: CVM, CEM, EDMk ..Description: Brief description of the profile. Device variables tab: In this tab, the memory locations (variables in a Modbus map) can be created that will be part of the profile.
  • Page 24 Figure 22:Device Resources�  Name: Variable name.  Description: Brief description of the variable.  Attributes: Select the data type of the variable: HoldingRegister, ImputRegister, Discretel- nput o Coil.  Address: Modbus address of the variable; its memory location on the device.
  • Page 25 Table 12 (Continuation): Variable type Type: Variable type BOOL Variable type bool (logical)  Scale factor: Multiplication factor. Note: Variable visible when selecting types in Type: UINT8, UINT16, UINT32, UINT64, INT8, INT16, INT32 and INT64 .  Precision: Select the number of decimal places to be shown.
  • Page 26  Description: Brief description of the location of the grouping.  Expected values: Select the variables that will be part of the grouping. Press to save the grouping created. STEP 2: ENTERING INTO THE SYSTEM THE DEVICES THAT HAVE THE DATA PROFILE...
  • Page 27 Figure 25: Device screen: Commands� STEP 2�1�- Entering a new device Press to add a new device, the screen in will be shown. Figure 26 Figure 26: Device screen: New Device� Name: Device name. Description: Brief description of the device.
  • Page 28 Communications type: Select the type of communication: RTU or TCP. When selecting the RTU communication type, the following parameters have to be configured: Baud rate: Select the communications baud rate: 9600, 19200, 38400, 57600, 115200. Bits Stop: Select the bits stop number: 1 or 2.
  • Page 29 Figure 28: Schedule screen: New Schedule� Name: Name of the new schedule. Frequency: Select how often to upload data to the Cloud platform: 1 min, 5 min, 10 min, 15 min, 30 min, 1 h, 2 h, 4 h, 12 h, or 1 day.
  • Page 30 Figure will appear. Figure 30:Export screen: Add Export� Name: Select the Cloud platform. The line-EDS-Cloud can connect to the following platforms: MyCircutor, Amazon Web Services (AWS), Azure IoT Hub, DEXMA and Google Cloud IoT Core. Depending on the platform selected, the configuration parameters may vary.
  • Page 31 Note: “ANNEX A:CONFIGURATION OF CLOUD PLATFORMS”, summarises the basic steps for configuring the relationship between the line-EDS-Cloud device and the platform in the Cloud where you want to export the data you have obtained. Once the configuration steps for the upload system have been completed, the device automatically begins uploading the data to the specified Cloud platform.

  • Page 32: 6�3- Checking The Status Of The System

    Figure 31 Figure 31: System: Info� 6�3�1�- INFO In this section you can find the line-EDS-Cloud serial number and firmware version, Figure 31 6�3�2�- STATISTICS This section shows statistical data on the operation of line-EDS-Cloud, Figure 32 Figure 32: System: Statistics�...

  • Page 33: 6�3�3�- Update

    Figure 33 Figure 33: System: Update� To update the device firmware: 1�- Download the update file from CIRCUTOR website. 2�- Select the update file in the Update section. Updating the device takes about 1 minute. 6�3�4�- PASSWORD In this section you can change the access password to the configuration website, Figure 34 Figure 34: System: Password�...

  • Page 34: 6�3�5�- Reset

    6�3�5�- RESET In this section, , the line-EDS-Cloud device can be reset by clicking the button Figure 35 Figure 35: System: Reset� 6�3�6�- LOG In this section, , all the operations performed by the data upload system are recorded.

  • Page 35: 7�- Technical Features

    7�- TECHNICAL FEATURES AC Power supply Rated voltage 80 ... 264 V 50 ... 60 Hz Frequency 2.5 ... 7 VA Consumption CAT III 300 V Installation category DC Power supply Rated voltage 100 ... 300 V 1.5 ... 2.5 W...
  • Page 36 Electromagnetic compatibility (EMC) -- Part 6-4: Generic standards - EN 61000-6-4 Emission standard for industrial environments Safety Requirements for Electrical Equipment for Measurement, Con- UL 61010-1 trol, and Laboratory Use - Part 1: General Requirements 52.5 WLAN SLAVES Figure 37: line-EDS-Cloud dimensions� Instruction Manual...

  • Page 37: 8�- Maintenance And Technical Service

    • CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”...

  • Page 38: 10�- Ce Certificate

    10�- CE CERTIFICATE Instruction Manual...
  • Page 39 Instruction Manual...
  • Page 40 Instruction Manual...

  • Page 41: Annex A: Configuration Of The Cloud Platforms

    This annex contains a summary of the basic steps required to configure the relationship between the line-EDS-Cloud device and the Cloud platform where you want to export the data. Currently, line-EDS-Cloud can connect to 5 different platforms: MyCircutor, Amazon Web Services (AWS), Azure IoT Hub, DEXMA and Google Cloud IoT Core.
  • Page 42 Es puerta de entrada (It’s an input gateway) option. Figure 40: MyCircutor platform: Add Device� 4�- Once line-EDS-Cloud has been added, it is shown in the list of devices. Figure 41: MyCircutor platform: List of Devices� Instruction Manual...
  • Page 43 5�- To get the Access token for line-EDS-Cloud, click on the device name to view its features, and click on Gestionar Credenciales (Manage Credentials) in the Detalles (Details) tab. A new screen appears where you can specify the Access token for the device.

  • Page 44: A.2- Amazon Web Services (Aws)

    A.2- Amazon Web Services (AWS) To configure data export to the AWS platform, the steps are as follows: 1�- On the configuration website for the device, go to the screen, where the Cloud platform is specified. Press to select and configure the Cloud platform, the screen shown in...
  • Page 45 Figure 45: AWS platform: Internet of things� 3�- In the AWS IoT menu, go into Administración (Administration) → Objetos (Objects) and click Crear� Figure 46: AWS platform: Objects� 4�- Several steps are required to create an object: 4�1�- On the screen Creación de objetos de AWS IoT (Creation of AWS IoT objects), click on the option Crear un solo objeto (Create a single object)�...
  • Page 46 4�2�- On the screen Añadir su dispositivo al registro de objetos (Add your device to the object registry), assign a Nombre (Name) and click Next. Figure 48: AWS platform: Add your device to the object registry� 4�3�- On the screen Añadir un certificado para el objeto (Add a certificate for the object), click Crear un certificado (Create a certificate) to create the object and the certificates.
  • Page 47 5�- It is now necessary to create a policy in AWS IoT: 5�1�- In the AWS IoT menu, go to Seguro (Insurance) → Políticas (Policies) and click Crear� Figure 50: AWS platform: Creating a policy� 5�2�- On the screen Crear una política (Create a policy), asignar un Nombre (Name) and in Añadir declaraciones (Add declarations), if these declarations are unknown, leave an * in...
  • Page 48 6�- Link the policy to the object created: 6�1�- In the AWS IoT menu, go to Administración (Administration) → Objetos (Objects) and click on the object created previously. Figure 52: AWS platform: Administration - Objects� 6�2�- Select Seguridad (Security) and click on the certificate created.
  • Page 49 7�- Enter the new data on the device configuration website: Figure 54: Export Screen: Add Export� Host address: This field is in the Interactuar (Interact) → HTTPS menu of the created object. Figure 55: AWS Platform: Host address� Object: Add the name of the created object in this field.
  • Page 50 Key: Select the created certificate file. 8�- Once the data export to the Amazon Web Services (AWS) platform has been configured, the readings of the values from the devices associated with the line-EDS-Cloud are shown on the platform. To do this, in the AWS IoT menu, go to Administración (Administration) → Objetos (Objects) and select the desired object.

  • Page 51: A.3- Google Cloud Iot Core

    A.3- Google Cloud IoT Core To configure the data export to the Google Cloud IoT Core platform, the steps are as follows: 1�- On the device configuration website, go to the screen where the Cloud platform can be specified.
  • Page 52 Figure 58: Google screen: Google Cloud Platform� 3�- Create a new project by assigning a name in Nombre del proyecto (Project Name) and an ID in ID del proyecto (Project ID). Make a note of the ID, as it will be used later.
  • Page 53 Figure 60: Google screen: New project� 5�- Add a subject name and make a note of it, as it will be used later on. Figure 61: Google screen: Create a subject� 6�- Create certificates. Before creating the device registry, an RS256 key has to be generated with a self-signed X.509 certificate.
  • Page 54 The files rsa_cert�pem and rsa_private�pem, are created, which will be used for the line-EDS- Cloud configuration. 7�- Creating a device registration. 7�1�- In the menu Big Data go to IoT Core� Figure 62: Google screen: Google Cloud Platform - IoT Core�...
  • Page 55 Figure 64: Google screen: Create a registry�  ID de registro: Make a note of this, as it needs to be used in the line-EDS-Cloud configuration. Instruction Manual...
  • Page 56 8�1�- In the IoT Core screen, click on Crear dispositivo (Create device)� Figure 65: Google screen: Devices� 8�2�- To create a new device, fill in the following sections: ID de Dispositivo: Make a note of this, as it needs to be used in the line-EDS-Cloud configuration. Comunicación de Dispositivo: Select Permitir.
  • Page 57 9�- Enter all the data obtained from the Google Cloud IoT Core platform into the device configuration website. 10�- Once the data export to the Google Cloud IoT Core platform has been configured, the readings for the values from the devices linked to the line-EDS-Cloud will be shown on the platform. Instruction Manual...
  • Page 58 To do this, in the navigation menu, go to Big data → IoT Core and select the registry and the device created. The dates of the last data sets received are displayed on the screen. Figure 67: Google screen: Device�...
