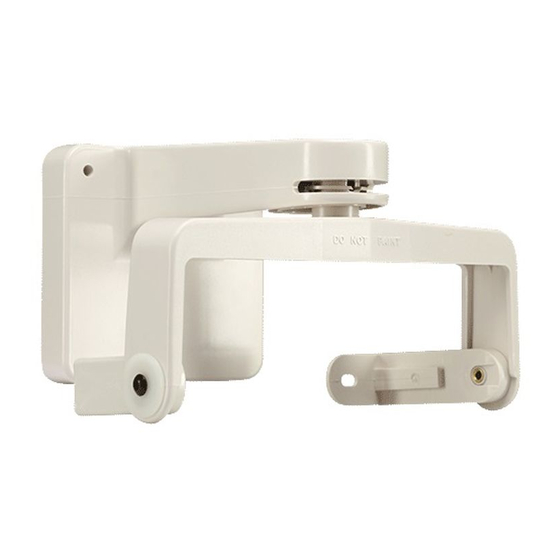

Multi-mounting kit for use with system sensor reflective projected beam smoke detectors

Advertisement

Quick Links

INSTALLATION AND MAINTENANCE INSTRUCTIONS
BEAMMMK
Multi-mounting Kit for use with System Sensor
Reflective Projected Beam Smoke Detectors
Notice: This manual should be left with the owner/user of
this equipment.
General Description
The BEAMMMK allows System Sensor reflected beam detec-
tors and reflectors to be mounted to either a vertical wall or
the ceiling. The kit allows for additional alignment range in
cases where the detector and reflector cannot be mounted
within 10° of each other. The kit includes the hardware
necessary to mount either a single transmitter/receiver unit
or a single reflector. (To mount the transmitter/receiver the
surface mount kit, BEAMSMK, must also be used). If the
transmitter/receiver and the reflector require additional
alignment range two kits are required. The kit is not com-
patible with the long-range reflector kit (BEAMLRK).
The kit includes the following parts:
Qty. Description
1
Ceiling mount bracket inside
1
Ceiling mount bracket outside
1
Wall mount bracket
1
"U" bracket
2
"L" bracket
1
Horizontal adjustment screw (ceiling) #10-24 × 2
1
Horizontal adjustment screw (wall) #10-24 × 1
2
Allen screw #10-24 ×
2
Allen screw #10-24 ×
2
Fender washer plastic
2
Fender washer metal
2
Washer plastic #10
2
Washer metal #10
2
Washer metal split-lock #10
2
Hex nut #10-24
1
Allen wrench
D400-79-00
/
1
"
2
/
5
"
8
Mounting Brackets
Install a ceiling or wall bracket so that when mounted, the
transmitter/receiver and the reflector will have a clear line
of sight between them.
The ceiling bracket is composed of two parts that should
be assembled with the inside part between the ceiling and
the outside part as shown in Figure 1. The brackets should
be mounted so that the slot in the front of each bracket is
facing the other bracket. Mount the brackets only on solid
structures of the building. To avoid unwanted alarms due
to wall movement, do not mount to flexible walls, such as
sheet metal walls (see Mounting Locations section of the
transmitter/receiver manual for more details).

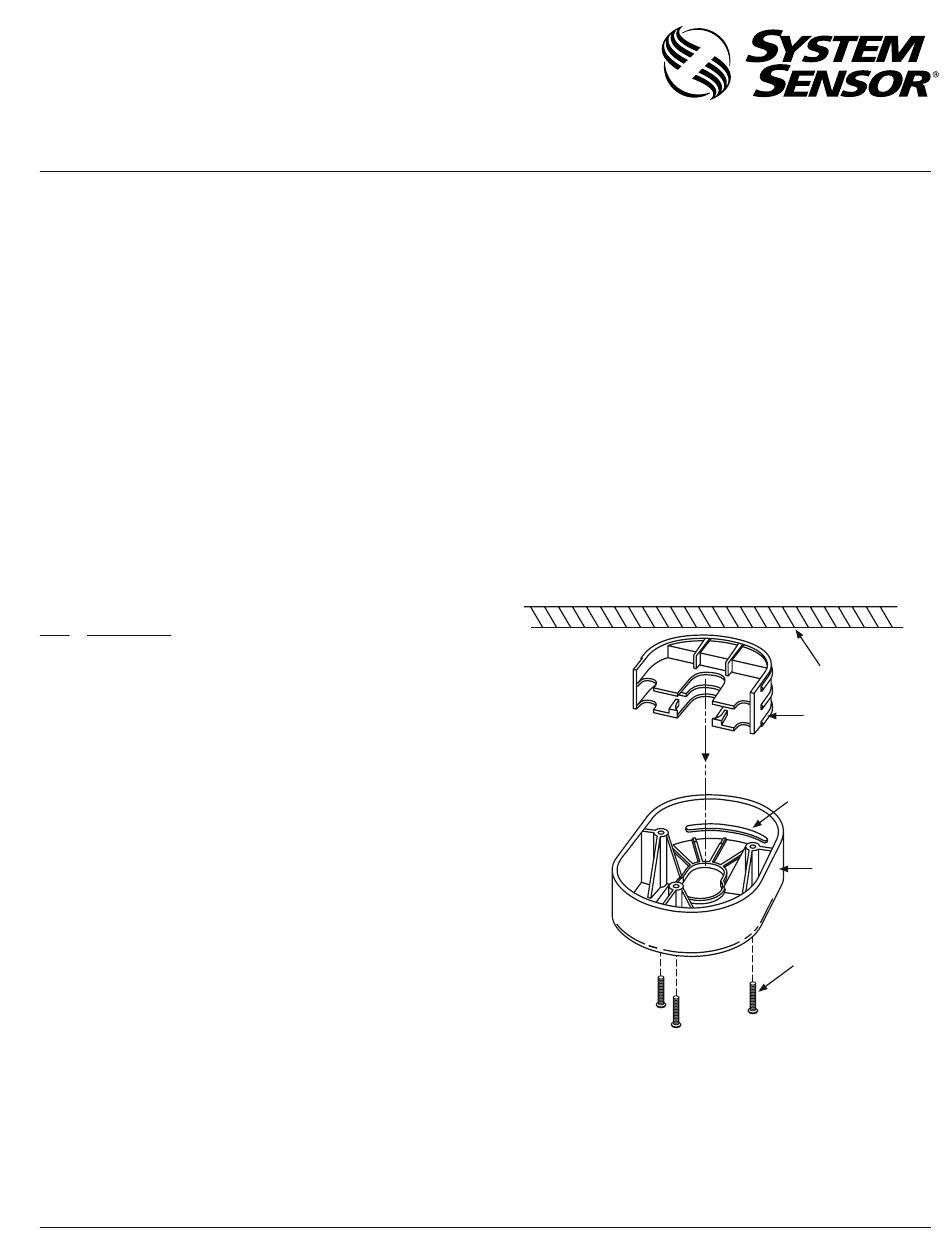

Figure 1. Ceiling mount bracket assembly:
/
1
"
4
/
3
"
8
1
3825 Ohio Avenue, St. Charles, Illinois 60174
800/736-7672, FAX: 630/377-6495
www.systemsensor.com
CEILING
INSIDE
PART
SLOT IN FRONT
OF BRACKET
OUTSIDE
PART
CEILING
SCREWS
C0315-00
I56-2358-02
