Summary of Contents for LS Industrial Systems Susol Series

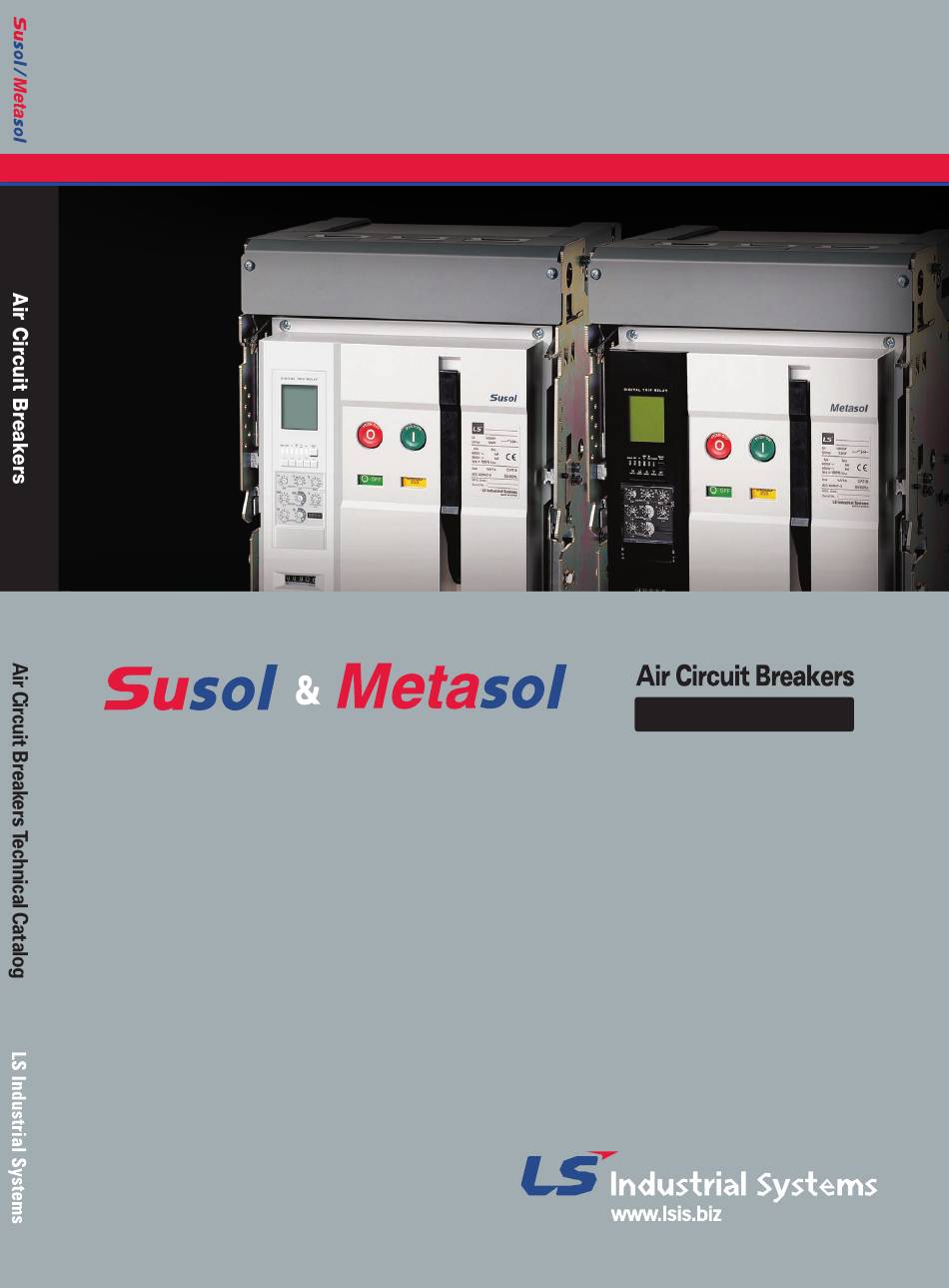

  • Page 1 Technical Catalog Meta Solution Super Solution...
  • Page 2 Meta solution Super solution...
  • Page 3 Contents Overview Structure and Operation Internal Electrical Accessory Digital Trip Relay Digital Trip Relay Accessory Installation and Service Condition Operation Protective Coordination Accessories Handling and Maintenance Control Circuit and Dimension Ordering Sheet Technical catalog for Susol & Metasol ACB...
  • Page 4 Overview 1. Product Introduction 2. Accessories 3. Introduction of Digital Trip Relay 4. Ratings 5. Externals and Inscriptions...
  • Page 5 Susol Series Susol Series ACB has high breaking capacity and multi-function product at the world class level which is used with P and S type of digital trip relay. It is basically equipped with arc box to assure arc space zero performance.
  • Page 6 Overview 1. Product Introduction Standard and Approvals It has obtained approvals in accordance with following international standard and can be applicable to service condition defined from international standard. � � IEC 60947-1 Low-voltage switchgear and controlgear - Part 1: General rules �...
  • Page 7 Technical catalog for Susol & Metasol ACB 2. Accessories Main Body Structure - Auxiliary Devices � � � � � � � � � � � � � � � � Trip Relay(OCR) � Door Interlock(DI) � Counter(C) � Motor(M) �...
  • Page 8 Overview 2. Accessories Cradle Accessories / External Installation and Others � � � � � � � � � � � � � � � � � � � � Cradle Accessories External Installation and Other � Safety Shutter(ST) � Miss Insertion Prevent device(MIP) �...
  • Page 9 Technical catalog for Susol & Metasol ACB 3. Introduction of Digital Trip Relay OCR with Multi-functions is to Satisfy Using Conditions for Diverse Customers’ Demand. N Type A Type P / S Type Susol Metasol Susol Metasol Susol Metasol �ZSI / Override/MCR �L / S / I / G / Thermal �L / S / I / G / Thermal / Earth �L / S / I / G / Thermal...
  • Page 10 Overview 4. Ratings Susol Series AH-10D3-10J B / C Motor power suppy Closing power suppy Trip power suppy Aux.contact & Charging types OPTION Motor Not Provided C.C Not Provided SHT Not Provided UVT Not Provided Low capacity OFF charge 3a3b...
  • Page 11 Technical catalog for Susol & Metasol ACB Metasol Series AN-10D3-10J B / C Motor power suppy Closing power suppy Trip power suppy Aux.contact & Charging types OPTION Motor Not Provided C.C Not Provided SHT Not Provided UVT Not Provided Low capacity OFF charge 3a3b Low capacity ON charge 3a3b AC / DC100V~130V AC / DC100~130V...
  • Page 12 Overview 4. Ratings Metasol Series AS-10D3-10J B / C Motor power suppy Trip power suppy Aux.contact & Charging types Closing power suppy OPTION C.C Not Provided SHT Not Provided UVT Not Provided Motor Not Provided Low capacity OFF charge 3a3b Low capacity ON charge 3a3b AC / DC100V~130V AC / DC100V~130V...
  • Page 13 Technical catalog for Susol & Metasol ACB Control power supply & Frequency OCR TYPE Communication & Ground fault detection OCR Not Provided No communication No control power supply, 60Hz NORMAL Ground fault detection (internal CT Vector Sum) � No control power supply, 50Hz �...
  • Page 14 Overview 4. Ratings Susol Series Ratings AH - D, W TYPE AH- 06D AH- 08D AH-10D AH-13D AH-16D AH-20D Ampere Frame (AF) 1000 1250 1600 2000 Rated current at40℃ ℃ 1000 1250 1600 2000 (In max) (Ue) Rated operating voltage...
  • Page 15 Technical catalog for Susol & Metasol ACB AH - E, X AH - G, Z AH- 06E AH- 08E AH-10E AH-13E AH-16E AH-20E AH-25E AH-32E AH-40E AH-40G AH-50G AH-63G 1000 1250 1600 2000 2500 3200 4000 4000 5000 6300 1000 1250 1600 2000...
  • Page 16 Overview 4. Ratings Metasol AS / AN Series Ratings AS - D, W AS - E, X TYPE AS- 06D AS- 08D AS-10D AS-13D AS-16D AS-20D AS-20E Ampere Frame (AF) 630AF 800AF 1000AF 1250AF 1600AF 2000AF 2000 630,800 Rated current at40℃...
  • Page 17 Technical catalog for Susol & Metasol ACB AS - E, X AS - G, Z AS-F,Y AN - D, W AN - E, X AS-25E AS-32E AS-40E AS-40F AS-50F AS-40G AS-50G AS-63G AN-06D AN-08D AN-10D AN-13D AN-16D AN-20E AN-25E AN-32E 2500 3200 4000...
  • Page 18 Overview 5. Externals and Inscriptions External View and Inscriptions OFF Button ON Button Product Series Name Main Nameplate Charge Discharge Display ON/OFF Display Company CI Draw-in/out Handle Storage Space Secondary Nameplate Position Indicator Draw in/out Handle Insertion Opening Draw-in/out pad lock Digital Trip Relay Nameplate Features ■...
  • Page 19 Technical catalog for Susol & Metasol ACB Structure and Operation 1. Internal Structure and Components 2. Basic Function and Breaking Operation Technical catalog for Susol & Metasol ACB...
  • Page 20 Structure and Operation 1. Internal Structure and Components Internal Configuration � Control terminal block � � Control terminal � � � � � � � � � Auxiliary switches � � Closing, Trip, UVT Coil � Trip Relay � � Front Cover �...
  • Page 21 Technical catalog for Susol & Metasol ACB Fixed Type / Draw-Out Type ■ Fixed Type � � � � � ON button � � OFF button � � Series name � � Rated name plate � � Charge Discharge indicator �...
  • Page 22 Structure and Operation 2. Basic Function and Breaking Operation ACB Prevents a Fire, a Property Damage, the Breakage of an Electrical Equipment on Load capital side by Protecting a Circuit from the capital fault Currents. 1. Circuit Closing The closing operation of mechanism applies the current to the load. When energized, some loads makes inrush current much greater than rated current (In) (e.g.
  • Page 23 Technical catalog for Susol & Metasol ACB Internal Electrical Accessories 1. Closing & SHT Coil 2. Under Voltage Trip Device(UVT) 3. UVT Time Delay Controller 4. Trip Alarm Switch(AL) Technical catalog for Susol & Metasol ACB...
  • Page 24 Internal Electrical Accessories 1. Closing and Shunt Coil �It is a control device which closes or trips a circuit breaker from remote place when applying voltage continuously or instantaneously to coil terminals (C1, C2). Rated Voltage and Characteristics of Closing / Shunt coil Trip Time [ms] Rated Voltage[Vn] Operating Voltage Range [V]...
  • Page 25 Technical catalog for Susol & Metasol ACB 2. Under Voltage Trip device, UVT �UVT installed inside of the circuit breaker opens the circuit breaker when its supply or control voltage drops below the specified voltage.Please connect with UVT time-delay device in order to present the time-delay function because UVT is technically instantaneous type.
  • Page 26 Internal Electrical Accessories 3. UVT Time Delay Controller �Use UVT time delay controller to prevent the trip of a circuit breaker due to the operation of instantaneous type UVT when voltage dips occurred instantly on main or control power supply. �If combining UVT time delay controller and instantaneous type UVT mounted in circuit breaker, it makes a trip operation after a certain time when its main or control voltage drop below specified value to prevent the unexpected trip operation caused from instant blackout.
  • Page 27 Technical catalog for Susol & Metasol ACB 4. Trip Alarm Switch, AL � In case a circuit breaker is tripped by OCR which operates against the faulty current (Over Current Relay), Trip Alarm switch provides the information regarding the trip of circuit breaker by sending the electrical signal from the mechanical indicator on main cover of main circuit breaker or internal auxiliary switch.
  • Page 28 Digital Trip Relay 1. Comparison Table upon Types 2. Externals and Configuration 3. Internal Circuit Diagram 4. Relay Function 5. Measurement Function 6. IO(Input-Output)Port...
  • Page 29 �Same with P type Record status (Content, Status, Date) Operating �Reset, Menu Up/Down, �Same with A type �Same with A type �Reset button Button Left/Right, Enter Note1) S/ P Type are only applicable to Susol Series. Technical catalog for Susol & Metasol ACB...
  • Page 30 Digital Trip Relay 2. Externals and Configuration N, A / S Type Knob Configuration N , A Type Knob Configuration S Type Knob Configuration � � N, A type Knob Information Type of Knob Mode Setting Step ① ① Long-time current setting (0.5-0.6-0.7-0.8-0.9-1.0)×ln ②...
  • Page 31 Technical catalog for Susol & Metasol ACB N Type KEY / LED / A, P, S Type KEY / LED N Type KEY / LED A, P, S Type KEY / LED � � LED Information LED Type Operational Mode ①...
  • Page 32 Digital Trip Relay 3. Internal Circuit Diagram Internal Circuit Diagram...
  • Page 33 Technical catalog for Susol & Metasol ACB 4. Relay Function Long- Time Delay Relays Ir = In × × ... Current Setting(A) (1.15 × × Ir) tr @ (1.5× Ir) 12.5 Maximum time delay(sec) Long-Time tr @ (6.0× Ir) Accuracy:±15% or below 100ms Delay(L) tr @ (7.2×...
  • Page 34 Digital Trip Relay 4. Relay Function Short-Time Delay Relays Current Setting(A) (1.15 × × Ir) Ir = In × × ... tr @ (1.5× Ir) 12.5 Maximum time delay(sec) Long-Time tr @ (6.0× Ir) Accuracy:±15% or below 100ms Delay(L) tr @ (7.2× Ir) 0.34 0.69 1.38...
  • Page 35 Technical catalog for Susol & Metasol ACB Instantaneous Current Setting(A) (1.15 × × Ir) Ir = In × × ... tr @ (1.5× Ir) 12.5 Maximum time delay(sec) Long-Time tr @ (6.0× Ir) Accuracy:±15% or below 100ms Delay(L) tr @ (7.2× Ir) 0.34 0.69 1.38...
  • Page 36 Digital Trip Relay 4. Relay Function Ground Fault Ir = In × × ... Current Setting(A) (1.15 × × Ir) tr @ (1.5× Ir) 12.5 Maximum time delay(sec) Long-Time tr @ (6.0× Ir) Accuracy:±15% or below 100ms Delay(L) tr @ (7.2× Ir) 0.34 0.69 1.38...
  • Page 37 Technical catalog for Susol & Metasol ACB Long-time, Short-time and Instantaneous Protection Technical catalog for Susol & Metasol ACB...
  • Page 38 Digital Trip Relay 4. Relay Function Ground Fault Protection...
  • Page 39 Technical catalog for Susol & Metasol ACB IDMTL Technical catalog for Susol & Metasol ACB...
  • Page 40 Digital Trip Relay 4. Relay Function PT A Curve...
  • Page 41 Technical catalog for Susol & Metasol ACB Relay Selection Standard Table Operating Time Accuracy Adj. Unit Delay Adj. Unit Pickup Setting Range Pickup Accuracy ±5% UV, under voltage 80V ~ OV_pickup ±5% OV, over voltage UV_pickup ~ 980V ±2.5% or *±10% Vunbal, Voltage Unbalance 6% ~ 99% rP, Reverse Power...
  • Page 42 Digital Trip Relay 4. Relay Function Optional Relays for P,S Type - Vunbal, Lunbal, OFR, UFR 1. Vunbal - Voltage Unbalace Protection Off/Alarm/DO setting available when unbalance over set value occurs to 3P voltage. 1) Pickup setting: 6% ~ 99% (Step: 1%) 2) Delay Time: 1.2 ~ 40 sec (Step : 0.1 sec) 3) Relay error: Pickup value 2.5% or * 10%, Operating time...
  • Page 43 Technical catalog for Susol & Metasol ACB Optional Relay - External CT Earth Leakage 1. Earth Leakage Relay with External CT The necessity of earth leakage relay with external CT Earth leakage relay with Internal CT (standard) operates in the range of 20% ~ 100% of the rated current. Thus, if the rated current of ACB increases, the standard operating current of earth leakage relay also increases.
  • Page 44 Digital Trip Relay 4. Relay Function Optional Relay - Earth Leakage (EL) 1. Earth Leakage Relay Standard Table Current setting (A) IΔn Setting Earth Leakage Time Delay(ms) Δt Min Trip Time(ms) Protection Accuracy : ±10%(IΔn≥1A) ±20%(IΔn=0.5A) (ZCP Needed) Δt Max Trip Time(ms) 1000 2.
  • Page 45 Technical catalog for Susol & Metasol ACB 5. Measurement Function Measurement Accuracy for A (Current), P, S Type Class. Measurement Element Detailed Relay Element Accuracy Remarks Line voltage Vab,Vbc,Vca Phase voltage Va,Vb,Vc Voltage Normal voltage V1(no accuracy) Reverse voltage V2(no accuracy) Line current Ia,Ib,Ic Current...
  • Page 46 Digital Trip Relay 5. Measurement Function Voltage Input / Specification for P, S Type 1. Voltage Input 1) Rated voltage input Measurement range 60V ~ 690V Relay range 80V ~ 900V 2) Voltage input method 3P4W : Connect R/S/T/N phase to the corresponding terminal of voltage dividing module 3P3W : Attach voltage of S phase to the terminal of N phase after connecting R/S/T phase to the corresponding terminal of voltage dividing module 3) Voltage accuracy : 1.0% (F/S) (min.
  • Page 47 Technical catalog for Susol & Metasol ACB Voltage / Current RMS Value for P, S Type 1. RMS Values Measurements that is required for every over current relay of P and S type are based on RMS values. 1) Low voltage system enclose much of harmonics elements due to non-linear loads at the feeder level. 2) Harmonics current overheats loads and equipments from its thermal element.
  • Page 48 Digital Trip Relay 5. Measurement Function Voltage / Current Unbalance for P, S Type 1. Definition of Unbalance Factor 1 1) Positive-phase-sequence component means a fundamental phase rotation of power system. 2) Negative-phase-sequence component means a phase rotation inversely to power system. 3) Zero-phase-sequence component means in-phase on R/S/T phases regardless of phase rotation of power system.
  • Page 49 Technical catalog for Susol & Metasol ACB Power calculation for P, S Type 1. Active Power Calculation 1) Active power is V I and it is defined as an integrated average about 1 cycle. 2) Therefore, according to the pulse angle difference between V and I, the active power could be consumed or produced.
  • Page 50 Digital Trip Relay 5. Measurement Function 3. Apparent Power Calculation 1) Apparent power defines as current RMS value x voltage RMS value. √ 2) In case of no harmonic factors, the power equation formulates. 3) However, if harmonic is included, the equation of power does not formulate. 4) Thus, to avoid confusion of P and S type users, evaluate active and reactive power first and then evaluate √...
  • Page 51 Technical catalog for Susol & Metasol ACB Demand / Peak Demand for P, S Type 1. Demand Measurement, Peak Demand Record 1) P and S type Demands are calculated with an average of the active power during the Demand cycle. 2) Demand cycle can be set by divisors of 60 minutes (1, 2, 3, 4, 5, 6, 10, 15, 20, 30, 60 minutes).
  • Page 52 Digital Trip Relay 5. Measurement Function Frequency Measurement and Harmonics Calculation for P, S Type 1. Frequency Measurement 1) P and S type frequency is measured through the Zero-Crossing method based on hardware style. 2) Zero-Crossing method has a fatal disadvantage for the harmonics, hence frequency detecting circuit is arranged by passing Low-Pass Filter to make Cut-Off under 100Hz.
  • Page 53 Technical catalog for Susol & Metasol ACB THD (Total Harmonic Distortion), TDD (Total Demand Distortion) for P, S Type 1. THD Definition 1) THD is a single value which expresses the total harmonic distortion. 2) THD value measured is getting higher when total harmonics increases. THD value comes into ‘0’ under no harmonics state.
  • Page 54 Digital Trip Relay 6. IO (Input-Output) Port IO type and Configuration P and S type have DI(Digital Input, 2 terminals) and DO(Digital Output, 4 terminals). 1) DO 4 terminals is composed of two types ( Open-Collector 1terminal, Solid Relay 3 terminals) 524-534-544-513 ( Solid Relay 3 pieces, 513 is relay’s common terminal.) Z3-Z4 (ZSI output, Open-Collector, Z3-Collector, Z4-Emitter) 2) DI 2 terminals are all Dry Contacts, contact input voltage is 3.3V.
  • Page 55 Technical catalog for Susol & Metasol ACB 1. What is ZSI? Zone-selective interlocking diminishes time-delay that cause problems for machines. It is used to minimize pressure on all kinds of electric machineries under high-demanding conditions. 1) While short time-delay or ground fault accidents are happening at ZSI built-in system, the machinery at accident sites is sending a signal through its lines to halt upperstream machinery’s operation.
  • Page 56 Digital Trip Relay 6. IO (Input-Output) Port The use of Remote Reset In case the ACB operates due to accidents or over current, the OCR indicates the information of the accident through the LCD and LED. To operate it for the next accident, the P and S type have to be Reset. 1) Methods to Reset the P and S type are to push the Reset button and to Reset by short-circuiting Remote Reset.
  • Page 57 Technical catalog for Susol & Metasol ACB 1. The use of Solid Relay P and S type are equipped with 3 Solid Relays. 1) Terminal number is 524-534-544-513 (513 is Relay common terminal) and are contacts at Normal Open state. 2) Relay of 3 can be variously (overlapping) used by setting the environment.
  • Page 58 Digital Trip Relay 6. IO (Input-Output) Port 4. RS-485 MODBUS COMM. Other Network P and S type are equipped with RS-485 communica- tion terminal. 1) Terminal number is 485+ 485-. Local 2) Communication available at speed of 9600bps, Systems 19200bps, 38400bps, 57600bps. Standard for P, S Type 3) There is no terminating resistance within the device.
  • Page 59 Technical catalog for Susol & Metasol ACB Digital Trip Relay Accessory 1. TRIO Unit 2. Profibus-DP Communication 3. MODBUS 4. Temperature 5. OCR Tester Technical catalog for Susol & Metasol ACB...
  • Page 60 Digital Trip Relay Accessory 1. TRIO Unit Function and Characteristics 1) Temperature and Remote I/O Unit (Below TRIO Unit) has remote closing, breaking, and temperature monitoring functions. 2) TRIO Unit aim for the open network selected by international communication protocol standard. 3) TRIO Unit can transfer information collected from ACB using RS-485/MODBUS and Profibus-DP communication.
  • Page 61 Technical catalog for Susol & Metasol ACB Terminal Configuration 1 Mark Explanation Power(+) Power Input Terminal (+) Power(-) Power Input Terminal (-) CB Close (+) Circuit Break Close Terminal (+) CB Open (+) Circuit Break Open Terminal (+) Digital input #1 (+) Digital Input #1 Terminal (+) Digital input #2 (+) Digital Input #2 Terminal (+)
  • Page 62 Digital Trip Relay Accessory 1. TRIO Unit Terminal Configuration 3 Explanation MODBUS Profibus - DP No use No use Female No use No use Tx (+) RED B No use RTS* No use No use 5V (+) No use No use Tx (-) Green A No use...
  • Page 63 Technical catalog for Susol & Metasol ACB Product Input Rating Category Scope Note Apply Voltage 220V Rated Frequency 60Hz Rated Control Power AC 92 ~ 253V ( Free Voltage ) CB Condition General Type DI TTL, Dry Type [Voltage 3.3V~5V] Power Consumption Normal : Below 5W Operation : Below 10W...
  • Page 64 Digital Trip Relay Accessory 2. Profibus - DP Communication Profibus - DP Communication Introduction Profibus is selected, applied, and produced independently by the manufacturer (Vender-independence). It is approved for vender’s independence and openness according to Profibus standard EN50170 which is a open field-bus standard that is extensively used in a process automation.
  • Page 65 Technical catalog for Susol & Metasol ACB Network Configuration Electric network can be composed of bus or tree. RS-485 transferring method : To connect profibus load, bus configuration is displayed using bus connector and bus terminal. Simple and standardized loading and connecting concept Easy installation Cable Connecting...
  • Page 66 Digital Trip Relay Accessory 3. MODBUS Protocol Under RTU Mode, a data is processed on the bit-basis allowing to use only 8 bits when processing one data. More heavily condensed code will enable RTU Mode to handle large quantity of information comparing with other buses at the same transferring speed.
  • Page 67 Technical catalog for Susol & Metasol ACB 4. Temperature Sensor TRIO Unit can measure temperatures among ACB’s terminals, and detect its degree of loads from the heat. In this equipment, it is possible to measure breaker’s terminal temperature by using thermistor and RTD. RTD Summary Temperature-rise Limit Regulation (IEC60947-2) Resistance Temperature Detector...
  • Page 68 Digital Trip Relay Accessory 5. OCR Tester OCR Tester Characteristic Under no power condition, simple tests can be performed regarding trip relay’s long time delay/short time delay / instantaneous / ground fault. 1. Maximum of 17In can be entered. 2. Enter current value size and phase on each of R/ S/ T/ N. 3.
  • Page 69 Technical catalog for Susol & Metasol ACB Installation and Service Condition 1. Safety Precaution 2. Receiving and Unpacking 3. Installation Method 4. Service Condition Technical catalog for Susol & Metasol ACB...
  • Page 70 Installation and Service Condition 1. Safety Precaution Outline for Safety Operation This manual does not cover all possible contingencies, variations and details that may arise during installation, operation or maintenance of this equipment. If the user has questions regarding a particular installation, contact the local LSIS sales office.
  • Page 71 Technical catalog for Susol & Metasol ACB 1. Be sure to tighten the terminal screws to the torque specified in the instruction manual. 2. Do not install in areas subject to high temperature, high humidity, dust, corrosive gas, vibrations, and Caution shocks.
  • Page 72 Installation and Service Condition 1. Safety Precaution Receiving Warning A visual inspection - inside and out - should be performed immediately upon receipt of the ACB and before removing it from the truck. Shipping papers should be checked to ensure all boxes or other accompanying pieces have been received.
  • Page 73 Technical catalog for Susol & Metasol ACB 2. Receiving and Unpacking Receiving A visual inspection - inside and out - should be performed immediately upon receipt of the ACB and before removing it from the truck. Shipping papers should be checked to ensure all boxes or other accompanying pieces have been received.
  • Page 74 Installation and Service Condition 3. Installation Method Installation of Draw-out Type Install draw-out type according to the instruction given below. A (Cradle rail) 1. Securely install the cradle at the bottom with M12 bolts (4EA). 2. Pull the extension rails of cradle forward.
  • Page 75 Technical catalog for Susol & Metasol ACB 4. Service Condition Normal Service Conditions If under ordinary conditions the following normal working conditions are all satisfied, Susol ACB should be used under this condition unless otherwise specified. 1) Ambient temperature : A range of max. + 40° to min. - 5° is recommended. However, the average temperature of 24 hours does not exceed +35°.
  • Page 76 Installation and Service Condition 4. Service Condition Altitude Susol ACB is designed for operation at altitudes under 2000m. At altitudes higher than 2000m, change the ratings upon a service condition. Altitude [m] 3,000 2,000 4,000 5,000 Item Withstand voltage [V] 3,500 2,500 3,150...
  • Page 77 Technical catalog for Susol & Metasol ACB Operation 1. Manual Operation 2. Electrical Operation 3. Draw-in Operation 4. Draw-out Operation Technical catalog for Susol & Metasol ACB...
  • Page 78 Operation 1. Manual Operation Before opening or closing the breaker equipped with an under voltage tripping device, control voltage should be applied. Caution Manual Charging 1. Charge the handle 7~ 8 times with full strokes. 2. When the closing spring is completely charged, the charging indicator shows ‘‘CHARGED’’. Charge handle ACB off and charged...
  • Page 79 Technical catalog for Susol & Metasol ACB 2. Electrical Operation Electrical Operation Closing operation is done by charging the closing spring from remote control. If pushing trip button, closing spring is automatically charged by a geared motor and a circuit breaker is closed by closing button. Electrical Closing 1.
  • Page 80 Operation 1. 수동조작 3. Draw-in Operation 1. Operating handle of cradle only can be inserted when pushing OFF button. 2. If locking device for draw in/out protrudes, stop handle Caution operation and move to next procedure as it indicates the complete operation of ongoing process. 4.
  • Page 81 Technical catalog for Susol & Metasol ACB 4. Draw-Out Operation 1. Please stop handle operation when draw in/out locking device protrudes. 2. Draw in or out by moving handle right or left side when draw in/out locking device can not be inserted. Caution Draw-Out Operation Procedure 1.
  • Page 82 Protective Coordination 1. Protective Coordination 2. Selectivity Techniques 3. Discrimination Table...
  • Page 83 Technical catalog for Susol & Metasol ACB 1. Protective Coordination The recent development on low voltage protective device is on steady increase in quantity and high breaking capacity achievement is on the way by breakthroughs in technology to accommodate larger power supply system. Result from these process is a development of over 6000A product type and 150kA breaking capacity circuit breaker to satisfy requests from bigger power supply system.
  • Page 84 Protective Coordination 2. Selectivity Techniques There are three basic approach to build power protection system; fully rated, discrimination, and cascading (series -combination rated). Common goal of different approach is to protect system and machineries, yet installment expenses or continuity of power supply under accidents have discrepancies for each approach. Fully Rated Protection In fully rated system, every breaker is arranged to operate independently on its own rating.
  • Page 85 Technical catalog for Susol & Metasol ACB By utilizing discrimination system, continuity of electricity supply can be maximized. Fully rated system require every breaker to have breaking capacity that can cover maximum fault current. However by applying discrimination system, breaker that is the closest to accident point will only be operated to disconnect the fault block from its power system.
  • Page 86 Protective Coordination 2. Selectivity Techniques 3. Time Selectivity Time selectivity is achieved when upstream breaker has longer time delay than downstream breaker about the same accident current. The optimum arrangement of this system can be organized with upstream breaker’s electronic trip unit which can perform short time delay setting. Upstream breaker should be able to perform time -delay function long enough for downstream breaker to eliminate the accident.
  • Page 87 Technical catalog for Susol & Metasol ACB ZSI (Zone Selective Interlocking) This ZSI technique allow breakers to exchange communication signals and to provide more precise discrimination at upstream trip unit level. For instance (see picture 6), ZSI technique is applied to D2 and D1, and hypothesize that both trip units detected the fault in downstream area.
  • Page 88 Protective Coordination 2. Selectivity Techniques IDMTL (Inverse Definite Minimum Time Lag) IDMTL (shown on picture 8) is a method to select a degree of slope under long time delay range. Picture 8. Characteristics of IDMTL IDMTL is used to improve breaker’s discrimination ability under overload protecting area. Not only long time delay characteristic curve’s trip threshold can be changed but also degree of slope can be adjusted during its time delay area.
  • Page 89 Technical catalog for Susol & Metasol ACB 3. Discrimination Table Rated Voltage : AC 220/240V Main Breaker : Susol ACB / Branch Breaker : Susol MCCB Below protective coordination table is based on ACB equipped with OCR under arrangement of short time delay trip current as 10 times of rated current.
  • Page 90 Protective Coordination 3. Discrimination Table Rated Voltage : AC 380/415V Main Breaker : Susol ACB / Branch Breaker : Susol MCCB Below protective coordination table is based on ACB equipped with OCR under arrangement of short time delay trip current as 10 times of rated current. Susol AH Series Upstream Product...
  • Page 91 Technical catalog for Susol & Metasol ACB Rated Voltage : AC 480/500V Main Breaker : Susol ACB / Branch Breaker : Susol MCCB Below protective coordination table is based on ACB equipped with OCR under arrangement of short time delay trip current as 10 times of rated current.
  • Page 92 Accessories 1. Main Body Mounting 2. Cradle Mounting 3. External Mounting 4. Optional Accessories...
  • Page 93 Technical catalog for Susol & Metasol ACB 1. Main Body Mounting ON / OFF Button Lock To prevent the manual operation of closing / Trip button by mistake 1. Installation Method 1) Install it to the correct place of Front cover. ON / OFF BUTTON LOCK 2) Install ON / OFF BUTTON LOCK by using two bolt screws to pass through the holes on inside Front cover as shown in figure above.
  • Page 94 Accessories 1. Main Body Mounting Insulating Barrier Between Poles / Phases 1. Externals Prevent the arc which may arise and result in short-circuit between � phases in advance Inserting direction The installation methods are divided into Fixed type and Draw-out type. �...
  • Page 95 Technical catalog for Susol & Metasol ACB 2. Cradle Mounting Mechanical Interlock It interlocks two or three circuit breakers mechanically by controlling closing and trip operation mutually. It is used for distribution panel or protecting device and has two types, Bar type (Interlocking of two ACBs) and Wire type (Interlocking of three ACBs) 1.
  • Page 96 Accessories 2. Cradle Mounting MOC (Mechanical Operated Cell Switch, MOC) It is the contacts (10a10b) which indicate the ON / OFF condition of ACB by operating mechanically only when ACB is in “CONNECTED” position and two types are available, Standard type and High capacity type. The contact capacity is as same as aux.
  • Page 97 Technical catalog for Susol & Metasol ACB 2. Installation Method 1) The figures below show the Safety shutter connected with Sutter lock. The arrow printed on Guide shutter and Shutter lock should be upwards. Mounting direction of Shutter lock Guide shutter 2) Lock after setting up Key lock through Shutter lock as shown in figure to make Guide shutter not pushed.
  • Page 98 Accessories 2. Cradle Mounting Cell Switch, C It is a conctat which indicates the present position of ACB (CONNECTED, TEST, DISCONNECTED) (�Common use for all types) �Contact configuration 4C : 1 Disconnected 1 Test 2 Connected 8C : 2 Disconnected 2 Test 4 Connected (4CX2EA) ※...
  • Page 99 Technical catalog for Susol & Metasol ACB Miss Insertion Prevent Device (MIP) �If the ratings of ACB does not match with cradle, it mechanically prevents ACB from being inserted into cradle of ACB. �Classification upon ratings 1. Externals and Operating Characteristics Naming holes according to the position <Cradle>...
  • Page 100 Accessories 2. Cradle Mounting 3. The List of Combination Cradle Main Body Cradle Main Body ABCD BCDE ABCE BCDF ABCF BCDG ABCG BCEF ABDE BCEG ABDF BDEF ABDG BDEG ABEF BDFG ABEG CEDF ABFG CEDG ACDE CEFG ACDF DEFG ACDG ACEF ACEG ACFG...
  • Page 101 Technical catalog for Susol & Metasol ACB 3. External Mounting Lift Hooking It is a device for easy transport of ACB. 1. Externals Lift hooking hole 2. Installation Method Hook Lifter to the both sides of Arc cover and insert the Lift hooking through holes of Lifter to lift up ACB. Arc cover Lifter ATS Controller with ACBs...
  • Page 102 Accessories 3. External Mounting Model Type ATSC-110 ATSC-110-C ATSC-220 ATSC-220-C Rated Voltage AC110V AC220V Possible Voltage Range AC 93.5 (±5%) ~ 126.5V (±5%) AC 187 (±5%) ~ 235V (±5%) Frequency 50Hz / 60Hz Power Consumption 15.4W (apparent power) 4-Location Switch ■...
  • Page 103 Technical catalog for Susol & Metasol ACB 2. In Case of 2 ACBs with ATS Controller If one of ACB is closed, another is not closed mechanically or electrically due to interlocking system. Operating Status � 3. In Case of 3 ACBs with ATS Controller If two ACBs among three of them are closed, the other is not closed mechanically or electrically due to interlocking system.
  • Page 104 Accessories 3. External Mounting UVT Time Delay Controller It is a device which makes ACB tripped automatically to prevent the accident on load side due to under voltage or power breakdown. There are two types, Instantaneous type and time delay type. Rated Voltage[Vn] Operating Voltage Range[V] Power Consumption[VA or W]...
  • Page 105 Technical catalog for Susol & Metasol ACB 2. Installation Method 1) Tighten one screw for upper left side and another for lower right side of UVT Controller. Guide Rail Holder 2) Tighten bolt through hole on LEFT PLATE of Cradle. Mounting bolt holes ※...
  • Page 106 Accessories 3. External Mounting OCR Tester It is an exclusive testing device which can test the function of OCR. �Portable Test Kit �Full-function Test kit � Able to check the operating time of long / short time delay setting and phase current. Main cover Magnification of connector connecting part Connector...
  • Page 107 Technical catalog for Susol & Metasol ACB Door Frame It is used as an external guide when structuring the protrude type of panel and it improves the appearance of ACB by attaching it to the panel door. 1. Externals Panel Rubber Frame Door...
  • Page 108 Accessories 3. External Mounting Dust Cover 1. Externals �Attach it to Door frame �It protects the product against the dust (IP5X) which may cause faulty operation and mounted to protrude type of panel. �It is transparency to show users the front side of ACB and Cover can be closed even if ACB is drawn out to TEST position.
  • Page 109 Technical catalog for Susol & Metasol ACB Condenser Trip Device (CTD) 1. Externals and Ratings �It gets a circuit breaker tripped electrically within regular time when control power supply is broken down and is used with Shunt coil, SHT. In case there is no DC power, It can be used as the rectifier which supplies DC power to a circuit breaker by rectifying AC power.
  • Page 110 Accessories 4. Optional Accessories Key Lock : K1 �It is locking device which prevents a certain circuit breaker from being operated by user’ s discretion when two or more circuit breakers are used at the same time. �K1: Preventing mechanical closing 1.
  • Page 111 Technical catalog for Susol & Metasol ACB Key Interlock : K2 �3 circuit breakers can be arranged for the continuous power supply to the load side and be interlocked mutually by using Key Lock embedded in each circuit breaker. LOAD-1 LOAD-2 ACB-1 ACB-2...
  • Page 112 Accessories 4. Optional Accessories Auxiliary contact (AX) It is to monitor ON/OFF position of ACB from remote place. 1. Standard Classification Low Capacity High Capacity 2000, 5000AF 4000, 6300AF 2000, 5000AF 4000, 6300AF Ratings High Capacity Standard Classification Remark Resistive Load Inductive Load Resistive Load Inductive Load...
  • Page 113 Technical catalog for Susol & Metasol ACB 2. Installation Method 1) Put the projections on the bottom of aux. switch into the holes on UPPER PLATE of mechanism and then assemble Main shaft link and Aux. switch link. 2) Install ON/OFF BUTTON LOCK to the holes of Front base by tightening 2 bolts as shown in figure below. 3) Installation method is same for low/high capacity of Aux.
  • Page 114 Accessories 4. Optional Accessories Counter �It displays the total number of ON/OFF operation of ACB. 1. Externals Projection Bolt Spot Counting Lever Display 2. Installation Method 1) Operate Charge Handle two times up/downward. � For easy assembly Projection hole Counting lever hole Bolt spot 2) Insert the projections of counter to the bottom part of SIDE PLATE of mechanism and put counting lever into...
  • Page 115 Technical catalog for Susol & Metasol ACB Charging Motor 1. Externals �Charge the closing spring of a circuit breaker by the external power source. Operating voltage range is in the range of 85%~110% Vn (IEC 60947). � � Common use for all types Motor Gear Main Axis...
  • Page 116 Accessories 4. Optional Accessories 2) Connect manual charge handle axis of mechanism in main body and main axis of charge motor. Charge Motor Manual Charge Assembly Hole Handle Axis 3) Tighten with M6 bolt after fitting the bottom of charge motor into the bottom of mechanism. Charge Motor Assembly Hole...
  • Page 117 Technical catalog for Susol & Metasol ACB Safety Shutter 1. Externals �It is the automatic safety device which prevents the connectors of main circuit from being contacted with outside when drawing out ACB and Shutter is only opened during draw-in operation. Plate Guide Ass’...
  • Page 118 Accessories 4. Optional Accessories 2. Installation Method 1) It is mounted into cradle and easily attachable. Insert 2 GUIDE ASS’ Y into the hole on BASE ASS’ Y of cradle first as shown in figure below. Note 1. It can be installed only when putting it into the knob with its own particular direction. Note 2.
  • Page 119 Technical catalog for Susol & Metasol ACB 2) Arrange two shutter plates facing each other in the assembly process. Before Assembly After Assembly 3) Place Shutter plate at an angle as shown in figure below after pushing GUIDE ASS’ Y completely. Insert the bottom of Shutter plate first and then put the projections of BASE into the assembly hole of Shutter.
  • Page 120 Accessories 4. Optional Accessories 5) Fit the projections of Shutter plate and the hole of guide for the operation of Shutter plate and then release the Guide pushed. Projections and groove for operating Shutter plate Shutter Plate Guide Shutter Plate Guide Place a projection matching with its groove, or position two triangle labels to be on the same line.
  • Page 121 Technical catalog for Susol & Metasol ACB Under Voltage Trip Device, UVT �It trips a circuit breaker automatically when its supply/control voltage drops under specified value and it is mounted to internal circuit breaker. In case of using it with time delay type, connect it with UVT time delay controller as It is the instantaneous type.
  • Page 122 Accessories 4. Optional Accessories Ready-to-Close Contact 1. Externals �It interlocks with the mechanism of circuit breaker and indicates the status that the circuit breaker is ready to do closing operation. �When mechanism is in OFF position or in CHARGE. Contact is output with “ON” and it indicates that mechanism can be closed.
  • Page 123 Technical catalog for Susol & Metasol ACB Pad Lock / Position Lock 1. Externals ACB can be positioned in CONNECTED, TEST, DISCONNECTED. If main body of ACB is placed in 3 positions, It is locked and stopped when drawing in/out as operating handle does not operate. 1) If Lock operates, Draw-in/out button pops out as shown in fig.
  • Page 124 Accessories 4. Optional Accessories 2. Installation Method 1) Put the 6pcs of M6 Nut into both Arc Covers. M6 NUT 2) Put 6pcs of M6 Bolt into holes of Arc cover and both Side plates and then tighten them. Magnification M6 Bolt...
  • Page 125 Technical catalog for Susol & Metasol ACB Control terminal block COVER �It protects a circuit breaker from control terminals and foreign objects and name plate which describes the control terminal PIN is attached on to help user with easy operation. �8 types based on Cover Length 1.
  • Page 126 Accessories 4. Optional Accessories Fixing Block 1 1 . . E E x x t t e e r r n n a a l l s s It interlocks the main body of circuit breaker and cradle mechanically to fix the former in connected position. Therefore, all draw-in/outs are not available.
  • Page 127 Technical catalog for Susol & Metasol ACB Temperature Measuring Sensor �It alarms users through OCR when the temperature of circuit breaker is over specified value �It interlocks with the extra module for sensing the temperature. �The output line of sensor is connected to control terminal block Temperature Output Line and temperature measuring sensor is also connected to it.
  • Page 128 Accessories 4. Optional Accessories SLOW Closing Lever It is the Jig which makes it possible to check the contacting status between arc contact and main contact visually by slowing down the operating speed of them when closing under fully charged condition. Automatic Spring Release (Energy Release) �If a circuit breaker is put into service and mechanism is in “charged”...
  • Page 129 Technical catalog for Susol & Metasol ACB Handling and Maintenance 1. Transporting and Storage 2. Check points before inspection 3. Inspection and maintenance 4. Defects and Troubleshooting guideline Technical catalog for Susol & Metasol ACB...
  • Page 130 Handling and Maintenance 1. Transporting and Storage This breaker and cradle are designed to move easily by overhead lifting devices such as hoisters. You can use lifting hooks which is optional to move them without difficulty. All the carrying devices should be suited to the product’s permissible weight which is presented in Table.1.
  • Page 131 Technical catalog for Susol & Metasol ACB Precaution of Transporting 1.To lift the breaker (Fixed type), use the lifting hooks on the sides of the breaker, and lift with rope or something similar. 2. When placing the breaker on the ground, be careful not to drop or to impact the breaker. 3.
  • Page 132 Handling and Maintenance 2. Check Points Before Inspection Please read the following check points and caution carefully as they imply the critical contents which should be confirmed before performing the unpacking, inspection, or installation, etc. Check Points Upon Receiving 1. A visual inspection-inside and out-should be performed immediately upon receipt of the ACB and before removing it from the truck.
  • Page 133 Technical catalog for Susol & Metasol ACB 3. Inspection and Maintenance 2. Inspection method after trip operation of circuit breaker 1) Figure out what cause the trip operation. �Do not perform the closing operation before figuring out the cause of trip and removing it completely. �The relevant cause will be indicated with LED of OCR in advance and be reported to the circuit breaker by output signal of SDE contact.
  • Page 134 Handling and Maintenance 3. Inspection and Maintenance 4. Inspection method for moving contact condition The degree of damage of contact can be checked upon following inspection method periodically. 1) Separate arc chamber. 2) Close the circuit breaker and compare the condition of the moving contact with the below figure to decide whether it is to be replaced or not.
  • Page 135 Technical catalog for Susol & Metasol ACB 4. Defects and Troubleshooting Guideline Troubleshooting Guideline Types of Defect Cause Countermeasure 1. Check voltage. Replace damaged UVT. 1. Voltage does not exist or UVT is damaged. The breaker is opened but fault Trip Reset button does mot come out.
  • Page 136 Control Circuit and Dimension 1. Control Circuit 2. External Dimension...
  • Page 137 Technical catalog for Susol & Metasol ACB 1. Control Circuit This diagram is based on “CONNECTED” position of a circuit breaker and Opening, Motor charging, Releasing of locking plate should be normal condition. Technical catalog for Susol & Metasol ACB...
  • Page 138 Control Circuit and Dimension 1. Control Circuit Auxiliary switch “a” Auxiliary switch Auxiliary switch “b” 413 414 Charged signal Long time delay trip indicator 423 424 Charged signal communication Motor charging Closing Coil Shunt Trip Ground fault trip indicator C11 C12 2nd Shunt Trip Voltage input terminal of UVT Cell switch...
  • Page 139 Technical catalog for Susol & Metasol ACB 2. External Dimension Fixed Type 2000AF (630A~1600A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type(3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type(Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 140 Control Circuit and Dimension 2. External Dimension Draw-out Type 2000AF (630A~1600A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type (3P Plan View) ■ ■ Horizontal Type (4P Plan View) ■ ■ Horizontal Type (Side View) ■ ■ Vertical Type (3P Plan View) ■...
  • Page 141 Technical catalog for Susol & Metasol ACB Fixed Type 2000AF (2000A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type(3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type(Side View) ■ ■ Front Connection Type(3P Plan View) ■...
  • Page 142 Control Circuit and Dimension 2. External Dimension Draw-out type 2000AF (2000A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type (3P Plan View) ■ ■ Horizontal Type (4P Plan View) ■ ■ Horizontal Type (Side View) ■ ■ Front Connection Type(3P Plan View) ■...
  • Page 143 Technical catalog for Susol & Metasol ACB Fixed Type 4000AF (630A~3200A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type(3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type(Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 144 Control Circuit and Dimension 2. External Dimension Draw-out Type 4000AF (630A~3200A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type (3P Plan View) ■ ■ Horizontal Type (4P Plan View) ■ ■ Horizontal Type (Side View) ■ ■ Vertical Type (3P Plan View) ■...
  • Page 145 Technical catalog for Susol & Metasol ACB Fixed Type 4000AF (4000A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type(3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type(Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 146 Control Circuit and Dimension 2. External Dimension Draw-out Type 4000AF (4000A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type (3P Plan View) ■ ■ Horizontal Type (4P Plan View) ■ ■ Horizontal Type (Side View) OPERATING PANEL CENTER 12.5 ■...
  • Page 147 Technical catalog for Susol & Metasol ACB Fixed Type 5000AF Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type(3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type(Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 148 Control Circuit and Dimension 2. External Dimension Draw-out Type 5000AF Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type (3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type (Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 149 Technical catalog for Susol & Metasol ACB Fixed Type 6300AF (4000~6300A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type(3P Plan View) ■ ■ Horizontal Type(4P Plan View) ■ ■ Horizontal Type(Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 150 Control Circuit and Dimension 2. External Dimension Draw-out Type 6300AF(4000~6300A) Front View [3P] Front View [4P] Conductor ■ ■ Horizontal Type (3P Plan View) ■ ■ Horizontal Type (4P Plan View) ■ ■ Horizontal Type (Side View) ■ ■ Vertical Type(3P Plan View) ■...
  • Page 151 Technical catalog for Susol & Metasol ACB Ordering Sheet 1. Susol/Metasol ACB Technical catalog for Susol & Metasol ACB...
  • Page 152 Ordering Sheet 1. Susol/Metasol ACB AN, AS type is not available for S Meter P(Power), S(Supreme) Meter is also available for Generator protection 5. P, S Meter needs the accessory(VDM) for voltage measurement Charge method : Charging completion contact(1b) is basically installed Automatic spring discharge device Automatic spring discharge device Electrical Remote Reset...
  • Page 153 Technical catalog for Susol & Metasol ACB Memo Technical catalog for Susol & Metasol ACB...
  • Page 154 Technical Materials Memo...
  • Page 155 Technical catalog for Susol & Metasol ACB Title : Technical catalogue of Susol& metasol ACB Document No : Tech, ACB 695-001 Issued team : Electric equip.) Technology management team Issued date : June, 2007 This technical document can be revised or withdrawn at any time without prior notice.
  • Page 156 S u p e r S o l u t i o n Leader in Electrics & Automation � � HEAD OFFICE Yonsei Jaedan Severance Bldg., 84-11, Namdaemunro 5-ga, Jung-gu, Seoul 100-753, Korea Te l. (82-2)2034-4870 Fax. (82-2)2034-4713 � � Cheong-Ju Plant Cheong-Ju Plant #1, Song Jung Dong, Hung Duk Ku, Cheong Ju, 361-720, Korea...
