OPERATOR'S MANUAL
EPJ-25 ELECTRIC PALLET JACK

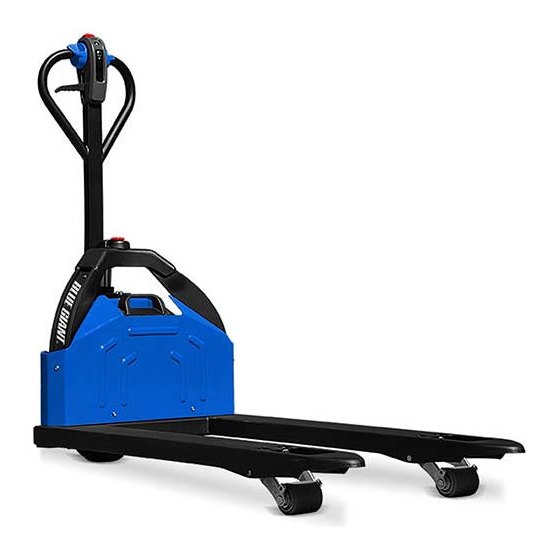

ACTUAL PRODUCT MAY NOT APPEAR EXACTLY AS SHOWN
WARNING
Do not operate or service this product unless you have read and fully understand
the entire contents of this manual. Failure to do so may result in property damage,
bodily injury or death.
ISSUE DATE: DECEMBER 7, 2020 REV. 1.0 (PART # 038-1074E)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPJ-25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blue Giant EPJ-25

Summary of Contents for Blue Giant EPJ-25

  • Page 1 OPERATOR’S MANUAL EPJ-25 ELECTRIC PALLET JACK ACTUAL PRODUCT MAY NOT APPEAR EXACTLY AS SHOWN WARNING Do not operate or service this product unless you have read and fully understand the entire contents of this manual. Failure to do so may result in property damage, bodily injury or death.
