HK Instruments PS Series Installation Instructions

INTRODUCTION

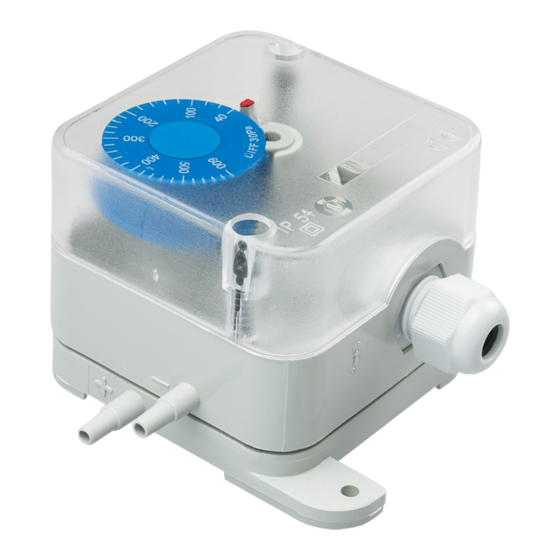

Thank you for choosing an HK Instruments PS series differential
pressure switch. The PS series is intended for use in commercial en-
vironments. It is designed with field selectable setpoint adjustment
to meet your application requirements.
The PS series differential pressure switches is comprised of PS300
with range from 30...300 Pa, PS500 with range from 30...500
Pa, PS600 with range from 40...600 Pa, PS1500 with range from
100...1500 Pa and PS4500 with range from 500...4500 Pa.
APPLICATIONS
PS series devices are commonly used in HVAC/R systems for:
• fan, blower and filter monitoring
• pressure and flow monitoring
SPECIFICATIONS
• valve and damper monitoring
SPECIFICATIONS
Performance
Accuracy (at applied pressure)
At low limit (Typical):
PS200: ± 5 Pa
PS300: ± 5 Pa
PS500: ± 5 Pa
PS600: ± 5 Pa
PS1500: ± 20 Pa
PS4500: ± 100 Pa
At high limit (Typical):
PS200: ± 20 Pa
PS300: ± 30 Pa
PS500: ± 30 Pa
PS600: ± 50 Pa
PS1500: ± 50 Pa
PS4500: ± 200 Pa
Switching differential:
PS200: 20 Pa
PS300: 20 Pa
PS500: 20 Pa
PS600: 30 Pa
PS1500: 80 Pa
PS4500: 250 Pa
Overpressure:
Proof pressure: 25 kPa
Burst pressure: 50 kPa
Technical Specifications
Media compatibility:
Dry air or non-aggressive gases
Measuring units:
Pa
Copyright HK Instruments 2018
DIFFERENTIAL PRESSURE SWITCHES
PS Series
• READ THESE INSTRUCTIONS CAREFULLY BEFORE
• Failure to observe safety information and comply with
• To avoid electrical shock or damage to equipment, disconnect
• To avoid potential fire and/or explosion do not use in potentially
• Retain these instructions for future reference.
• This product, when installed, will be part of an engineered
Measurement range:
PS200: 20-200 Pa
PS300: 30-300 Pa
PS500: 30-500 Pa
PS600: 40-600 Pa
PS1500: 100-1500 Pa
PS4500: 500-4500 Pa
Environment:
Operating temperature: -20...60 °C
Storage temperature: -20...85 °C
Humidity: 0 to 95 % rH, non condensing
Physical
Dimensions:
Case: 105 x 73 x 63 mm
Weight:
150 g
Mounting:
2 each 4.3 mm screw holes, one slotted
Materials:
Case: ABS
Cover: PC
Membrane: Silicone
Duct connectors: ABS
Tubing: PVC
Protection standard:
IP54
Electrical connections:
3 screw terminals
Wire: 12–24 AWG (0.2–1.5 mm2)
www.hkinstruments.fi
WARNING
ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS
DEVICE.
instructions can result in PERSONAL INJURY, DEATH AND/OR
PROPERTY DAMAGE.
power before installing or servicing and use only wiring with
insulation rated for full device operating voltage.
flammable or explosive atmospheres.
system whose specifications and performance characteristics
are not designed or controlled by HK Instruments. Review
applications and national and local codes to assure that the
installation will be functional and safe. Use only experienced and
knowledgeable technicians to install this device.
Cable entry:
Strain relief: M16
Knockout: 16 mm
Pressure fittings:
Male ø 5.0 mm
Electrical
Input:
24–250 VAC
Output:
NO / NC circuit
Electrical rating, resistive load:
3 A / 250 VAC (PS200: 0.1 A / 250 VAC)
Electrical rating, inductive load:
2 A / 250 VAC (PS200: -)
Conformance
Meets requirements for CE marking:
RoHS Directive 2011/65/EU
LVD Directive 2014/35/EU
WEEE Directive 2012/19/EU
COMPANY WITH
MANAGEMENT SYSTEM
CERTIFIED BY DNV GL
= ISO 9001 = ISO 14001 =
INSTALLATION
INSTRUCTIONS
RoHS 2
2011/65/EU
Installation version 6.0 2018
