CAN adapter CAN-CONTROL
manual v0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAN-CONTROL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika CAN-CONTROL

Summary of Contents for Teltonika CAN-CONTROL

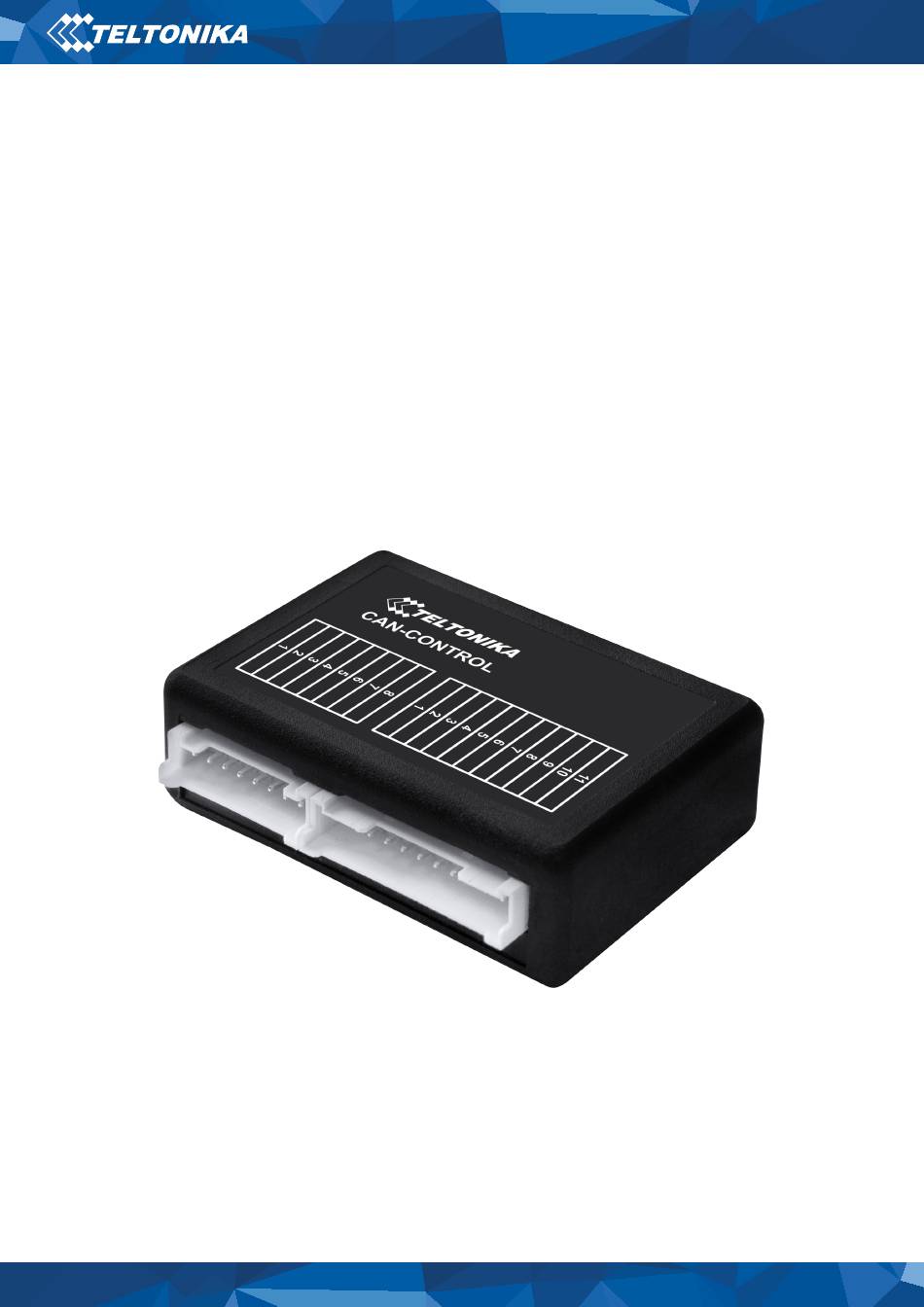

  • Page 1 CAN adapter CAN-CONTROL manual v0.1...

  • Page 2: Table Of Contents

    2.2. Connecting FMA1YX/FM11YX with CAN-CONTROL ..............4 3. CAN-CONTROL Configuration ....................5 3.1. CAN-CONTROL program number selection ................5 3.1.1 CAN-CONTROL program number configuration via SMS command ......5 3.1.2. CAN-CONTROL program number configuration via Configurator ........ 5 3.1.3 Selecting CAN-CONTROL program number manually ............ 6 3.2.

  • Page 3: Purpose Of Can Adapter Can-Control

    1. Purpose of Can Adapter CAN-CONTROL CAN-CONTROL is used to control various functions in light vehicles such us doors lock/unlock, windows open/close, turning lights and etc. With this adapter FMB1YX, FMA1XY, FM11XY devices is able to control certain functions as well as collect and send vehicle data.

  • Page 4: Connecting Fm Device With Can-Control

    Input 6. 2.1. Connecting FMB1YX with CAN-CONTROL • Connect Pin 5 to FMB1YX INPUT 5 pin and Pin 6 to INPUT 6 pin and connect CAN-CONTROL adapter to other end of the cable. • Connect Pins 1-8 as specified in wiring scheme.

  • Page 5: Can-Control Configuration

    3.1.2. CAN-CONTROL program number configuration via Configurator CAN-CONTROL program number can be set via Configurator, see Figure 2. Go to CAN Adapter (1) → Program Number (2). Enter program number and press Save to device (3) button that saves the current configuration into FMB1YX.

  • Page 6: Selecting Can-Control Program Number Manually

    3.1.3 Selecting CAN-CONTROL program number manually Steps to set program number: • Hold SWITCH down until LED starts blinking. • Release the SWITCH. • Then LED starts blinking and counting first digit of program number (one blink means digit 1, two blinks mean digit 2 etc).

  • Page 7: Fmb1Yx Can-Control Configuration

    3.2. FMB1YX CAN-CONTROL Configuration Because FMB1YX have CAN-CONTROL RX and TX in its own pinout, device configuration can be performed via Micro-USB or Blue-tooth connection via Configurator when CAN adapter is connected to the vehicle. When FMB1YX is connected to CAN-CONTROL, user can see all information that is received from the vehicle in Configurator →...

  • Page 8: Sms Configuration

    To configure CAN data connect CAN-CONTROL to CAN bus and to the FM11YX/FMA1YX device (Figure 5) wait 10 seconds. Car engine must be started. Figure 5 CAN-CONTROL basic connection scheme Disconnect CAN-CONTROL from FM11YX/FMA1YX, and connect PC USB cable to FM11YX/FMA1YX device (Figure 6).

  • Page 9: Sms/Gprs Command List

    3.4.2. SMS/GPRS Command List Table 2 Command List Command Description Response lvcansetprog # Set program number to LV-CAN200/ ALL-CAN300/CAN-CONTROL that is connected to FMB1YX. # three digit number that identity vehicle. lvcangetprog Get program number from LV-CAN200/ ALL-CAN300 that is connected to FMB1YX.

  • Page 10: Fma1Yx/Fm11Yx Io Elements

    For FMA1YX/FM11YX devices first ID number is always “2”, second and third ID numbers refers to specific CAN-CONTROL IO element (Table 3). And the last ID number refers to sections – Property; Generation Type; Low level, High level and Averaging Constant (Table 4).

  • Page 11: Fmb1Yx Io Elements

    3.4.4 FMB1YX IO Elements 3.4.4.1 CAN Adapter Mode Sets LVCAN mode: 0 – Auto Detect, 1 – LV-CAN200, 2 – ALL-CAN300, 3 - CAN-CONTROL. Minimum Maximum Default Goes with (depends on Value Value Value Value parameters) Type Send data with 0, if ignition is off...
  • Page 12 Parameter defines when event is sent: 0 – on range exit, 1 – on range entrance, 2 – both, 3 – monitoring, 4 – hysteresis, 5 – on changes, 6 – on delta change. Minimum Maximum Default Goes with (depends on Value Value Value...
  • Page 13 Parameter defines low value of triggered LVCAN property. This parameter is used to set thresholds for LVCAN properties to generate events. Minimum Maximum Default Goes with (depends on Value Value Value Value parameters) Type 1st LVCAN property parameter Uint8 priority (ID=45100) 1st LVCAN property parameter operand (ID=45101) 1st LVCAN property parameter...
  • Page 14 3.4.4.9 1 LVCAN property parameter averaging constant (ID=45105) Parameter defines LVCAN property sample length to average. Minimum Maximum Default Goes with (depends on Value Value Value Value parameters) Type 65535 1st LVCAN property parameter Uint16 priority (ID=45100) 1st LVCAN property parameter operand (ID=45101) 1st LVCAN property parameter High level (ID=45102)
  • Page 15 Minimum Maximum Default Goes with (depends on Value Value Value Value parameters) Type 1st LVCAN property parameter String Vehicle priority (ID=45100) speed 1st LVCAN property parameter operand (ID=45101) 1st LVCAN property parameter High level (ID=45102) 1st LVCAN property parameter Low level (ID=45103) 1st LVCAN property parameter Event only (ID=45104) 1st LVCAN property parameter...

  • Page 16: Avl Parameters Id

    „Total Fuel Used“ is sent to server multiplied by 10. Example: if value was 150.5 liters, „1505“ will be sent to server. * - Fuel consumed (counted), Total mileage (counted), Engine Work Time (counted) are parameters, which are counted after CAN-CONTROL is connected to CAN bus.
