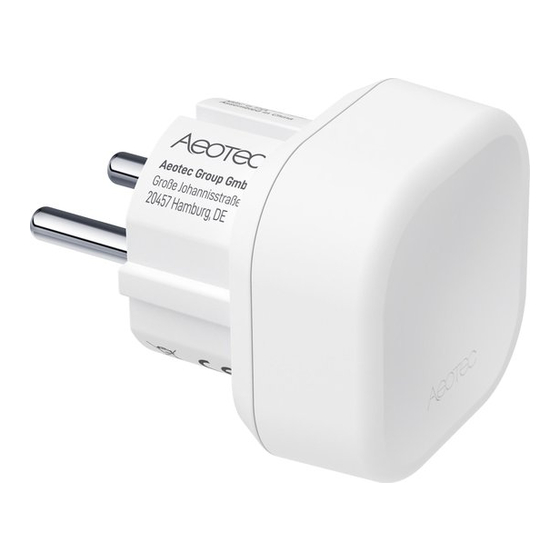

Aeotec Range Extender 7.
Aeotec Range Extender 7 was developed to amplify Z-Wave and Z-Wave Plus signals. It is powered by
Aeotec's Gen7 technology.
Important safety information.
Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec
Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or
reseller will not be held responsible for any loss or damage resulting from not following any instructions in this
guide or in other materials.
Keep product away from open flames and extreme heat. Avoid direct sunlight or heat exposure.
Range Extender 7 is intended for indoor use in dry locations only. Do not use in damp, moist, and/or wet
locations.
Advertisement
Table of Contents
Summary of Contents for Aeotec Range Extender 7
- Page 1 Keep product away from open flames and extreme heat. Avoid direct sunlight or heat exposure. Range Extender 7 is intended for indoor use in dry locations only. Do not use in damp, moist, and/or wet locations.
- Page 2 Select SmartStart inclusion. Scan the QR code located on the Range Extender 7. Within 10 minutes after powering your Range Extender 7, it will automatically get included into your Z-Wave gateway/controller/hub. LED will flash for 1 second after Repeater is powered, if successful, the LED will become a solid bright light for 2 seconds.
- Page 3 3. Press the Z-Wave Button on your Range Extender and quickly release the button (should only be a quick tap action on the button). Range Extender 7 will quickly flash its white LED up to 30 seconds or until it is paired successfully. If successfully paired, the LEDs light will become brighter.
- Page 4 If the LED sped up its flashing, you have held it for too long. Once the test is finished, the Range Extender 7 will forward a Power Level Report command to your Z-Wave gateway to display the communication quality. Some gateways do not support Power Level Command Class in its interface and may not show.
- Page 5 Make sure to only do this if your Z-Wave gateway/controller/hub is non-functioning or missing. Follow these steps to factory reset: • Press and hold the Z-Wave Button for 20 seconds to completely factory reset your Range Extender 7. • @1 second, LED will turn off.
- Page 6 Saftey Certifications: US: FCC/ETL AU: RCM EU: CE Plug Specifications. US: Type A AU: Type 21 EU: Type E/F UK: Type G Specifications subject to change without notice due to continuing product improvement.
