User manual
ONLINE YUNTO series
Models 500 – 1500
Italy
ONLINE UPS-Systems S.r.l.
Via Ferruccio Gilera 110
I-20862 Arcore (MB)
Phone +39 (039) 2051444
Fax
+39 (039) 2051435
www.online-ups.it
1 / 22
Y500-1500_usermanual_engl_updated_202001.docx
Switzerland
ONLINE USV-Systeme AG
c/o swizzconnexx
Pilatusstrasse 17
CH-5630 Muri
Phone
+41 (41) 5002868
Fax
+49 (89) 242399020
www.online-usv.ch
Advertisement
Table of Contents
Related Manuals for Online YUNTO series
Summary of Contents for Online YUNTO series
-
Page 1: User Manual
User manual ONLINE YUNTO series Models 500 – 1500 Germany Italy Switzerland ONLINE USV-Systeme AG ONLINE UPS-Systems S.r.l. ONLINE USV-Systeme AG Luise-Ullrich-Str. 8 Via Ferruccio Gilera 110 c/o swizzconnexx D-82031 Grünwald I-20862 Arcore (MB) Pilatusstrasse 17 CH-5630 Muri Phone +49 (89) 2423990-10... -
Page 2: Table Of Contents
Content User manual ..................1 Introduction ................. 4 Safety warnings ................6 Installation .................. 7 Checking the delivery ............7 Unpacking the UPS system ..........7 Checking the accessories ........... 8 Installation and setup ............8 Functions and controls ............. 10 Communication and interfaces .......... - Page 3 List of tables Table 1: Package contents ..............8 Table 2: Descriptions of display ............10 Table 3: Troubleshooting ..............16 Table 4: Specification ............... 19 3 / 22 Y500-1500_usermanual_engl_updated_202001.docx...
-
Page 4: Introduction
This means expensive repairs and downtime. With models from the YUNTO series from ONLINE, you are perfectly prepared for such eventualities. YUNTO protects sensitive applica- tions from data loss and operating downtime, whether they are price- sensitive entry servers or high-end PCs, telephone systems, network peripherals or NAS boxes. -
Page 5: Figure1: Yunto 500 - 800

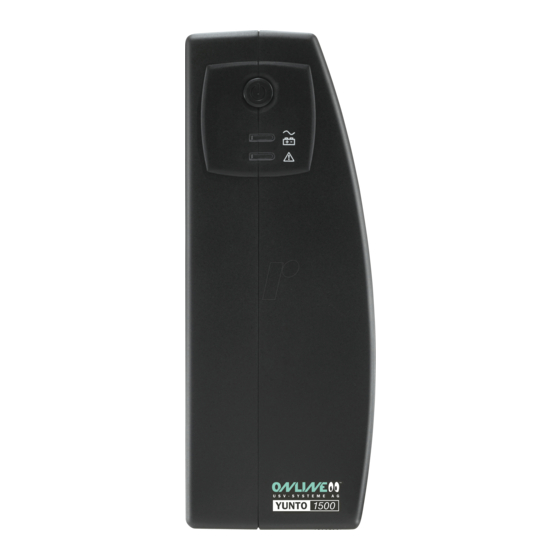

INTRODUCTION Figure1: YUNTO 500 - 800 Figure 2: YUNTO 1200 - 1500 5 / 22 Y500-1500_usermanual_engl_updated_202001.docx... -
Page 6: Safety Warnings
SAFETY WARNINGS 2. Safety warnings This manual contains important instructions that you must follow dur- ing the installation and maintenance of the UPS system and the bat- teries. Please read all the instructions in the manual before working with the device. Keep the manual in a safe place. CAUTION •... -
Page 7: Installation
INSTALLATION 3. Installation 3.1 Checking the delivery Keep the transport box and the packaging material for the carrier or sales point. If parts of the system have been damaged in transit, sub- mit a transport damage complaint to your supplier within 24 hours. If you only discover damage after accepting the device, please submit a complain for concealed damage. -
Page 8: Checking The Accessories
USB interface cable 10A power extension cable Quick start guide DataWatch software* Manual* *Download from www.online-ups.com Table 1: Package contents 3.4 Installation and setup The UPS system is delivered fully assembled. CAUTION Make sure that the overall rated performance of the load connected does not exceed the capacity of the UPS system. - Page 9 INSTALLATION PLEASE NOTE The internal batteries charge up to 90% of their full capacity in less than eight hours. ONLINE recommends charging the bat- teries for 48 hours after installation or extended periods of non-use. The battery charging starts as soon as the UPS system is con- nected to the supply network and switched on.
-
Page 10: Functions And Controls
FUNCTIONS AND CONTROLS 4. Functions and controls Together with the beeps, the LEDs on the front of the device indicate the operating status of the UPS. Figure 3: Control panel and display Switch / LED Function Alarm Switch on/off Normal operating mode: Green LED permanently lit Battery mode: Green LED flashes every 10 sec-... -
Page 11: Communication And Interfaces
10 to 1000 Mbit/s. 5.3 DataWatch software The YUNTO series is supplied as standard with DataWatch, the com- prehensive software solution for shutdown and management of the PC or server system and for monitoring the YUNTO and the power supply network. - Page 12 COMMUNICATION AND INTERFACES As a client/server application, DataWatch works in networks and on local workstations. Based on optional RCCMD agent (Remote Con- sole Command), multiple servers connected to a UPS system can be addressed and controlled across the network without additional hard- ware.
-
Page 13: Maintenance
MAINTENANCE 6. Maintenance 6.1 Care and maintenance To ensure a long service life of the system, the area around the UPS system should be kept clean and free of dust. If the area around the system is very dusty, clean the external surfaces of the system with a vacuum cleaner. - Page 14 MAINTENANCE CAUTION • Maintenance work must be carried out by a qualified techni- cian who is familiar with batteries and the necessary safety measures. Do not allow unauthorised personnel to handle the batteries. • Batteries pose the risk of an electric shock or injury due to high short circuit current.
-
Page 15: Disposing Of The Old Batteries Or Ups System
Find out from a local recycling centre how the old batteries or the UPS system should properly be disposed of. Old batteries can also be re- turned to ONLINE for disposal free of charge. Please contact Support (see Chapter 8 Support). -
Page 16: Troubleshooting
UPS system. mains voltage is availa- Reduce the load as re- ble. quired. Error Contact ONLINE support (see Chapter 8). Alarm sounds every 2 The battery is worn Replace the battery (see seconds while network through age or faulty. -
Page 17: Support
(UPS). Since 1988, the Ger- man company has focussed on the development, production, sale and support of UPS systems. Based on unit numbers sold, ONLINE prod- ucts are the German number one in the UPS market and internation- ally recognised because of their top quality and excellent support. -
Page 18: Technical Data
TECHNICAL DATA 9. Technical data 9.1 Specification Model YUNTO YUNTO YUNTO YUNTO 1200 1500 Order no. Y500 Y800 Y1200 Y1500 Electrical characteristics Rated power (VA / W) 500 / 300 800 / 480 1200 / 720 1500 / 900 Input voltage and toler- 230V (180 –... - Page 19 TECHNICAL DATA Operating conditions, standards and approvals Operating temperature 0 - 40°C Storage temperature -15 - 50°C 0 – 90% Rel. air humidity Noise level silent Safety EN62040-1: 2008 +A1: 2013 EMC, Performance EN62040-2: 2006 Approval Protection class IP20 Dimensions / Weight Dimensions (W x H x D) 80.1 x 177.5 x 232 90.9 x 238.7 x 282...
-
Page 20: Rear View
TECHNICAL DATA 9.2 Rear view Figure 4: Rear view of YUNTO 500 - 800 Figure 5: Rear view of YUNTO 1200 - 1500 20 / 22 Y500-1500_usermanual_engl_updated_202001.docx... -
Page 21: Ce Confirmation
TECHNICAL DATA 9.3 CE confirmation 21 / 22 Y500-1500_usermanual_engl_updated_202001.docx... -
Page 22: Warranty
Irrespective of the above exclusions, ONLINE shall under no circum- stances for direct, indirect, specific, auxiliary or subsequent damage caused as a result of the use of this product, even if ONLINE was informed about the possibility of such damage. In particular, ONLINE...
