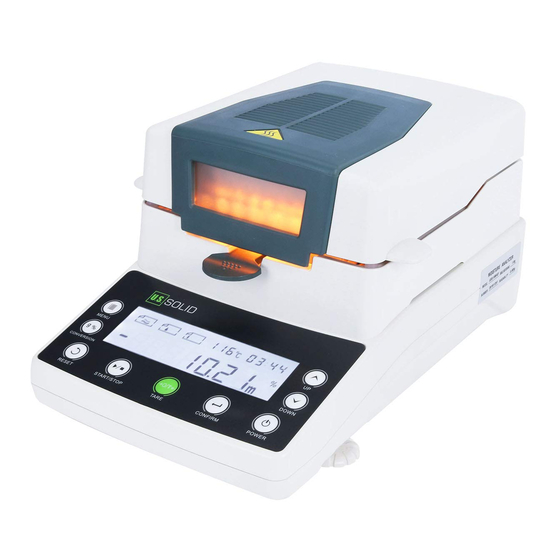

U.S. Solid USS-HMA01 Instruction Manual

Moisture analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
USS-HMA01 Moisture Analyzer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USS-HMA01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U.S. Solid USS-HMA01

Summary of Contents for U.S. Solid USS-HMA01

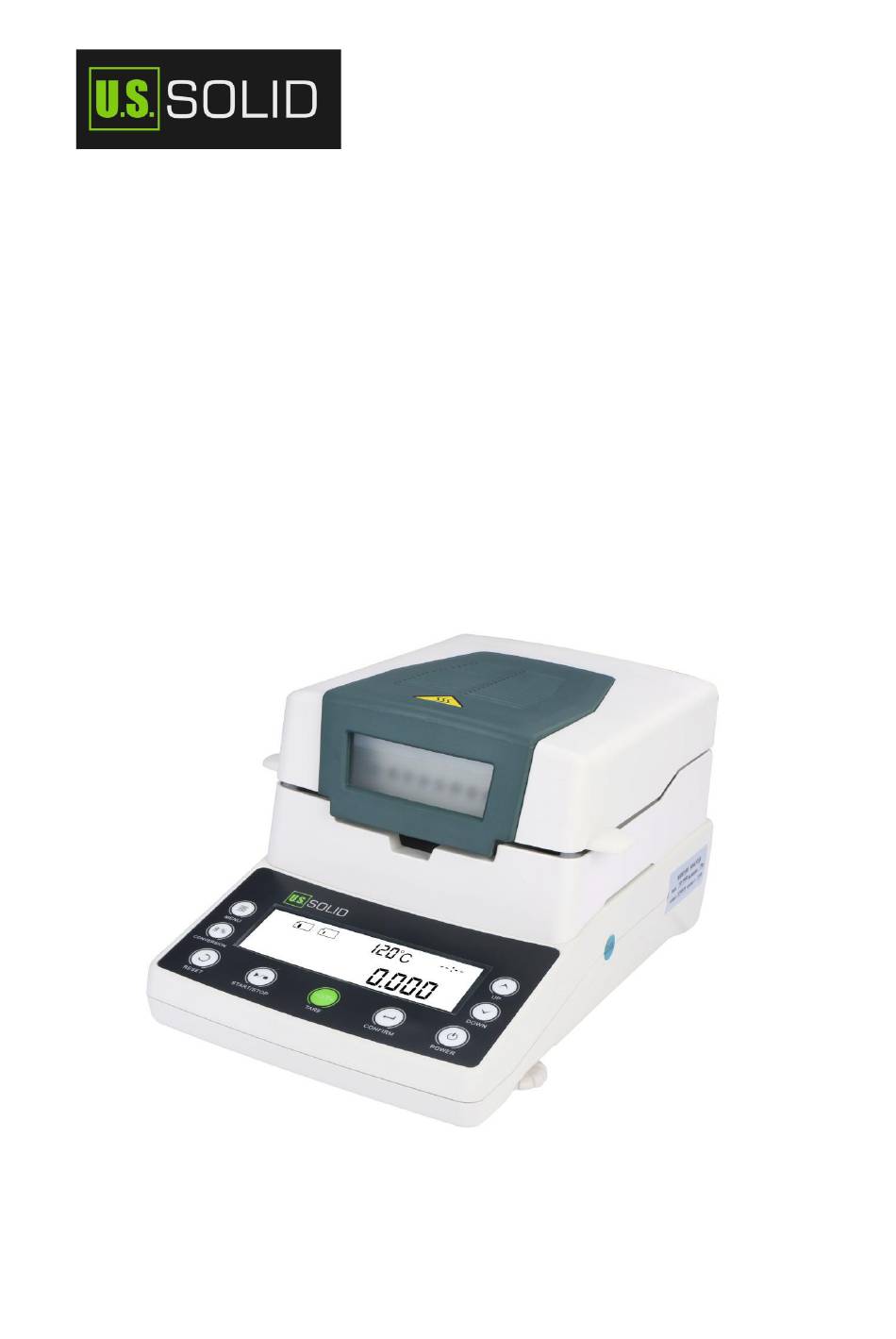

  • Page 1 Instruction Manual USS-HMA01 Moisture Analyzer...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction........................2 1.1 About Halogen Moisture Analyzer..............2 2. Safety Precautions...................... 3 2.1 Definition of Warning Symbols................3 2.2 Warnings......................3 2.3 Cautions......................5 3. Design and Function....................6 3.1 Components...................... 6 3.2 Keyboard......................8 3.3 Display Panel......................9 4. Installation and Adjustment..................11 4.1 Scope of Delivery.....................11 4.2 Selecting the location..................

  • Page 3: Introduction

    To make full use of the functions and performance of the U.S. Solid USS-HMA01 moisture analyzer, please read the manual completely and follow the usage instructions before installation and operation.

  • Page 4: Safety Precautions

    2. Safety Precautions U.S. Solid Moisture Analyzer qualifies as state-of-the-art technology and complies with all recognized safety rules. Improper use or handling, however, can result in damage and/or injury. Follow the precautions below to ensure safe and trouble-free operation of your moisture analyzer.
  • Page 5 • Avoid allowing the analyzer to get wet. It is not a water-resistant structure. Any leakage of liquid into the analyzer may cause damage to the analyzer or an electric shock to the user. • Use a power source (voltage, frequency, outlet type) adapted to the specification of the analyzer.

  • Page 6: Cautions

    • For substances that produce corrosive vapors when heated (e.g. acids), work with small amounts of samples as the vapor may condense on cooler housing parts and cause corrosion. 2.3 Cautions • Operate the Analyzer on a stable, rigid and flat table. •...

  • Page 7: Design And Function

    3. Design and Function 3.1 Components 1: Observation window 7: Sample pan handle 2: Heater cover 8: Draft shield 3: Heater 9: Display panel 4: Temperature sensor 10: Leveling foot 5: Sample pan 11: Keyboard 6: Sample pan holder...
  • Page 8 1: Fan 2: Power inlet 3: Level bubble 4: RS-232 connector...

  • Page 9: Keyboard

    3.2 Keyboard Description POWER Turns the power on or off START/STOP Starts or Stops the measurement Clears the display to zero (0) when a sample pan is TARE placed, and this key is pressed Opens the menu during the standby state (measurement MENU display) CONVERSION Switches measurement results...

  • Page 10: Display Panel

    3.3 Display Panel Name/Display Description Test status Maintains constant drying Standard temperature. Drying Increases the drying temperature Fast Mode rapidly. Increases the drying temperature Soft slowly. The test will automatically stop at a certain point in time (when the moisture content does Ending...
  • Page 11 While the sample is in the test state press Manual button “START/STOP” terminate the test. Preset an analysis time, the heating will stop automatically Timing when the specified time is reached. Length of time the test has been Testing Time Setting Preset drying time Testing...

  • Page 12: Installation And Adjustment

    · 1 Quality Certification Unpacking and checking the instrument for transport damage. Immediately inform U.S. Solid customer service if you have any complaints or parts are missing. Note: Keep all all of the packaging. This packaging guarantees the best possible...

  • Page 13: Selecting The Location

    4.2 Selecting the location Measurement performance of your moisture analyzer depends largely on the surrounding environments. Follow these guidelines to make sure the proper environmental conditions are met: • Operate the instrument only indoors. • Make sure that all parts of the instrument reach room temperature (5°C-30°C) before switching it on.

  • Page 14: Installing Parts

    4.3 Installing parts Procedure: 1. Lift the cover straight up 2. Install the draft shield Place the draft shield into the sample chamber. Align it with the hole. 3. Install the sample pan holder Place the pan holder on the axis of the moisture analyzer main unit. Align the pan holder with the draft shield, and insert them onto the bottom.
  • Page 15 Adjust the leveling feet of the Moisture Analyzer until the air bubble in the indicator is centered. The level indicator is located under the cover towards the rear of the Moisture Analyzer. Position of air bubble Adjustment method Turn both feet clockwise down Turn both feet counterclockwise Turn left foot counterclockwise, right foot...

  • Page 16: Connect To Power

    4.5 Connect to power Warning: • To prevent electric shock, be sure to use the 3-pin power cord with equipment grounding connector. • Check to make sure the voltage indicated on the moisture analyzer data label matches the local line voltage. If it is does not match, do not connect the moisture analyzer to the power source.

  • Page 17: Settings And Calibration

    5. Settings and calibration 5.1 Measurement Methods Setting 5.1.1 Preset and storage of measurement methods The analyzer can store a total of 16 groups of measurement methods from 0 to F. Test settings such as drying mode, ending mode, and drying time can be set for each group.

  • Page 18: Drying Mode Setting

    3. Confirm by pressing the “CONFIRM” button, the drying mode flashes. 5.1.2 Drying Mode setting Press the “UP” or “DOWN” to select the required drying mode and confirm by pressing “CONFIRM”. 1. Standard drying mode This mode is the default setting and is suitable for most samples. The heating temperature can be set, the sample is heated to the set temperature during the test, and the temperature is maintained until the test ends automatically.

  • Page 19: Ending Mode Setting

    2. Fast drying mode This mode is suitable for samples with high moisture content. The heating temperature can be set, and the initial temperature will exceed the set value, and will later drop to the set temperature and remain until the test ends automatically.
  • Page 20 1. Automatic ending mode The test will automatically stop at a certain point in time (when the moisture content does not change within 45 seconds) in the automatic stop mode. This mode takes effect after 15 seconds of heating. After the test is completed, the display shows the sample moisture content, heating time and current temperature.

  • Page 21: Calibration

    5.2 Calibration Weight calibration is the correction of the difference between the measured value displayed and the true weight (mass) of a sample, or the reduction of the difference to a level within specified permissible error limits. Procedure: 1. Press and hold the “Reset” button until “CAL” is displayed. 2.

  • Page 22: First Measurement

    First Measurement Steps to carry out your first measurement: 1. Press the “MENU” button and the serial number of the storied measurement method will be displayed. 2. Use the “UP” or “DOWN” buttons to select desired serial number of a method and confirm it by pressing the “CONFIRM”...
  • Page 23 4. Place an empty sample pan on the sample pan holder and ensure it is laid flat. 5. Close the heater cover and tare by pressing the “TARE” button. 6. Open the heater cover and place the sample evenly on the sample pan.
  • Page 24 10. Open the heater cover and use the sample pan handle to remove the sample pan.

  • Page 25: Maintenance

    7. Maintenance • Turn off the power switch and remove power cord during maintenance. • Cool down all parts of the analyzer before maintenance. 7.1 Cleaning Make sure that no dust or liquid enters the moisture analyzer housing. Do not use any aggressive cleaning agents (solvents, abrasive cleaning agents, etc.) or organic solvents to clean the analyzer.

  • Page 26: Cleaning The Heating Unit

    7.1.2 Cleaning the heating unit Disconnect the power by unplugging power cord from the outlet. Carefully remove any residue from • the temperature sensor. Use a damp, lint-free cloth to clean • the tubular heating element. 7.1.3 Cleaning the display panel and keyboard Wipe the panel with a damp cloth.

  • Page 27: Troubleshooting

    8. Troubleshooting Problem: Display remains off after switching on. Possible causes: Power cord is not connected • Power line fuse blown • Power supply interrupted • Instrument faulty • Problem: Display does not change when loading samples. Possible causes: • The sample pan/pan holder is not installed correctly. Problem: Weight display is constantly changing or unstable.
  • Page 28 • Heating chamber open • Power cord is not connected • Power line fuse blown Problem：Measurement takes too long. Possible causes: • Incorrect ending mode selected Problem: Measurements are not repeatable. Possible causes: • The samples are not homogeneous. • Drying time is too short. •...

  • Page 29: Technical Data

    9. Technical Data Model USS-HMA01 Capacity 110g Readability 0.005g / 0.1% Heating Element Halogen lamp Temperature range 104℉- 390.2℉（40℃ - 199℃） Time setting range 1 - 99 min Drying mode Standard, Fast, Soft Ending mode Auto, Timing, Manual [%m] moisture content...
