Overview
ACUBRITE ™ 15-NAV

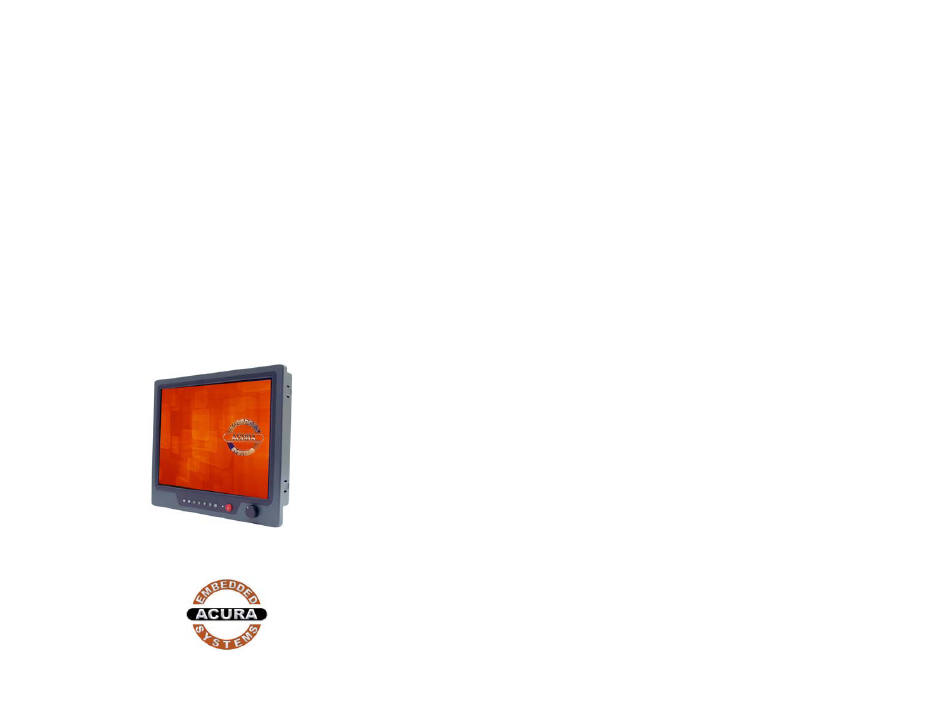

ACUBRITE ™ 15-NAV, the high-performance, rugged touch monitor, is specially
engineered to survive from the most demanding working environment. Housed in a
milled billet aluminum case, the slim-profile ACUBRITE ™ 15-NAV is light weight
Sunlight Readable
and watertight. The front-mounted sunlight readable touch screen makes the
Marine Certified Monitor
industrial rugged
monitor vividly and user-friendly. In addition, the high power
efficiency and low heat design guarantee the stability and longevity required for
mission critical deployment.
User's Guide
Main Features
Edition 1.0
- 1000 nits Sunlight Readable LCD
- Long Life, Low Power Consumption LED Backlight
- Wide Operating Temperature
- Picture In Picture Function
- Advanced Optical Bonding (AOT)
- High Shock & Vibration Resistance
- Resistive Touch Support
- IP65 Facial Waterproof
- 9-36V DC Input
Application:
- Marine
1

Advertisement

loading

Related Manuals for Acura Embedded Systems ACUBRITE 15-NAV

Summary of Contents for Acura Embedded Systems ACUBRITE 15-NAV

  • Page 1 AcuBrite 15-NAV User Guide AcuBrite 15-NAV User Guide Overview ACUBRITE ™ 15-NAV ACUBRITE ™ 15-NAV, the high-performance, rugged touch monitor, is specially engineered to survive from the most demanding working environment. Housed in a milled billet aluminum case, the slim-profile ACUBRITE ™ 15-NAV is light weight Sunlight Readable and watertight.

  • Page 2: Connections And Control Features

    AcuBrite 15-NAV User Guide AcuBrite 15-NAV User Guide Rear connections CONNECTIONS AND CONTROL FEATURES 1.Fuse 2. Power Input 3. DVI Input 4. VGA-Input 5. RS232 Input 6. CVBS-1,2,3 Input (Composite Video ) AV Input 7.USB for Touch control This monitor is designed to run on marine vehicle’s power systems, with 9~36V DC wide range power input.

  • Page 3: Control Panel

    AcuBrite 15-NAV User Guide AcuBrite 15-NAV User Guide Control panel AUTO KEY Automatically adjust monitor features / DOWN It works as menu item selection use, the “UP”KEY can be used as “RIGHT” KEY and the “DOWN” KEY can be used as “LEFT”KEY.
  • Page 4 AcuBrite 15-NAV User Guide AcuBrite 15-NAV User Guide DVI setting screen: RGB setting screen: DVI Setting Item Description: ――― Contrast adjustment ・ CONTRAST ――― Red Color level Adjustment ・ R_LEVEL RGB Setting Item Description: ――― Green Color level Adjustment ・ G_LEVEL ―――...
  • Page 5 AcuBrite 15-NAV User Guide AcuBrite 15-NAV User Guide NIGHT MODE KEY Customer When you press the “NIGHT MODE” KEY, the dimming will be down to under 0.5 nit directly. And if you press “BRIGHTNESS” KEY or “VR” knob at this moment, it will be no function until you press the “NIGHT MODE”...

  • Page 6: Technical Support

    User Guide AcuBrite 15-NAV User Guide With the unique set of products, Acura Embedded Systems remains committed to its goal of providing trouble-free and customer-friendly service. A special customer service unit has been set up specifically to cater to our esteemed customers' needs.
