Operation Manual for
Automatic Leveling Systems
with Touch Pad

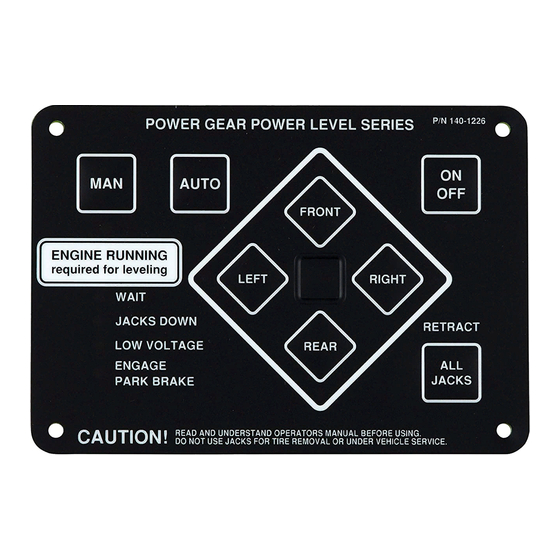

# 140-1226
and Control Box
# 140-1229
Before You Level Your Coach
1
2
1. Engine must be running, the park brake must be set, and the transmission in "park"
("neutral" for diesel coaches) for the jacks to operate.
3
2. Check leveling site to make sure obstructions have been cleared away for proper jack
operation.
3
4
!
CAUTION
5
• Keep people clear of coach prior to turning the leveling system on and while leveling system
8
is in use.
9
• Never expose hands or other parts of the body near hydraulic leaks. High-pressure oil leaks
may cut and penetrate the skin causing serious injury.
• If your coach is equipped with a slide out(s), always level your unit first, and then operate the
slide out room(s). When retracting the slide(s), always retract the room(s) first then retract the
leveling jacks. Following this procedure will produce the least amount of stress on your
chassis.
• Please read the owners manual from the manufacturer who built and designed your motor
home for further leveling and slide out room operating information and safety features.
!
WARNING
This is a leveling system only and is not intended to lift your coach's tire or tires completely off
the ground. Attempting to lift your coach completely off the ground (for example to use this
leveling system to change a tire) could cause damage to the system and serious injury to the
parties involved. If a tire should require changing please have the proper equipment and
contact a professional.
Do not use a high pressured wash/rinse system on any of the components associated with the
leveling system. This includes the pump, pump motor, wiring harness, control, and touchpad.
The use of a high pressure wash/rinse system will void the warranty.
Operation Manual
for Automatic
Leveling Systems
© 11/12 Power Gear
#82-L0379 Rev. 0E
Modified: 11/03/20
CCD-0004185
