Cafelat Robot User Manual page 5

Lever arms – These raise and lower the piston and are made from solid
stainless steel. They are designed to be loose and not stay in the upright
position.
Portafilter – this holds the filter basket in place and is locked into the main
body
Spouts – these attach to the portafilter is required
Basket – this holds the ground coffee and the hot water
Screen – this sits on top of the coffee grounds and slows down and
disperses the hot water across the coffee
Tamper – this tamps (compresses) the coffee down inside the basket

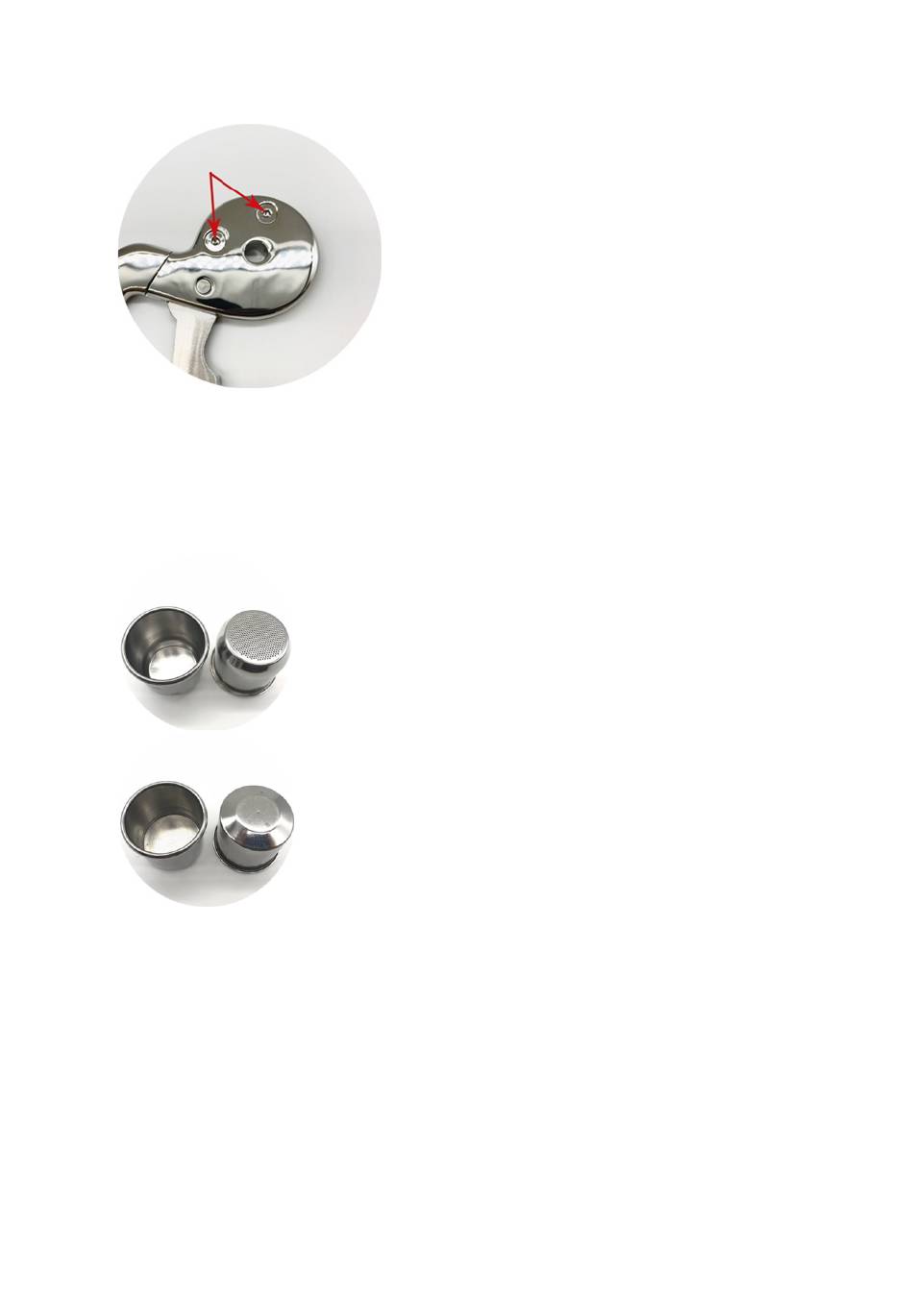

The lever arms and the connecting rods are
an assembled unit. Do not attempt to undo
the screws marked with the red arrows.
They have been thread locked into place –
any attempt to undo them and you will most
probably strip the Hex indent.
The Professional basket
The Pressurised basket
5
Robot User Manual 2.0 June 2020
