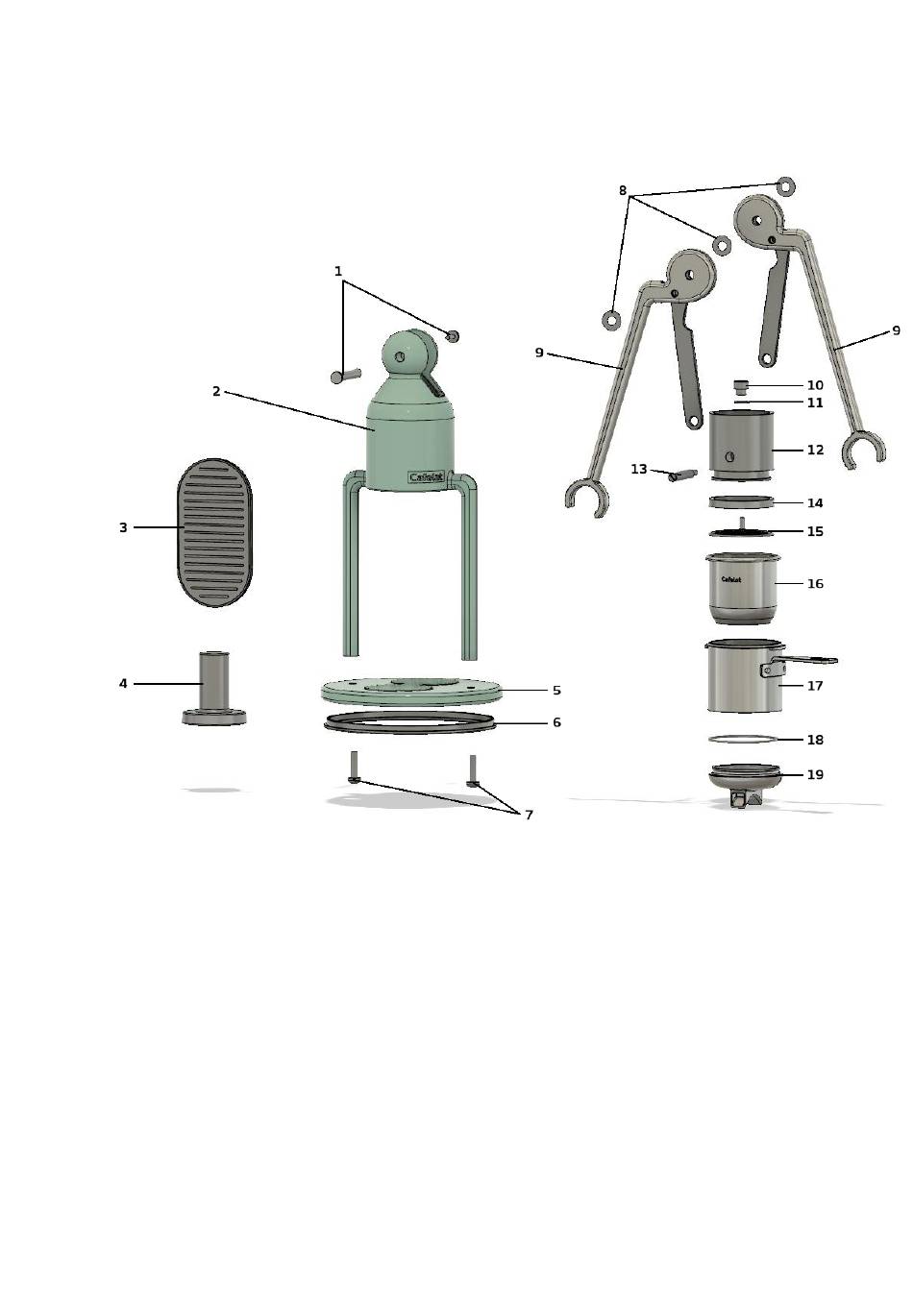

11. Parts nomenclature and materials
1. Top Pin
2. Main Body
3. Silicone Mat
4. Tamper
5. Base Plate
6. Base silicone ring
7. Socket Head Cap Screws SS
8. Teflon Wafers
9. Lever arm assemblies
SS = Stainless Steel Alu = Aluminium Si = Silicone PTFE = Teflon
Pressure gauge kit parts
SS
ALU
Si 12. Piston
SS
ALU
Si
PTFE
SS
24
10. Piston Plug
11.Teflon washer
SS
13. Piston Pin
14. Piston Seal
15. Screen
16. Filter Basket
17. Portafilter SS
18. Spouts o-ring
19. Spout
Robot User Manual 2.0 June 2020
SS
PTFE
SS
Si
SS
SS
Si
SS
