OWNER'S MANUAL, OPERATING INSTRUCTIONS MANUAL,
and REPLACEMENT PARTS MANUAL

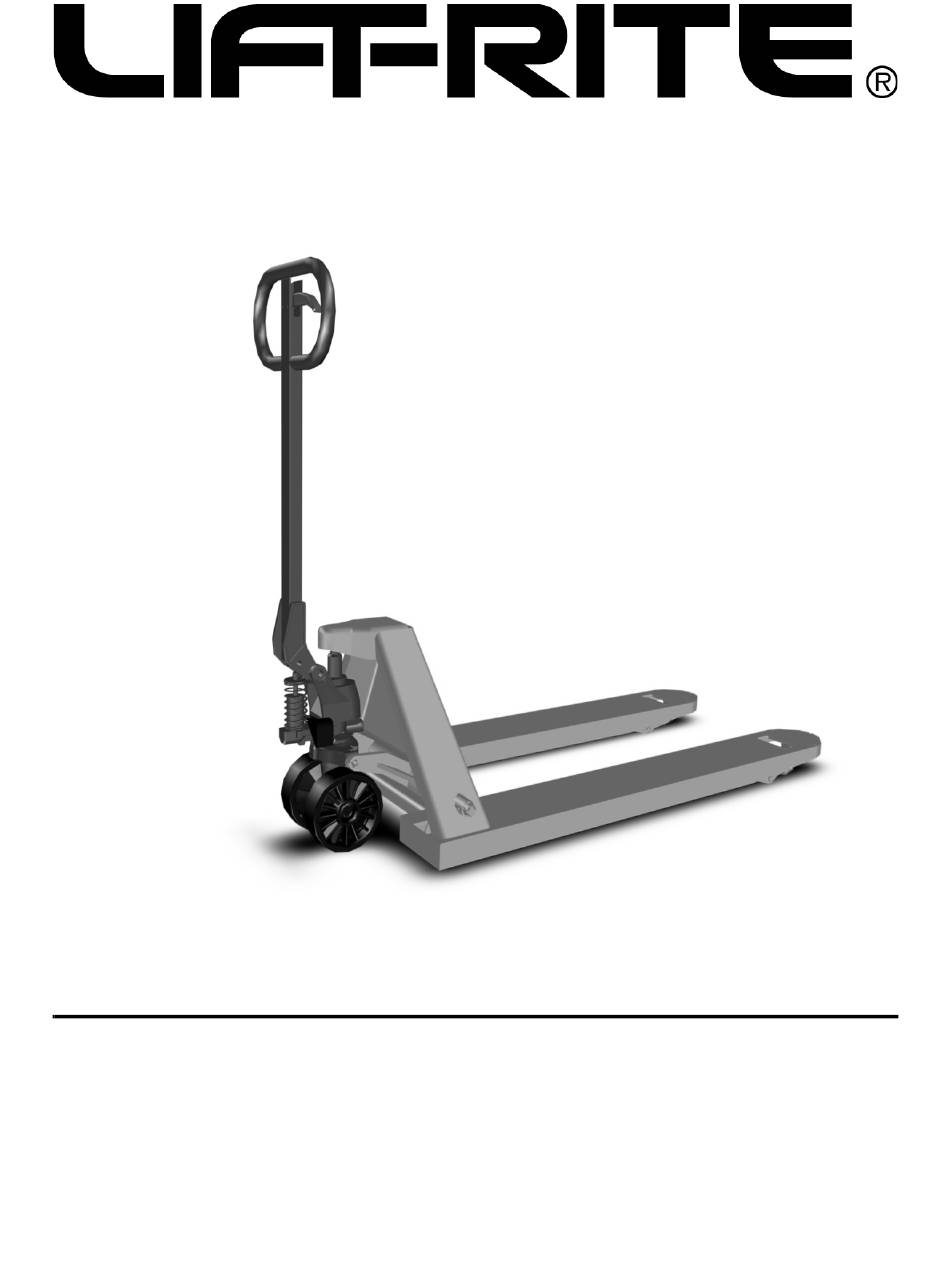

Altra Hand Pallet Truck
Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012
Publication Number 1314694/001B ©2020
Dated 31 Jan 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Altra and is the answer not in the manual?

Questions and answers

Related Manuals for Lift-Rite Altra

Summary of Contents for Lift-Rite Altra

  • Page 1 OWNER’S MANUAL, OPERATING INSTRUCTIONS MANUAL, and REPLACEMENT PARTS MANUAL Altra Hand Pallet Truck Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 2 This publication, 1314694/001B, applies to the Lift-Rite Hand Pallet Trucks, and to all subsequent releases of this product until otherwise indicated in new editions. Changes occur periodically to the information in this publication. To order additional copies of this manual, part number 1314694/001B, contact your local authorized Lift-Rite Sales and Service Center.

  • Page 3: Table Of Contents

    FORK FRAME ASSEMBLY PUMP UNIT ASSEMBLY FOOT BRAKE (OPTIONAL) RECYCLING YOUR OLD LIFT-RITE PARTS HAND PALLET TRUCK WARRANTY Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 4 Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 5: Delivery Inspection

    For free handle movement, place the fingertip control in the neutral position. Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 6: Safety Procedures

    ACTION on exterior damage, and damage and rotation function readability and check for remove debris remove debris function Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 7: To Attach Handle To Pump Unit

    (D133) counter-clockwise until the forks elevate while pumping in the RAISE position. Then check the LOWER and DRIVE position according to steps 1, 2, and 3. Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 8: Maintenance

    (D610A, D610B, or D610AS) up and down several times. Lubrication Use motor oil or grease to lubricate all movable parts. Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 9: Troubleshooting

    Adjusting the nut (D615) or the screw (D133). screw (D133) is not in the (See To Adjust Release Device). correct position. Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 10: List Of Assemblies

    D142, D143, D144, D145, D146, D147, D148, D149, D150, D151, D152, D153, D154, D155, D156, D157, D158, D159B, D160B Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 11: Handle Assembly, Type A And Type B

    HANDLE ASSEMBLY, TYPE A AND TYPE B Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 12 Bolt, Adjusting *D615 Nut, Adjusting D616 Washer, Elastic *Asterisk = Available in Kit (See List of Assemblies Parts List) Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 13: Handle Assembly, Type D

    HANDLE ASSEMBLY, TYPE D Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 14 Handle D610AS Bar, Draw D611 Screw D612 Chain D613 D614 Bolt, Adjusting D615 Nut, Adjusting D616 Washer, Elastic Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 15: Fork Frame Assembly

    FORK FRAME ASSEMBLY Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 16 Single Wheel D231 Washer D232 Washer *Asterisk = Part of Assembly DF20-04 (See List of Assemblies Parts List) Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 17: Pump Unit Assembly

    PUMP UNIT ASSEMBLY Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 18 C and D *D127 Bearing *D129 Spring *D130 Pin, Strike *D131 O-Ring *D132 Plate, Lever *D133 Screw, Adjusting Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 19 Washer, Seal *D158 Bushing *D159B Sleeve *D160B Screw *Asterisk = Available in Kit (See List of Assemblies Parts List) Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 20: Foot Brake (Optional)

    Wheel, Steering Shaft D160 D161 Sleeve, Holding D162 Spring D163 Holder, Oil D164 Plate, Brake D165 Pedal D166 Washer D167 Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 21: Recycling Your Old Lift-Rite Parts

    Steel Wheel Steel Bushings Brass Hydraulic oil Disposal in accordance with local regulations Assembly parts Steel, brass, nylon Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 22 Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...

  • Page 23: Hand Pallet Truck Warranty

    HAND PALLET TRUCK WARRANTY The Altra Hand Pallet Truck, is warranted against defects in materials and workmanship for a period of twelve (12) months for hydraulics and chassis, and three (3) months for wearables from date of installation. Components found to be defective by an authorized Lift-Rite Sales and Service Center during the warranty period will be replaced or repaired as indicated above.
  • Page 24 Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
  • Page 26 Part Kit Number 1314823/001 Lift-Rite, 22 South Canal Street, Greene, NY 13778, Tel: Toll Free from USA: 1-800-558-6012 Publication Number 1314694/001B ©2020 Dated 31 Jan 2020...
