Summary of Contents for TOPP V1

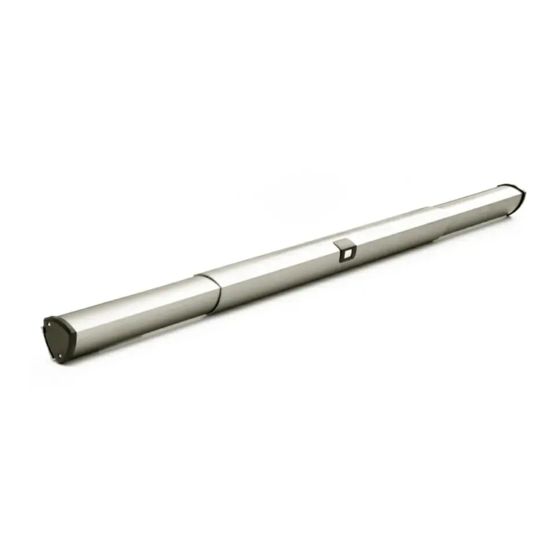

- Page 1 Automation interior sliding doors...
-
Page 2: Technical Characteristics
Max capacity 50Kg. The V1 main features are: Easy installation. The V1 automation system for interior sliding doors, with minimal Simple adaptability to dimensions and appealing design, has been designed to be easily existing sliding doors. installed also on existing doors. -
Page 3: Installation Steps
Installation steps Installation The V1 automation system Verify that minimum distance Cut the seal brush at 60 mm from the top has been designed to be between the door wing and the frame is of the door in order to allow the rail easily installed also on installation. - Page 4 Loosen the screws for the telescopic Mount the side bracket on the door Install the rail on the door panel. adjustment of the automation. frame. Adjust the automation length in order to Center the automation and secure the Connect the IR sensor. have it parallel to the door and secure screws on the back of the mechanism.
- Page 5 A p p l i c a t i o n The V1 automation can be useful where it is not possible or convenient to use your hands to open the door... To go to the office carrying documents... To go to the kitchen with your shopping bags...
- Page 6 Accessories Microwave sensor 8 functions radio remote selector with magnetic wall-mounting stand External microwave activation sensor 1. Opening 5. Entrance only mode 2. Closing 6. Exit only mode 3. Door lock 7. Reset 4. Slow speed mode 8. Automatic mode Gesture activation key Gesture activation key External gesture activation key...
