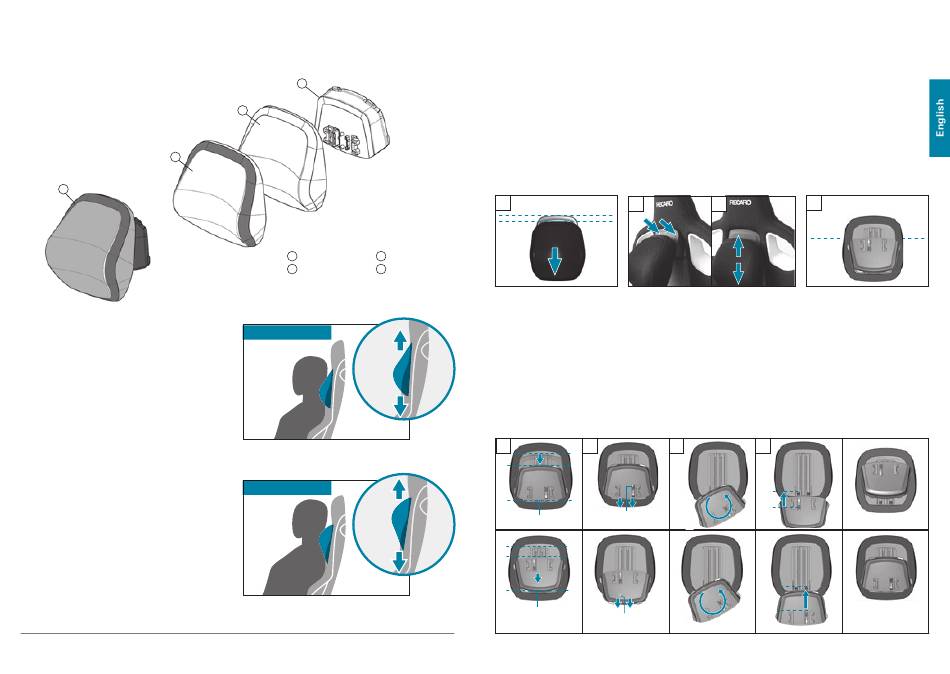

1. SCOPE OF DELIVERY
The neck rest is delivered com-
pletely assembled. The following
illustration shows its components
in addition to the assembled
headrest.
2
1
2. INSTALLING OPTIONS
The contour of the neck rest is designed
ergonomically. It can be attached to all
seats from the RECARO Exo portfolio,
across all models.
There are two installing options, depend-
ing on different body sizes: Both provide
optimum support in the neck area and help
to relieve the neck muscles
1. Standard position: foam part in
delivery positionl
2. Turned position: foam part turned
by 180°, optimal for use from a height
of 1.85 m. For details on turning the
foam part: see chapter 3.
8
4
3
1 Neck rest 3 Foam part
Cover
2 4 Holding plate
Standard position
Turned position
3. INSTALLING AND REMOVING
3.1 P ush the neck rest to the lowest position.
3.2 P lace the holding plate on the arched gap in the backrest of your RECARO Exo and
push the holding plate in. Then press the neck rest firmly into the backrest to comple-
te full contact between neck rest and backrest.
3.3 S elect the ideal support zone for you by moving the neck rest up or down.
3.4 For disassembly, push the neck rest to the highest position. To remove the neck rest
from the backrest, grasp it with both hands and pull it slowly upwards and out.
3.1 Installing position 3.2
4. CHANGE STANDARD/TURNED POSITION
4.1 Push the holding plate on the back of the neck rest to the lowest position.
4.2 Push the upper operating button inwards and move the holding plate down at the
same time. The holding plate is now released from the neck support.
4.3 Turn the holding plate by 180°.
4.4 Insert the holding plate into the guide rail of the foam plate again.
4.5 To change from the turned position to the standard position repeat steps 4.1 to 4.5
4.1 4.2 4.3
Upper
Lowest position
operating button
Lowest position
Upper
operating button
3.3 3.4
Highest position
4.4
180°
180°
