RECARO LIFESTYLE CHAIRS Assembly Instructions

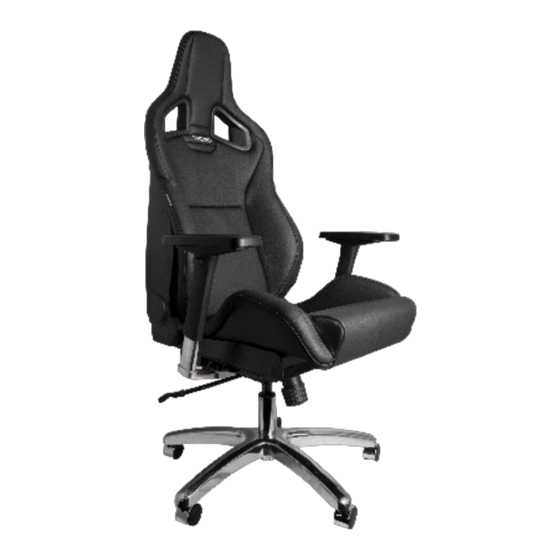

LIFESTYLE CHAIRS
Assembly Instructions
PARTS LIST
1x Official RECARO Automotive Seat
1x 7289A16 – Allen Wrench - 5 mm (included tool)
1x 20046174 – Star Base – 27.5" Aluminum
5x 20046175-AA – Chrome Wheel Casters
1x 20046176 – Tilt Control Mechanism
1x 20046177-AA – Chrome Gas Cylinder
1x 20046178.1 – Left Hand Adjustable Armrest
1x 20046178.2 – Right Hand Adjustable Armrest
6x 3052507 – Washer 0.25 ID X 0.562 OD
6x 095.00.007.00 – SHCHS M6X20 W/Patch
4x 30823207 – Bolt M8 X 25 Low Head W/Patch
4x 30870407 – Washer 5/16 SAE High Strength
INSTRUCTIONS

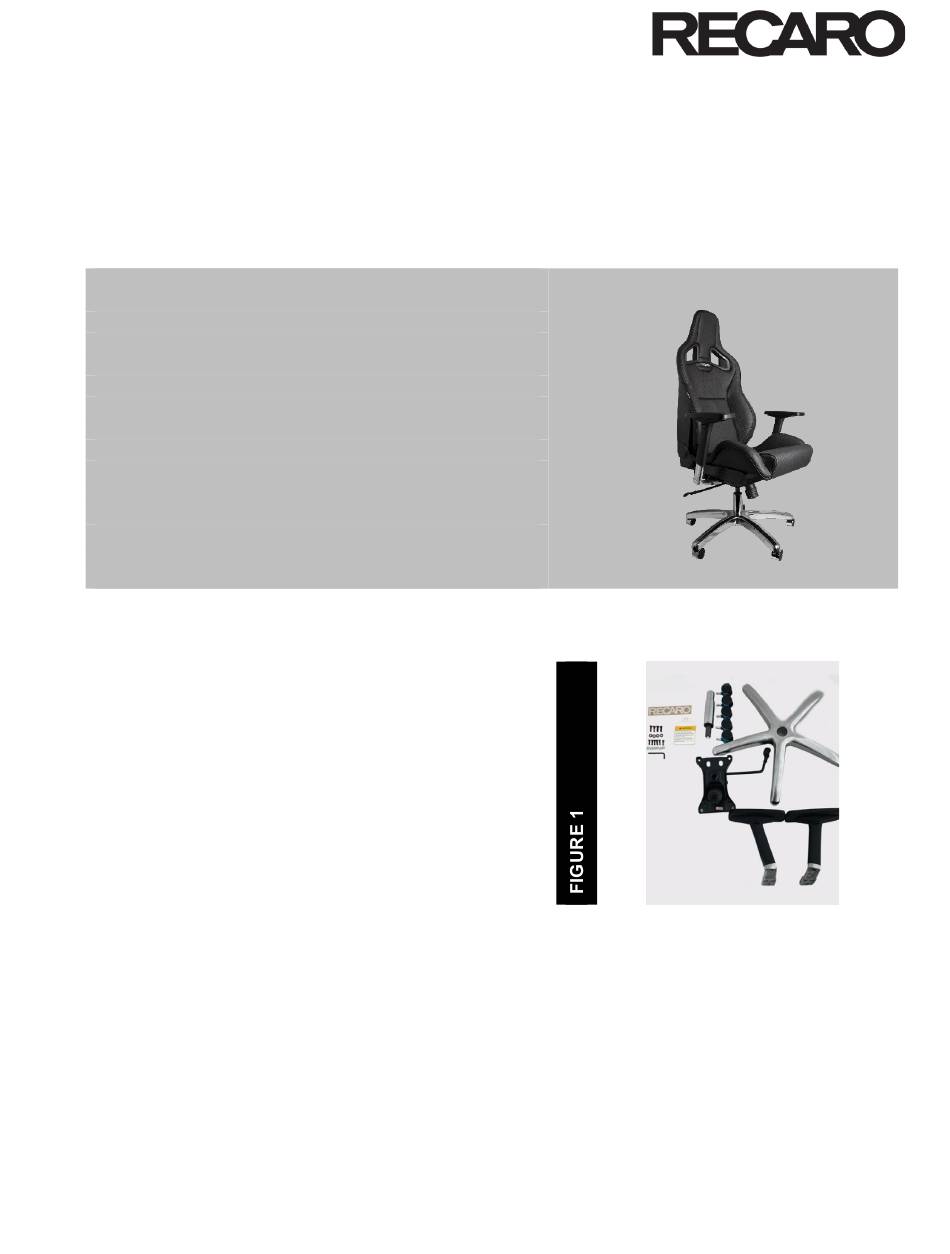

STEP 1: Unpack all the components of the box and
inspect to make sure you have all items before starting
assembly (figure 1).
STEP 2: Place a protective barrier on your work surface to avoid scratching/soiling the seat.
Then turn the seat on its back so you can see the bottom of the seat.
STEP 3: Take the Tilt Control Mechanism and align the holes on the bottom of the seat bracket,
making sure the control handles are to the right of the seat when in use and front sticker is
facing forward (figure 2). If positioned correctly, the spring tension adjustment knob is facing the
front of the seat (figure 3). Hand tighten four (4) M8 bolts with four (4) 5/16 washers, ensure
bolts are not cross threaded, and then tighten all four (4) bolts with 5mm Allen Wrench included
(figure 4).
M1004507 - REV 2 (04/17/2024)
Page 1 of 5
