THEORY OF OPERATION
+
PS1
8V to 38V Supply
–
1A
+
PS2
5V Supply
–
1A
+
–
AM1
+
VM1
–

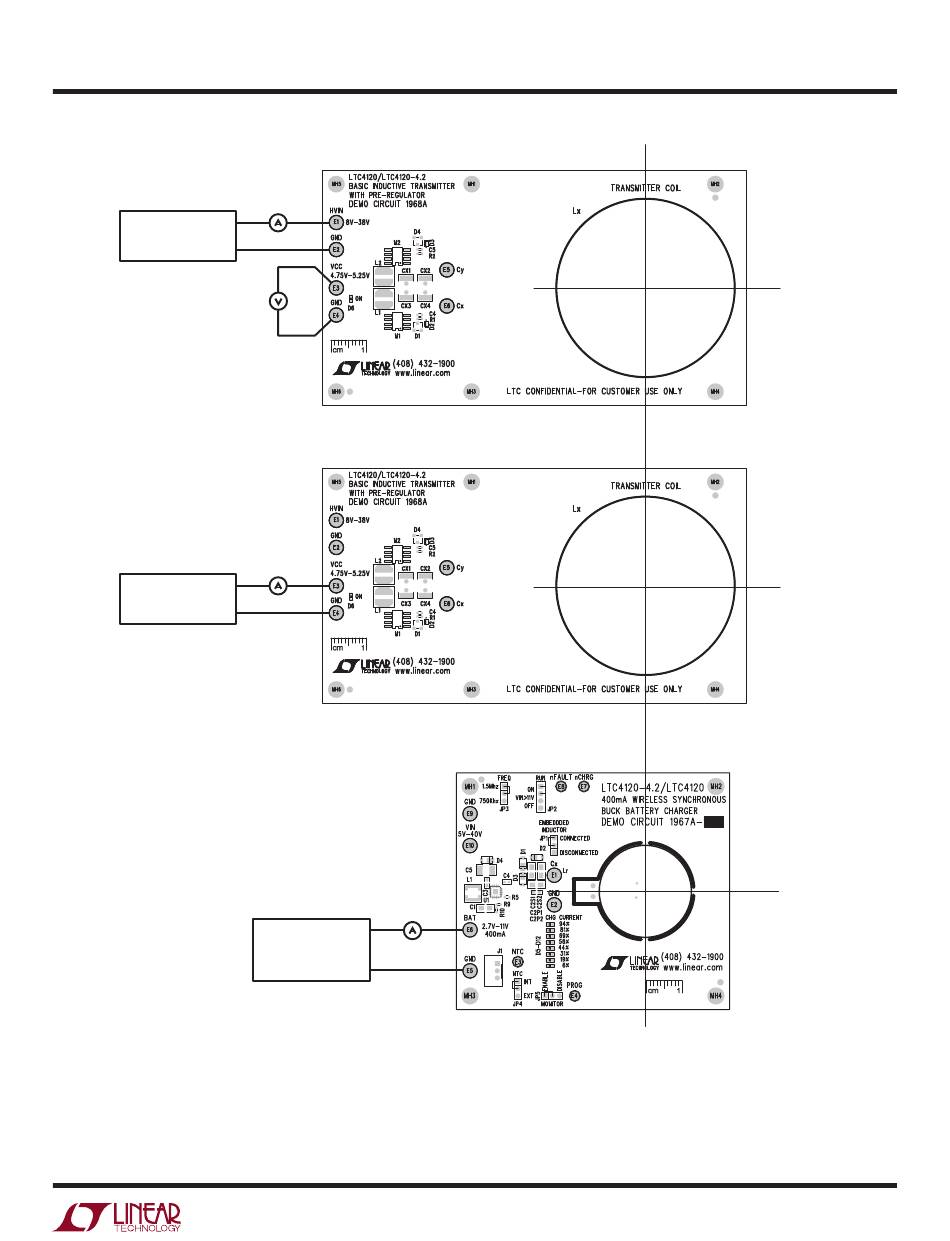

Figure 7a. Using High Voltage Input
+
–
AM2
Figure 7b. Using the V
+
–
+
PS3
AM3
3.7V Bipolar Supply
–
1A
Figure 7c. Receive Board with Battery Emulator
Note: All connections from equipment should be Kelvin connected directly
to the board pins which they are connected on this diagram and any input or
output leads should be twisted pair.
DC1969A-A/DC1969A-B
Input
CC
Figure 7
