INSTALLATION INSTRUCTIONS

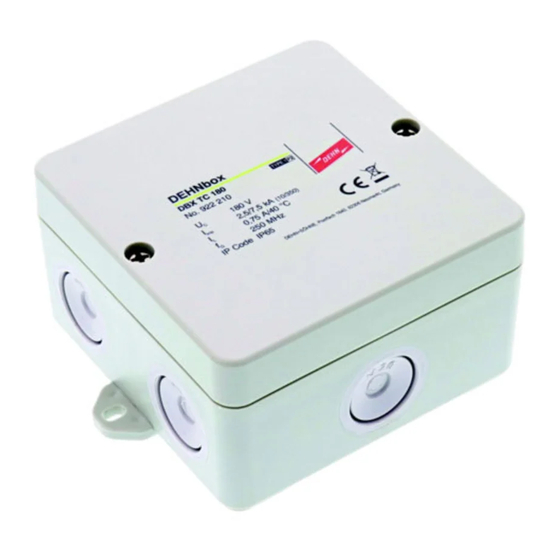

DEHNbox DBX TC 180
1
1
2
0,5 Nm
1
terminal block / Klemmleiste
0,2 mm² -1,5 mm²
8,5 - 9,5 mm / 0,32 - 0,36 in
earthing terminal / Erdungsklemme
0,25 mm² -2,5 mm²
10 -11 mm / 0,39 - 0,43 in

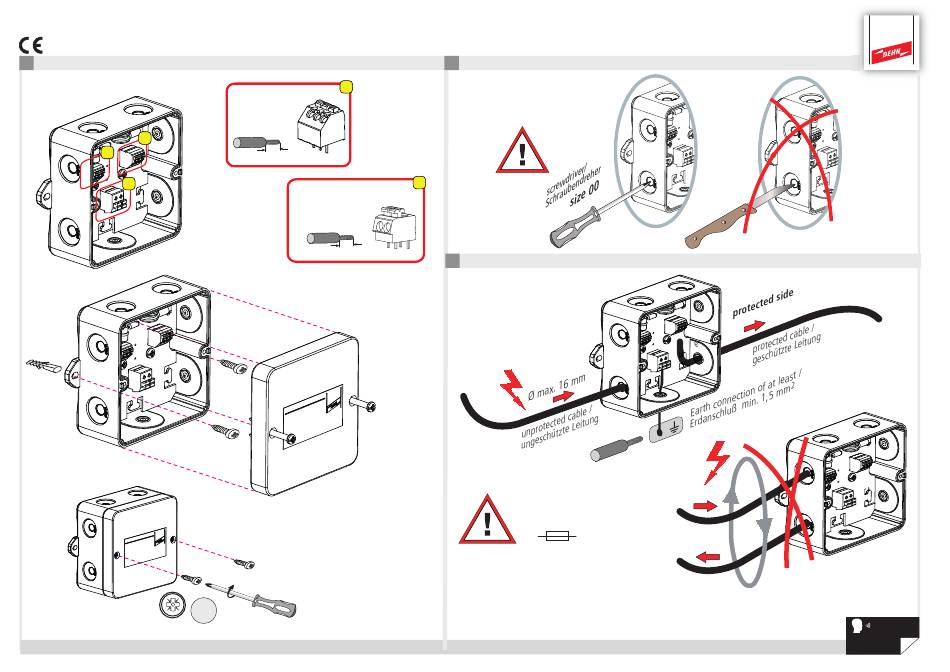

Breaking through the membrane entries / Durchstoßen der Membraneinführungen
ok
2
Cable routing / Kabelführung
ok
I
L
Pre-fuse the signal circuit, if required!
The rated current is equal to the
nominal current in the signal circuit,
max. I
tripping characteristic: medium time lag (M)
L
ggf, Signalkreis vorsichern!
Bemessungsstrom entspricht Nennstrom im Signalkreis,
max. I
Auslösecharakteristik: Mittelträge (M)
L
Publication No.1868/ UPDATE 03.14 Id No.069281
unprotected cable /
ungeschützte Leitung
protected cable /
geschützte Leitung
© COPYRIGHT 2014 DEHN + SÖHNE / protected by ISO 16016
p.t.o.
