- Page 1 INSTRUCTION MANUAL Electric Pole Saw Model # PS6108 Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 Mon-Fri 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
Knowing your pole saw……..………………………………………… Assembly and adjustments……………………………………………… Operation………………………………………………………………... Maintenance……………………………………………………………... Exploded view & parts list……………………………………………… Warranty………………………………………………………………… TECHNICAL DATA Electric Pole Saw Model # PS6108 Motor: 120V, 60 Hz, 6A Motor speed: 4500 RPM Oregon 91PJ033X, 3/8” Pitch Saw chain: 0.050” Chain gauge:... -
Page 4: General Safety Rules
GENERAL SAFETY RULES Warning – When using an electric pole saw, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: READ ALL INSTRUCTIONS Make sure you read and understand all instructions. Improper use of this pole saw can cause severe injury or death from fire, electrical shock, and body contact with moving chain, on falling wood. -
Page 5: Specific Safety Rules For Pole Saw
Stay alert. Use common sense while operating pole saw. Keep work area clean. Cluttered areas invite injuries. Be aware of extension cord while operating pole saw. Be careful not to trip over cord. Keep cord away from chain and operator at all times. ... -
Page 6: Electrical Information
Never bring the nose of the guide bar in contact with any object. Never cut limbs with the nose of the guide bar. Be especially careful when cutting saplings, brush and small hard limbs that may easily pinch the cutting chain. ... - Page 7 Minimum Gauge for Extension Cords (AWG) (When using 120 V only) Ampere Rating Total Length of Cord in feet More Than Not More Than Not Recommended Make sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it.
-
Page 8: Knowing Your Pole Saw

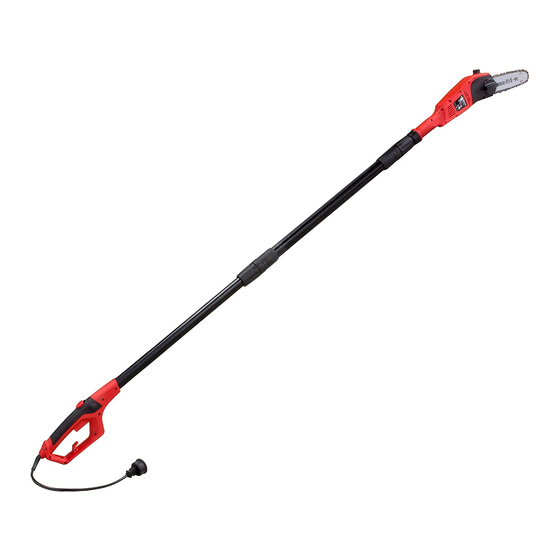

KNOWING YOUR POLE SAW Saw chain Oregon guide bar Sprocket locking knob Lubrication oil tank cap Inner tube Adjusting knob Outer tube Adjusting knob Inner tube Trigger switch lock-out Trigger switch Handle Power cord... -
Page 9: Assembly And Adjustments
ASSEMBLY AND ADJUSTMENTS Unpacking Unpack the Pole Saw and all its parts, and compare against the list below. Do not discard the carton or any packaging until the Pole Saw is completely assembled. Pole saw Saw chain (assembled) Guide bar (assembled) Scabbard Wrench Owner’s manual... -
Page 10: Operation
WARNING - Never use waste or reclaimed oil. This results in damage to the oil pump, saw chain and guide bar. Filling oil tank 1. Set chain saw on any suitable surface with Oil Tank Cap facing upward. 2. Clean area around the Oil Tank Cap with cloth and unscrew the cap by turning it counter clockwise. 3. -
Page 11: Maintenance
MAINTENANCE Change saw chain 1. Remove the screw and turn Sprocket Locking Knob counterclockwise to remove the guide bar cover. Screw Guide Bar Cover Sprocket Locking Knob 2. Move the chain tensioning pin fully back towards the sprocket using the chain tension screw. (See direction arrow) 3. - Page 12 Caution: Proper saw chain tension is extremely important. If saw chain is too tight, the guide bar and saw chain will be quickly damaged. If the saw chain is too loose, it may get out of the guide bar groove and cause an injury.
- Page 13 Maintenance chart Before After Weekly Monthly Work work faulty damaged required Complete Visual inspection Machine Clean Switch Check operation Oil tank Clean Chain Check lubrication Saw chain Inspect and check the sharpness Check chain tension Sharpen Guide bar Check (wear, damage) Clean and turn over Deburr Replace...
-
Page 14: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST Item Stock # Description Item Stock # Description PS6108-101 Sprocket locking knob PS6108-130 Worm shaft PS6108-102 Screw ST4.2x14 PS6108-131 Bearing 606 PS6108-103 Guide bar cover PS6108-132 O-ring PS6108-104 Gasket PS6108-133 Pipe connector PS6108-105 Seal PS6108-134... - Page 15 Item Stock # Description Item Stock # Description PS6108-201 Screw ST4.2x14 PS6108-216 Screw M4x5 PS6108-202 Right handle PS6108-217 Ring PS6108-203 Handle grip PS6108-218 Tube connector PS6108-204 Cable holder PS6108-219 Spring pin PS6108-205 Cable sleeve PS6108-220 Stop bracket PS6108-206 Power cord...
-
Page 16: Warranty
TWO (2) YEARS LIMITED WARRANTY ® PowerSmart is committed to building tools that are dependable for years. Our warranties are consistent with our commitment and dedication to quality. TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE.
