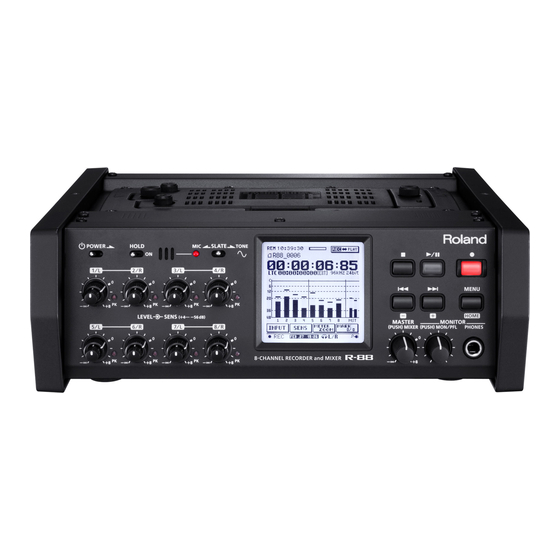

R-88 MIDI Implementation
Model: R-88
Date: May. 31, 2013
Version: 1.10
1. Data Reception
■ ■ Channel Voice Messages
●Note Off
■
Status 2nd byte
9nH kkH
n = MIDI channel number:
kk = note number:
When a note-off is received, the result will be the same as when a finger is released
from a switch or button.
●Note On
■
Status 2nd byte
9nH kkH
n = MIDI channel number:
kk = note number:
vv = note on velocity:
When a note-on (vv=7FH) is received, the result will be the same as when a switch or
button is held down.
The mute switches and transport buttons of the R-88 can be controlled by sending a
note-on (vv=7FH) or note-off from an external MIDI controller.
n kk Explanation
0H 10H CH 1 MUTE
0H 11H CH 2 MUTE
0H 12H CH 3 MUTE
0H 13H CH 4 MUTE
0H 14H CH 5 MUTE
0H 15H CH 6 MUTE
0H 16H CH 7 MUTE
0H 17H CH 8 MUTE
●Pitch Bend Change
■
Status 2nd byte
EnH llH
n = MIDI channel number:
mm, ll = Pitch Bend value:
The parameters that are controlled will depend on the R-88's UM-ONE CONTROL
setting.
INPUT: Input levels and master volume
MIXER: Mixer channel faders and master volume
n INPUT MIXER
0H INPUT 1 LEVEL CH 1 FADER
1H INPUT 2 LEVEL CH 2 FADER
2H INPUT 3 LEVEL CH 3 FADER
3H INPUT 4 LEVEL CH 4 FADER
Copyright © 2013 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
1PS
3rd byte
00H
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
7FH (127)
n kk Explanation
0H 5BH REWIND
0H 5CH FAST FORWARD
0H 5DH STOP
0H 5EH PLAY
0H 5FH RECORD
3rd byte
mmH
0H - FH (ch.1 - 16)
00 00H - 40 00H - 7F 7FH
(-8192 - 0 - +8191)
n INPUT MIXER
4H INPUT 5 LEVEL CH 5 FADER
5H INPUT 6 LEVEL CH 6 FADER
6H INPUT 7 LEVEL CH 7 FADER
7H INPUT 8 LEVEL CH 8 FADER
8H MASTER
How pitch bend values are related to fader values (levels)
mm ll Level mm
(MSB) (LSB) (dB) (MSB)
0H 0H -INF 2BH
1H 0H -66.0 2CH
2H 0H -65.0 2DH
3H 0H -64.0 2EH
4H 0H -63.0 2FH
5H 0H -62.0 30H
6H 0H -61.0 31H
7H 0H -60.0 32H
8H 0H -59.0 33H
9H 0H -58.0 34H
0AH 0H -57.0 35H
0BH 0H -56.0 36H
0CH 0H -55.0 37H
0DH 0H -54.0 38H
0EH 0H -53.0 39H
0FH 0H -52.0 3AH
10H 0H -51.0 3BH
11H 0H -50.0 3CH
12H 0H -49.0 3DH
13H 0H -48.0 3EH
14H 0H -47.0 3FH
15H 0H -46.0 40H
16H 0H -45.0 41H
17H 0H -44.0 42H
18H 0H -43.0 43H
19H 0H -42.0 44H
1AH 0H -41.0 45H
1BH 0H -40.0 46H
1CH 0H -39.0 47H
1DH 0H -38.0 48H
1EH 0H -37.0 49H
1FH 0H -36.0 4AH
20H 0H -35.0 4BH
21H 0H -34.0 4CH
22H 0H -33.0 4DH
23H 0H -32.0 4EH
24H 0H -31.0 4FH
25H 0H -30.0 50H
26H 0H -29.5 51H
27H 0H -29.0 52H
28H 0H -28.5 53H
29H 0H -28.0 54H
2AH 0H -27.5 55H
ll Level mm ll
(LSB) (dB) (MSB) (LSB)
0H -27.0 56H 0H
0H -26.5 57H 0H
0H -26.0 58H 0H
0H -25.5 59H 0H
0H -25.0 5AH 0H
0H -24.5 5BH 0H
0H -24.0 5CH 0H
0H -23.5 5DH 0H
0H -23.0 5EH 0H
0H -22.5 5FH 0H
0H -22.0 60H 0H
0H -21.5 61H 0H
0H -21.0 62H 0H
0H -20.5 63H 0H
0H -20.0 64H 0H
0H -19.5 65H 0H
0H -19.0 66H 0H
0H -18.5 67H 0H
0H -18.0 68H 0H
0H -17.5 69H 0H
0H -17.0 6AH 0H
0H -16.5 6BH 0H
0H -16.0 6CH 0H
0H -15.5 6DH 0H
0H -15.0 6EH 0H
0H -14.5 6FH 0H
0H -14.0 70H 0H
0H -13.5 71H 0H
0H -13.0 72H 0H
0H -12.5 73H 0H
0H -12.0 74H 0H
0H -11.5 75H 0H
0H -11.0 76H 0H
0H -10.5 77H 0H
0H -10.0 78H 0H
0H -9.5 79H 0H
0H -9.0 7AH 0H
0H -8.5 7BH 0H
0H -8.0 7CH 0H
0H -7.5 7DH 0H
0H -7.0 7EH 0H
0H -6.5 7FH 0H
0H -6.0
Level
(dB)
-5.5
-5.0
-4.5
-4.0
-3.5
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0.0
0.5
1.0
1.0
1.5
1.5
2.0
2.0
2.5
2.5
3.0
3.0
3.5
3.5
4.0
4.0
4.5
4.5
5.0
5.0
5.5
5.5
6.0
6.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
