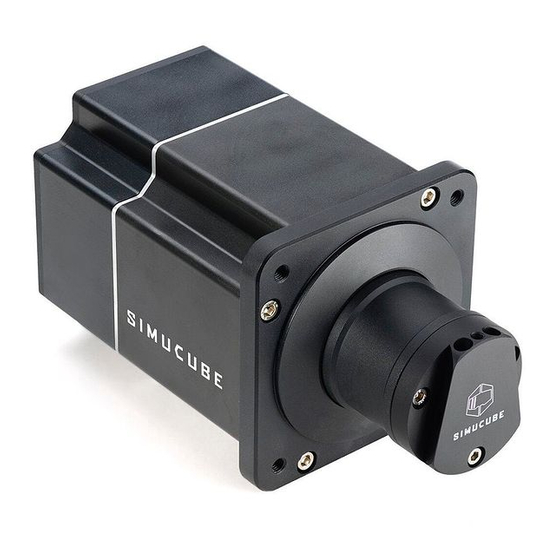

Summary of Contents for Granite Devices Simucube 2 Accessory port
Page 1
Simucube 2 Accessory Port Application Guide Version 1.0 November 1st, 2019...
Page 2
Accessory Port Application Guide Changelog Version Date Changes 2019/11/01 Initial release...
Page 3
Warnings and Guidelines for Safe Operation • The Simucube Accessory port is a female D15 connector on the back of the device. • The signal levels are from 0 to 5 Volts. • Do not connect any unknown devices to this connector. •...
D15 Connector Pinout Figure 1 Accessory port connector pinout. Pin numbering follows the connector as seen on the back plate of the device. Function Notes and suggested usage Reserved for future use Leave unconnected Reserved for future use Leave unconnected Reserved for future use Leave unconnected Digital input...
Page 5
Example Analog Input Wiring Figure 2 Example analog input wiring with potentiometer Example Button Input Wiring Figure 3 Example button input wiring for e.g. shifter use...
Page 6
Configuring Analog Inputs in True Drive Software Analog inputs can be configure in the Analog Inputs configuration window (Figure 4). Figure 4 Configure Analog inputs button location...
Page 7
Figure 5 Analog input settings The pedal set developer will supply a configuration file that can be imported to the settings with the Import from ini file button. The analog inputs can also be configured manually via the dialog (Figure 3). Input select: Select the input pin from D15 connector here.
