Content Important information iv Typographical conventions iv Important note iv Keypads and readers 1 The LCD display 3 The LEDs 3 Armed display 5 User identification 6 User groups 6 Using a PIN and/or a badge 6 Duress 8 Door access 9 Set and unset the system 10 When to set 10 When to part set 10...
Page 4
Accessing menu 23 Zone options 24 Inhibiting / uninhibiting zones 25 Shunting zones 26 Cameras 27 Isolating / deisolating 29 Log 30 Panel status 31 PIN 32 SMS and voice reporting 33 Users 34 User data lock 34 User settings 35 Service 40 Calendar 45 Viewing calendar 45...
Page 5
Programming records 66 User record 67 User group record 69 Condition filters 70 Schedule 72 Exceptions 73 SMS commands 74 Appendix A. SMS control 76 SMS control requirements 76 Command syntax 76 User authentication 76 SMS command list 77 Glossary 83 Index 87 User menu map 90 Advisor Advanced Manager Manual...
Important information This manual explains how to use the Advisor Advanced system if you are responsible for managing the system. There is also a shorter user guide available that explains everyday usage. To use this documentation effectively, you should have a basic knowledge of alarm systems. Read these instructions and all ancillary documentation entirely before operating this product.
Page 7

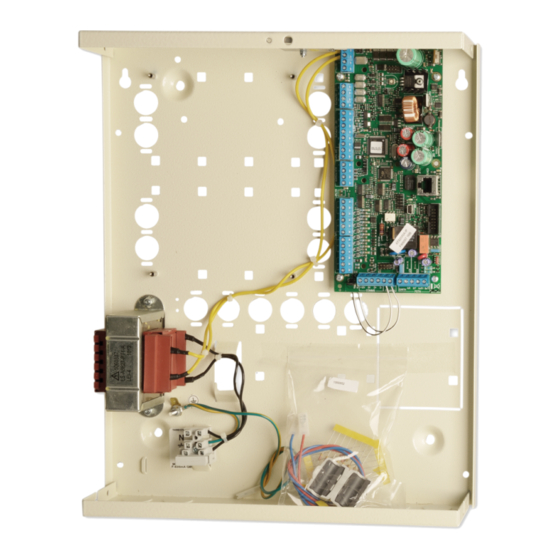

Model Enclosure Dimensions (mm) Weight (kg) ATS1500A-IP-MM Metal MM, 315 x 388 x 85 ATS1500A-SM Metal SM, 250 x 250 x 86 ATS1500A-IP-SM Metal SM, 250 x 250 x 86 ATS1500A-LP Plastic LP, 257 x 400 x 112 ATS1500A-IP-LP Plastic LP, 257 x 400 x 112 ATS3500A-MM Metal...
Page 10
/ Down (15) Scroll down in the menus Change value Backspace (16) Alphanumeric keys Keys 1 to 9, alphanumerical data (17) Menu, * Request entry to the menus (18) Enter, # Complete the step Enter the selected menu entry (19) Key 0 Toggle selection...
Blue LED Access granted Red LED On: area set Flashing: general alert (EN 50131) Dual LED Green on: AC mains supply on Green flashing: AC mains supply off, or unlocked while unset Red on: all areas set Red flashing: unlocked while set Yellow LED On: All zones are in normal state Flashing: general alert (EN 50131)
Page 12
• Blinking: An alarm has occurred in the area while the area was unset (LED flashes slow), or an alarm has occurred in the area while the area was set (LED flashes fast). Programmable LEDs The programmable LEDs 1 and 2 can be configured in two ways: ...
• Battery fail: When the auxiliary battery power is found to be low. • Trouble: When there is a trouble in the system (keypad fail, low battery, etc). General alert indicator (EN 50131) To comply with the EN 50131, this indicator is enabled if the system is unset and the armed display is active.
User identification All users of the Advisor Advanced system need a PIN and/or a card that is set up in a user account. A PIN is unique code and has between 4 and 10 digits. It is a combination of numbers between 0 and 9. PINs and/or card details are part of the setup of a user account.
Page 15
Users can only access the menu options enabled for the user groups assigned to the user account. When they try to access an option that they are not authorised to access, they get the message: ERROR Access denied See also: “Users” on page 34. Advisor Advanced Manager Manual...
Duress The duress function activates a silent signal to alert security personnel. If you are asked, under threat, to breach your system security (for example, forced to unset the system), this function lets you do so while at the same time activating the system duress facility.
Door access If programmed, it is possible to get access through a particular door using the keypad or the reader assigned to the door. Provide an allowed key sequence indicated in “Common key sequences” on page 63. Advisor Advanced Manager Manual...
Set and unset the system When to set The security system should be set if you are the last person to leave the premises (or your area), for example at the end of the day. When set, any security device detecting intruders activates an alarm. When to part set In case you are still on the premises (or in your area) it is possible to perform a part set of it.
The time limit when unset Once the system is set, you have to unset the area within a pre-set time (“entry time”) as otherwise you will set off the alarm. The manager of the system needs to inform everyone about this time limit. You will normally hear a beeper during the time allowed to unset.
Page 20
All the active zones are listed: 1 Zone active Zone 1 Setting the areas is now disallowed. If the indicated zones have to stay open (for example, you need to leave a window open), the problem may be resolved using one of the following methods: •...
All the inhibited zones and faults are listed: Inhibited Zone 1 Battery fault Inhibited • Press Enter to confirm the warning. After this the setting procedure continues. — or — • Cancel the setting using the Clear button. After you have determined which zones are active, check these and resolve the problem (for example, close the door).
Part set areas via LCD keypad To part set areas via LCD keypad: 1. Provide an allowed key sequence indicated in “Common key sequences” on page 63. 2. If prompted, choose the appropriate part set. 3. If prompted, choose areas. See “Areas displayed during set and unset” on page 16 for more information.
Set areas via keypad without LCD To set areas via keypad without LCD: 1. Provide an allowed key sequence indicated in “Common key sequences” on page 63. If the operation is not possible, the keypad beeps seven times. See “When you cannot set or unset”...
• 15 min, 30 min, 1 h, 2 h, 3 h, 4 h: Set an appropriate time period to delay the autoset. Areas displayed during set and unset If your system has not been programmed to display the areas assigned to your PIN on the LCD, those areas are automatically set/unset (provided all zones were normal).
Page 25
Selecting areas in the list • To select or deselect an area, enter the area number. Note that you can only select areas that are currently shown on the display. • To continue with selected, or with all areas if none selected, press Enter, or Right, or 0.
What to do when there is an alarm When there is an alarm, the LED of the area in alarm and the alarm LED flashes on the keypad. If the armed display is active, the LEDs start flashing when a user code has been entered.
Viewing an alarm After disarm, all the alarms are listed on the screen. Alarm Pending >0< Zone 1 Pending >0< The first screen shows the type of the alarm. The second shows the source of the alarm. The second line shows if there are more alarms for this source. Resetting an alarm To switch off sirens or bells, you must unset the appropriate area.
Problems that can occur There is a faulty zone A faulty zone continues to cause an alarm until it is isolated from the system (see “Isolating / deisolating” on page 29 for more information). As soon as the faulty zone is isolated or the problem has been resolved, the alarm is reset automatically.
Page 29
If the engineer reset can be done by user, the display may show the following. Eng. reset Code:23353 — or — Call +485555555 Code:23353 To do an engineer reset: 1. Note the engineer code that is displayed in the engineer reset request. 2.
The Advisor Advanced menu The Advisor Advanced system uses a menu structure to present the various options and commands available. The availability of these depends on system configuration and on the permissions in your user group. You may not always see all the items described in this manual.
Accessing menu Before commencing, ensure that the welcome or status screen is shown on the display. UTC F&S TUE 29 Apr 08:55 — or — 1 2 3 4 5 6 7 8 █ [ ] √ x ? + + Provide an allowed key sequence indicated in “Common key sequences”...
Zone options 1 Zone options 1>Inhibit zones 2 Camera menu The menu allows inhibiting zones and performing user operations on cameras. Advisor Advanced Manager Manual...
Inhibiting / uninhibiting zones 1.1 Inhibit zones The Inhibit function is used to inhibit zones and exclude them from the security system until the next unset. There may be occasions when you want to inhibit a zone. For example, if you want to leave a window open when the system is set.
Shunting zones 1.2 Shunt zones The shunt function is used to inhibit zones for a certain time period. Enter the “Shunt zones” menu to switch zone shunts on or off. 1>Zone 1 Shunt off 1. Press Up or Down to scroll through the zones. 2.
Cameras Note: These menus are available only if the wireless PIR camera expander is installed and configured. 1.3 Camera menu 17>Camera 17 18 Camera 18 Use camera menu to take pictures manually. Select an appropriate camera. 1.3.n Select camera 4>Isolate Select an appropriate camera to configure.
Page 36
Choose a central station to send the picture. Calling CS 1... Transmitting The current picture transmission status is shown in the bottom line of the screen. 1.4 Delete pics 1>Expander 1 ------------ Delete all pictures from the wireless PIR camera expander. Select expander, then select OK and press Enter to remove all pictures from the selected expander.
Isolating / deisolating 2 Isolate The isolate function is used to isolate zones or devices, and exclude them from the security system. Note: Isolated devices do not raise tampers or faults, but still remain operational. You do this, for example, when a zone is faulty or broken. By isolating it, you stop it from causing an alarm until the problem has been resolved.
3 Display logs The Display logs list provides you with a quick alarm history. It is a fast and easy way to determine where alarms have happened. This information is useful when you have had to reset an alarm without checking its cause immediately. To view messages, select one of the following message types.
Panel status 4 Panel status The "Panel status" function lists zones that are in alarm or tamper alarm, zones that are inhibited or active, plus system alarms. There are menu options that display each of these conditions separately. However, this option can be used to check on all zones that need attention. If you are allowed, you can see the panel current status using the “4 Panel status”...
5 PIN 1>Change PIN ********** If you are allowed, you can change your PIN using Change PIN menu. The PIN policy in the Advisor Advanced system can be configured in one of the following ways: PINs are generated by the system. The user can request a new PIN generation, but PINs cannot be entered manually or edited.
SMS and voice reporting 6 SMS and Voice 1>User phone None The SMS and Voice menu contains configuration menus for SMS and voice reporting. This menu allows you to change only your own settings. 6.1 User phone 1 User phone >...
Users 7 Users 0>Add user 2 Supervisor Use the “Users” menu to add, edit, or delete users of the Advisor Advanced system. Up to 50 users can be programmed. For each user, the system records these options: • Number (a panel ID between 1 and 50) •...
User settings 7.0 Add user Use to add a user. If the user is created successfully, the following message appears: INFO User added The new user is given the default name “User N” and placed on the end of the user list.
Page 44
7.n.3 User card 3>User card ********** The User card menu allows you to enter the user card number. Press Enter and present the card to the keypad. This is only possible on LCD keypads with integrated readers. 7.n.4 RF Fobs 0>Add fob 1 Fob 1 This menu lets you see all fobs programmed for the selected user, select an...
Page 45
7.n.4.m.4.2 Remove RF dev Remove RF dev? >Cancel< Select Ok and press Enter to remove the wireless device from the wireless expander database. 7.n.4.m.5 Remove fob Remove fob? >Cancel< Use the Remove fob command to remove the fob from the system. Select Ok and press Enter.
Page 46
For more information on user groups see “User groups” on page 6. 7.n.7 SMS and Voice 1>User phone None The SMS and Voice menu contains configuration menus for SMS and voice reporting. 7.n.7.1 User phone 1 User phone > < The User phone menu allows you to set the user’s phone number.
Page 47
7.n.10 Delete user To remove a user, select a user using the cursor, or by entering the user number, and go to the “Remove user” menu. The display shows: 10 Remove user >Cancel< Choose Ok and press Enter. This removes the user. Repeat this to delete other users, or press Clear to exit and return to the higher menu level.
Service 8 Service menu The Service menu allows performing the maintenance tasks described below. 8.1 Time and date 1>Time zone UTC+1 The Time and date menu allows you to set the system time and date, as well as set up daylight saving time. The following options are available.
Page 49
To perform the walk test: 1. Enter the menu. Next, you are prompted to choose between total and reduced walk test. Walktest scope >Total< The following options are available: - Total: Standard walk test. All appropriate zones are tested. - Reduced: Reduced walk test. This test is limited only zones that were not active recently, during last 4 hours, or since the last set.
Page 50
Table 9 below shows the options available for siren testing. Table 9: Siren test options Menu Description 8.4.1 Internal siren Toggle the state of the internal siren 8.4.2 External siren Toggle the state of the external siren 8.4.3 Strobe Toggle the state of the strobe Enter the appropriate menu and press Enter to activate the output.
Page 51
8.5.3 Credit 3>Credit ------------ Enter Credit menu to receive the GSM account state. 8.6 Chime 1>Area 1 Enable The Chime menu allows you to enable or disable chimes for selected areas and keypads. Note: If the chime is set to auto in system settings, the chime in the area may automatically become enabled or disabled when the area is armed or disarmed.
Page 52
Otherwise, if the card is unknown, its type and data is displayed in the same format as in the event log. CARD/TAG 98832665774 Badge another card, or press X to exit the menu. 8.10 Uns Time Left Time left 06 min * to extend time The time left until the delayed ATM autoset occurs.
Calendar 9 Calendar 1>Actions >>> The Calendar lets you to configure an automatic execution of specific actions at particular time and date. Panel settings can be automatically adjusted according to the schedule. The Calendar functionality is based on actions. Every action has the following settings: •...
Page 54
9.1.1 Current view 1>Actions 2 Action lists Show actions, action lists, and exceptions scheduled for the current day. Choose actions, action lists, or exceptions to view. 9.1.2 Date view 1 Date >01.01.2000< Show actions, action lists, and exceptions scheduled for the selected day. Enter a date to view.
Actions 9.2 Actions 01>Action 1 02 Action 2 There are 64 programmable actions in the Advisor Advanced system. Each action can be programmed with a number of options. Before going any further, select the action to program. Action settings 9.2.0 Add action Access the menu to add an action.
Page 56
9.2.n.4 Function 4 Function >>> The Function menu lets you to assign a user programmable function that should be executed during this action. User function programming is described in “User programmable functions” on page 57. 9.2.n.5 Action filter 00>Not used 01 Internal Sire Assign an additional condition filter to the action.
Action lists 9.3 Action lists 01>Action list 1 02 Action list 2 Action lists are used to group configured actions. An action list can contain up to 8 actions. Action list provides a name as a common description for these actions, as well as the possibility to enable or disable all of them in one menu.
Page 58
An action list can contain up to 8 actions. Choose “Action” to select an action. Choose “Remove” to remove an action from the action list. 9.3.n.4 Delete action list To remove an action list, select an action list using the cursor, or by entering the action list number, and go to the Delete action list menu.
Exceptions 9.4 Exceptions 01>Exception 1 02 Exception 2 Exceptions represent particular time periods when everyday actions are expanded or substituted by other actions. An example of exception is a holiday, when the premises must stay set for 24 hour. Exception validity note There are 64 exceptions available in the system.
Page 60
9.4.n.3 Stop [dd.mm] 3 Stop [dd.mm] >01.01< Enter the last day of the exception in DD.MM format. 9.4.n.4 Year 4 Year >All< Enter the year of the selected exception. The allowed range is 2000 to 2099. Value below 2000 is equal to All. 9.4.n.5 Week days 1 Monday >Yes<...
Page 61
An exception can contain up to 4 action lists. Choose “Action list” to select an action. Choose “Remove” to remove an action list from the exception. 9.4.n.10 Delete exception To remove an exception, select an exception using the cursor, or by entering the exception number, and go to the Delete exception menu.
Schedules 9.5 Schedules 01>Schedule 1 02 Schedule 2 Schedules are timed sets of actions with a weekly structure. Each schedule can contain actions and action lists assigned to particular days of the week. Schedule settings 9.5.n Select schedule 1>Name Schedule 1 Select a schedule to program.
Page 63
9.5.n.5 Week days 1>Monday 2 Tuesday The Week days menu allows you to assign actions and action lists to each day of the week. Choose a day of the week to assign actions and action lists. 1>Actions 2 Action lists Go to the Actions submenu to assign or remove actions for the selected day of the week.
Page 64
Note: When calendar settings change, all cancelled actions become active again. 9.5.n.8 Area restr 1>Area in schdl 12345678 Restrict the schedule in particular areas. See submenus below for details. 9.5.n.8.1 Area in Schdl 1 Area in schdl >12345678< Only in the selected areas the following scheduled actions are allowed: set, unset, part set, shunt, and area chime.
User programmable functions You can program your own user functions that can later be activated automatically or manually. For example, you can program a user function for setting an area or switching on an output, and then define a schedule for it. Programming menu The function programming menu is accessible from various menus where user programmable functions are used.
Page 66
Type Description Available parameters Panic Activate panic alarm None Chime area Change a chime functionality 1. Areas selection status in the area 2. Status change: Clear, Set, or Toggle Chime keypad Change a chime functionality 1. Keypad selection status on the keypad 2.
Page 67
[1] Depending on system settings, the function may require logging in of a user with the appropriate privileges. [2] Set and part set function start time is the time when the warning timer is started. The warning time must be taken into account. [3] The function is an entry to the appropriate user menu.
Fobs programming To add a fob, follow one of the following procedures. Sequential mode In sequential mode, you can learn a range of fobs. To learn fobs in sequential mode: 1. Go to the “7.n.4.0 Add fob” menu described on page 36. 1>Expander 1 2 Expander 2 2.
Page 69
To learn a fob in manual mode: 1. Go to the “7.n.4.0 Add fob” menu described on page 36. 1>Expander 1 2 Expander 2 2. Select zone location. Learn mode >Manual< 3. Choose Manual mode and press Enter. Input number >...
Chose Yes if you need to configure more fobs. The procedure will be then repeated. Fob activation To activate a fob: 1. Press the unlock button quickly two times, then press and hold until fob LED flashes 3 times. Release the button immediately after third flash. 2.
Common key sequences See “Set and unset the system” on page 10. The authorization method depends on system settings. Consult the system installer to define the authorization method. Common key sequences for LCD keypad Table 11: Common key sequences for LCD keypad Action Programmed method Key sequence...
Action Programmed method Key sequence Menu access Menu access with PIN Menu, PIN, Enter PIN, Menu Menu access with card Menu, card Menu access with card and PIN Menu, card, PIN, Enter Card, PIN, Menu ...
Action Programmed method Key sequence Unset with card and PIN Off, card, PIN, On Card, PIN, Off Card, PIN Part set Part set with card Card 3 x card Door access Door access with PIN Any digit, PIN, On ...
Programming records Use the following pages to record the configuration and programming details for your system. The following areas are covered: • Users • User groups • Condition filters (to be supplied by installer) • Schedule • Exceptions from schedule •...
Schedule Days Time Action Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun...
Appendix A. SMS control This section specifies the SMS commands available in the systems equipped with ATS7310 GSM communication modules. You can send commands to the alarm system via SMS messages. These commands are listed in “SMS command list” on page 77. See Advisor Advanced SMS Control Reference Guide for more information.
— or — • The same phone number is programmed for more than one user. The PIN is then required to identify the user. If the PIN field is required and the command does not contain the PIN code, the following message is returned: Command rejected, PIN required.
Page 86
Command Description Example partset1 partset1 [<area list>] Part set 1 or part set 2 areas. Parameters are equal to the Set Part set 1 all allowed areas. p1 [<area list>] command. partset2 1 partset2 [<area list>] Part set 2 area 1. p2 [<area list>] p1 2 3 5 Part set 1 areas 2, 3, and 5.
Page 87
Command Description Example zone faults zone faults [<area list>] Get fault, tamper, and isolate status of all zones in the areas Get faults for all zones in all zf [<area list>] listed. Parameters are equal to allowed areas. the Zone Status command. zone faults 1 Get faults for zones of area 1.
Page 88
Command Description Example events 23 events [<type>] Get events from the range, [<num1>] [<num2>] including <num1> and <num2>. Get mandatory events from 1 to 23. events access 3 13 evs [<type>] [<num1>] Type usage is equal to the “event” command, with the [<num2>] Get access events from 3 to 13.
Page 89
Command Description Example stop reporting 6 stop reporting [<num>] Stop SMS reporting to the user <num>, or for the sender, if Stop reporting for user 6, until the stop [<num>] <num> is omitted, until the next next system set. system set [2][3]. stop Stop SMS reporting for yourself, until the next system set.
Page 90
Command Description Example user 6 user <num> Get user <num> details [1]. List user 6 details The command returns user name, phone number, language, SMS control and reporting List user 9 details privileges. users 6 9 users [<num 1> <num2>] List users from <num 1> to <num2>...
Glossary Access control The control of entry to, or exit from, a security area through doors. Action Action is a user programmed function, which can be done automatically according to the programmed schedule. Action list Action lists are used to group configured actions. They can be done automatically according to the programmed schedule.
Page 92
Data gathering panel. See Expander. Dialler An electronic device that allows the Advisor Advanced system to transmit alarms and other events to a central station. Can also be used to perform up/download. Disarmed See Unset. Door contact A magnetic contact used to detect if a door or window is opened. Door control The control of doors.
Page 93
Normal / Active / Describes the condition of a zone. Tamper / Inhibited / • Normal: The zone is not activated. For example, fire exit door closed. Isolated / Masked / • Active: The zone is activated. For example, fire exit door open. Fault •...
Page 94
The condition of an area where a change in the status of any zone (from normal to active) causes an alarm. An area or premise is only set when it is unoccupied. Some zones (like vaults) can remain armed continually. Schedule A timed set of actions with a weekly structure.
User menu map 1 Zone options 1.1 Inhibit zones 1.2 Shunt zones 1.3 Camera menu 1.3.n Select camera 1.3.n.4 Isolate 1.3.n.6 Remote pics 1.3.n.5 Max pics 24h 1.3.n.7 Test pic to CS 1.4 Delete pics 2 Isolate 2.1 Isolate zones 2.2 Isolate expander 2.3 Isolate keypad 3 Display logs...
Page 99
8 Service menu 8.1 Time and date 8.2 Walk test 8.3 Manual test call 8.4 Siren test 8.5 Dialler menu 8.5.1 CS (central station) 8.5.1.n Select CS 8.5.1.n.1 Phone 8.5.2 PC connection 8.5.3 Credit 8.6 Chime 8.7 Trigger state 8.8 Service in 8.9 Check card 8.10 Uns Time Left 9 Calendar...
