Studio Stove 14

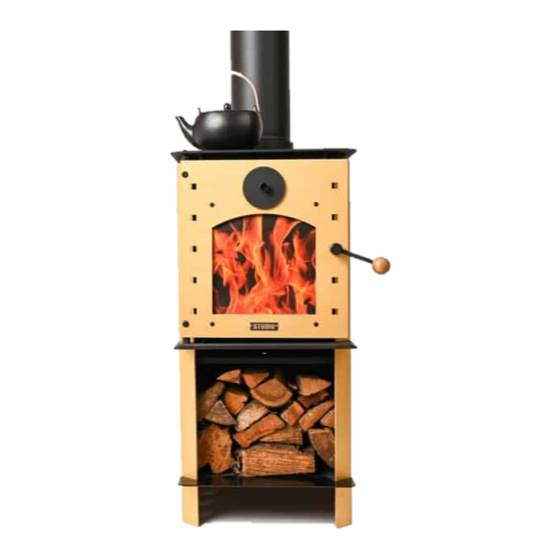

Studio Stove—clean air approved wood burner
Installation instructions
The Warmington "Airback"
The Warmington Studio Stove is fitted
with an "Airback". The "Airback" is
designed to be left in the firebox and act
as a heat exchanger. It makes the fire-
place burn more efficiently and cleaner. It
does not change how you use the fire or
how it is installed, but the improved
performance
allows
the
fire
to
be
installed in sub 0.7 g/kg areas like Otago,
Canterbury, Nelson and Alexandra.
Studio "Airback"
Visit
www.warmington.co.nz
for Specs, DWG's and PDF uploads of Fires
Fire, flue system and instructions to comply with AS/NZS 2918:2001
Keep these Instructions for future reference. Ensure that you have the correct and current installation details for the Warmington fire
Installation
The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
See www.homeheat.co.nz/members for a certified NZHHA SFAIT installer in your area.

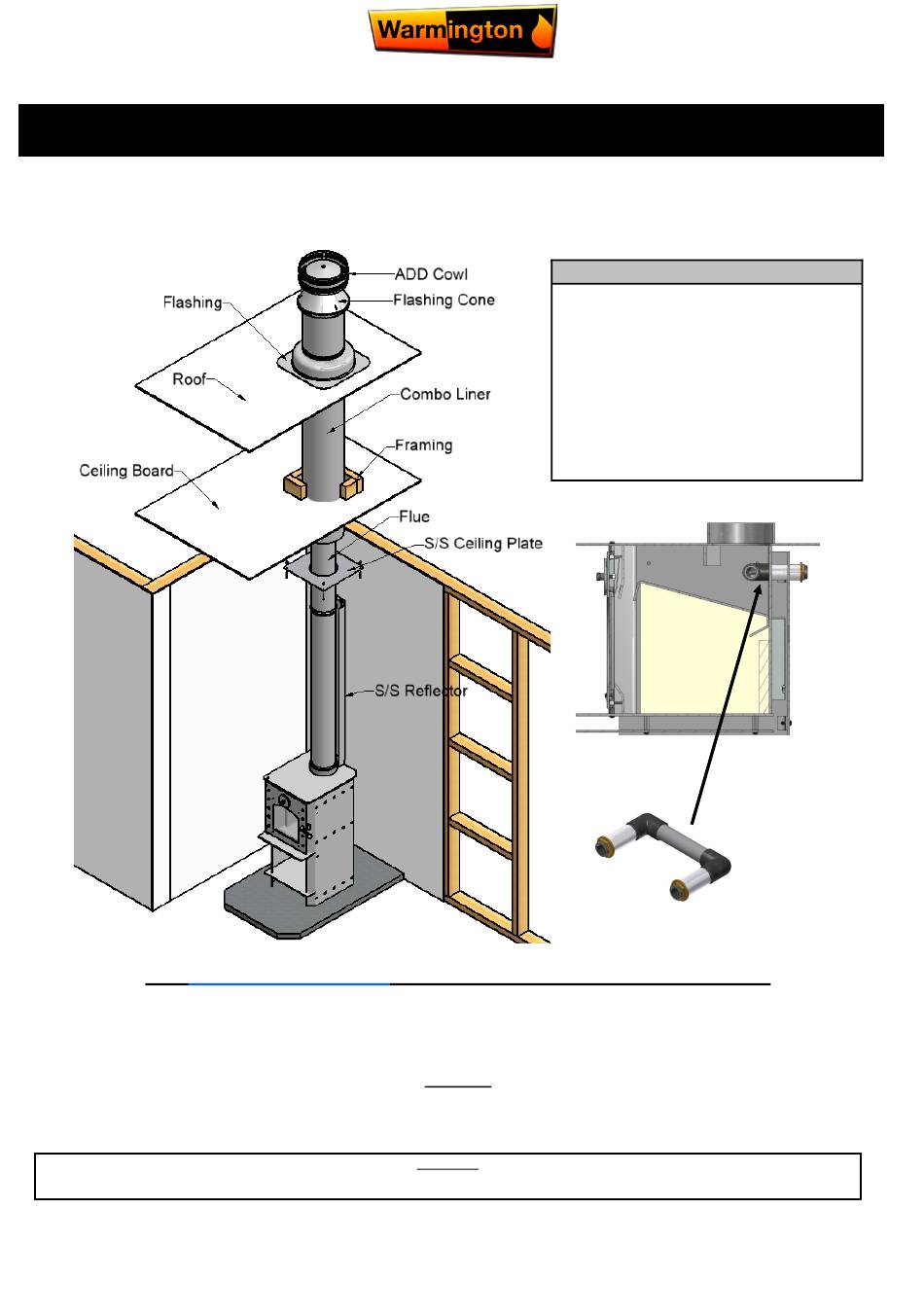

CLEARANCES TO COMBUSTIBLE SURFACES UNLESS STATED OTHERWISE
IMPORTANT
Read all the instructions carefully before commencing the installation. Failure to follow these instructions may result in a fire hazard and will void the warranty
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
All Dimension are in mm.............Copyright ©
