Summary of Contents for Dometic DRS

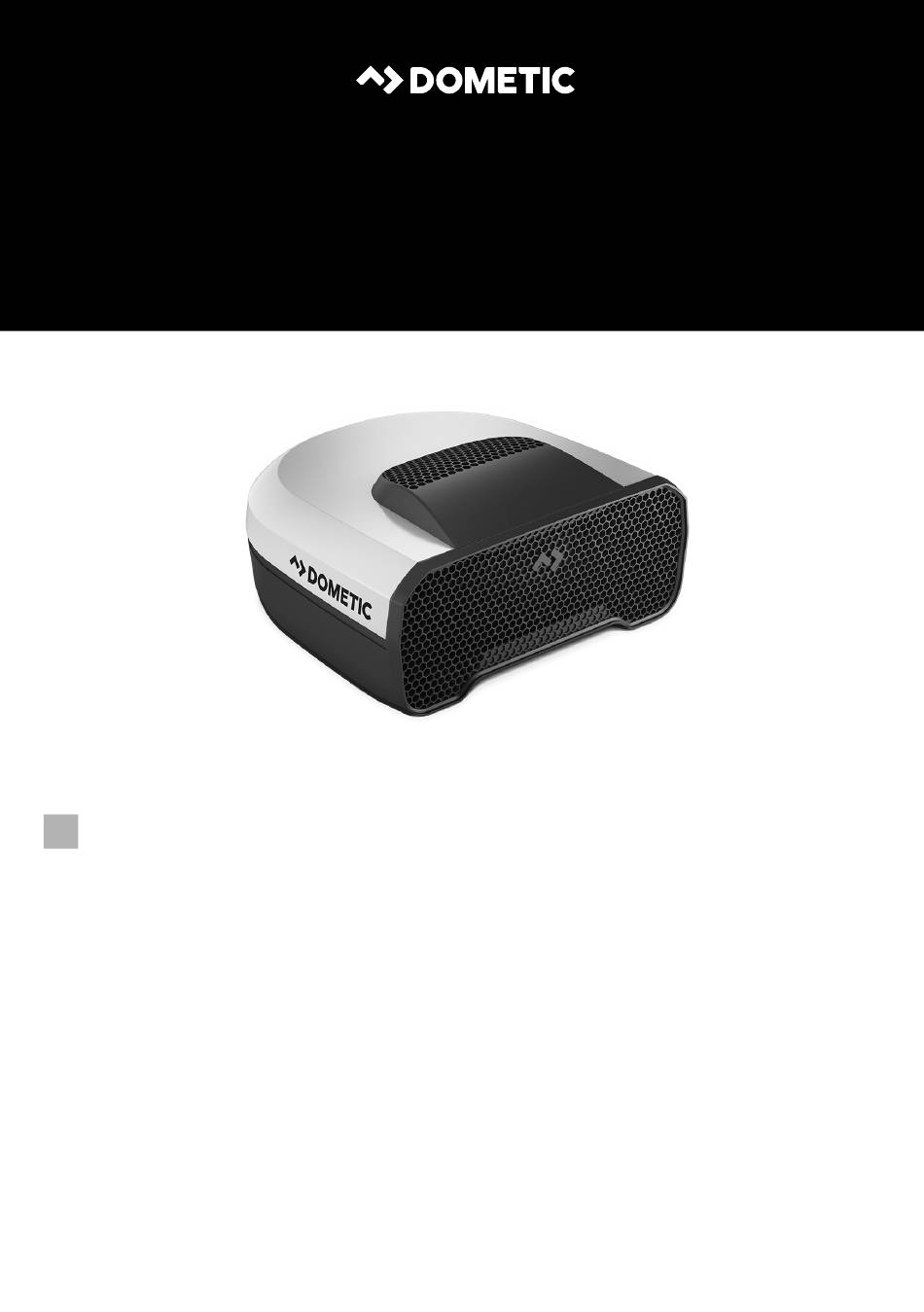

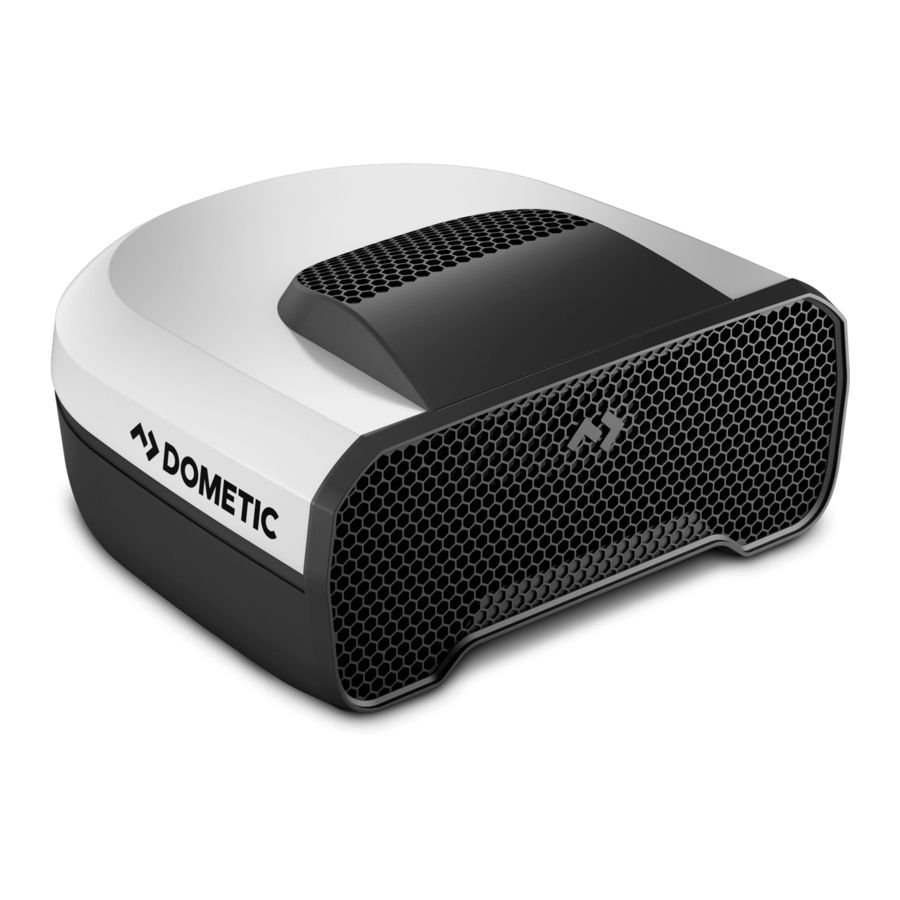

- Page 1 WINDOWS, DOORS & LIGHTS OTHER Dust Reduction System Installation and Operating Manual...
-
Page 3: Table Of Contents
Explanation of symbols Original instructions Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols . -
Page 4: Safety Instructions
Safety instructions NOTE Supplementary information for operating the product. Safety instructions The manufacturer accepts no liability for damage in the following cases: • Damage to the product resulting from mechanical influences • Alterations to the product without express permission from the manufacturer •... -
Page 5: Scope Of Delivery
Item in fig. 1, Quantity Explanation page 5 DRS assembly Top roof flange Bottom ceiling flange with ceiling cover and blocking plate 10G x 80 mm self-tapping screws 10G x 60 mm self-tapping screws 10G x 34 mm self-tapping screws... -
Page 6: Intended Use
The DRS can also be installed on horse floats to pro- vide a source of clean, filtered air for horses. - Page 7 A small amount of airflow around the vent may be noticeable. If the main air path into the DRS through the filter needs to be blocked for any reason, the blocker plate is designed to slide into a groove in front of the main filter and rest on the locating tab shown (fig.
- Page 8 Technical description ➤ Close the interior ceiling cover by rotating the cover upwards and pushing gently until the magnets engage to hold the cover closed.
-
Page 9: Installation
• Mounting position on the roof – front of caravan – is optimal • Make sure the DRS is mounted in a position with unobstructed airflow (no objects in front of the DRS such as air conditioners, solar panels or antennas)(fig. 4,... - Page 10 Installation Recommended mounting location for caravans Recommended mounting location for pop-top caravans ≤ 300 mm...
- Page 11 Installation Installing the DRS There are two ways of installing the system: • Making a new opening (chapter “Making a new opening” on page 11). In this case the opening must be reinforced by an appropriate frame. • Using the existing roof hatch openings in the vehicle (chapter “Installing in an existing opening”...
- Page 12 ➤ Position the top roof flange centrally within the opening and mark the two rear corners on the roof. ➤ Remove the top roof flange and screw onto the DRS assembly in the four corners using the 10G x 34 mm screws and tighten to a torque of 15 Nm:...
- Page 13 Installation ➤ Fit the top roof flange with the DRS assembly to the centre of the opening and seal using silicone adhesive around the perimeter. It is permitted to apply silicone over the seal as this will not affect the seal function and will improve sealing.
- Page 14 Installation Fitment of bottom roof flange Roof thickness Screw Screw Spacer length (mm) 10G x 60 mm 10G x 80 mm (mm) x (recommended) x (recommended) ➤ Fit the 10G x 80 mm screws (or 10G x 60 mm screws if the roof thickness is 45 mm or less) through the holes in the bottom roof flange and slide the spacer over the protruding part of the screw so that the spacer will be fitted between the bottom roof flange and the top roof flange:...
- Page 15 5 mm by choosing a different combination of 10 mm and 5 mm long sleeves. ➤ Ensure the filter is inserted into the filter holder, and the filter holder inserted into the DRS. ➤ Close the ceiling cover: ✓ The installation is complete.
-
Page 16: Regular Maintenance
Regular maintenance Regular maintenance Changing the main filter To change or inspect the filter proceed as follows: ➤ Open the interior ceiling cover. The ceiling cover is hinged on one side and held closed by magnets on the opposite side. ➤... - Page 17 Regular maintenance Driving condition Filter inspection interval Filter replacement interval Sealed roads 2000 km 10,000 km Dusty roads 1000 km 5000 km Following another 300 km 1000 km vehicle on extremely dusty roads Filter inspection: ➤ Check the colour for indication of amount of dust accumulated. ➤...
- Page 18 CLICK Cleaning debris inside of the DRS After a long period of time, the DRS may accumulate some dust and debris. Any debris in the filter or filter holder can be removed by following the steps in chapter “Changing the main filter” on page 16. If debris are located between the front grille and the filter (main compartment), access to the rear of the cavity can be gained by removing the main filter or the ventilation filter frame.
- Page 19 Regular maintenance Cleaning the ventilation filter foam The foam should be checked regularly for build up of dust. If dust is present, the foam will be discoloured and should be rinsed in water and dried. ➤ Cleaning the foam is important to maintain ventilation in the caravan from harmful gases.
-
Page 20: Warranty
Warranty ➤ To re-insert the frame, angle the top of the frame upwards and insert into the space so that the cross-brace of the frame is resting on the housing. ➤ Angle the rear edge upwards until the clip is pushed fully upwards. Warranty The warranty period is two years. -
Page 21: Disposal
Disposal Disposal ➤ If possible, dispose of the packaging material in the appropriate recycling con- tainer. ➤ If you wish to finally dispose of the product, ask your local recycling centre or spe- cialist dealer for details about how to do this in accordance with the applicable disposal regulations. - Page 22 Technical data Dimensional tolerance +/- 3 mm...
- Page 23 Technical data Dimensional tolerance +/- 3 mm...
- Page 24 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
