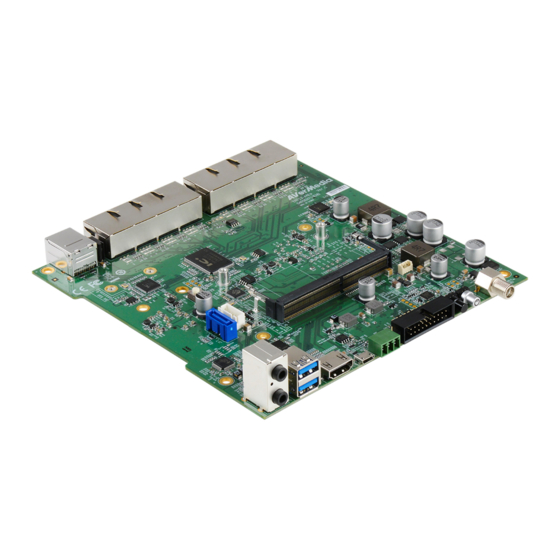

Avermedia AVerAI EN713-AAE9 Series Manual

Carrier board and box pc
Hide thumbs Also See for AVerAI EN713-AAE9 Series:

Advertisement

Quick Links

Download this manual
AVerAI for AI at the Edge
AVerAI Carrier Board and Box PC EN713-AAE9
®
TM
Designed for NVIDIA
Jetson Nano
Module
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing:
Contact
Technical Support:
Professional User
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVerAI EN713-AAE9 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Avermedia AVerAI EN713-AAE9 Series

Summary of Contents for Avermedia AVerAI EN713-AAE9 Series

  • Page 1 AVerAI for AI at the Edge AVerAI Carrier Board and Box PC EN713-AAE9 ® Designed for NVIDIA Jetson Nano Module AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842 Sales and Marketing: Contact...
  • Page 2 Table of Contents...
  • Page 3 Disclaimer The information contained in this user manual, including but not limited to any product specification, is subject to change without notice. AVerMedia assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user manual.
  • Page 4 AVerMedia Global Offices...
  • Page 5 AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
  • Page 6 ESD Warning Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When handling any circuit board assemblies including AVerMedia AVerAI products, it is highly recommended that ESD safety precautions can be observed. ESD safe best practices can include, but are not limited to the following ones.
  • Page 7 1.0 Introduction ® AVerMedia AVerAI EN713-AAE9 is a fully featured carrier board developed for NVIDIA Jetson Nano module. It is specifically designed to have eight 10/100Mb Ethernet ports with PoE (PSE, Power Sourcing Equipment) support. ® Operating with NVIDIA Jetson Nano...
  • Page 8 RS-485 1x RS-485 Euroblock (3 pins) Expansion Header 40 pins (2x 20 Header) with 1x 3.3V UART2, 2x SPI, 1x I2S, 2x I2C Power Button 1x with a Green color LED Recovery Button IEEE 802.11a/b/g/n/ac dual-band 2x2 MIMO (Optional, by using Wi-Fi Wi-Fi Mini-PCIe card over USB 2.0 interface) Back I/O...
  • Page 9 CPU Complex ARM® Cortex® A57 MPCore (Quad-Core) Processor with NEON Technology. Maximum Operating 1.43GHz Frequency Storage 16GB e.MMC v5.1 Maximum throughput: 2160p30 (H.265) | 2160p30 (H.264) | 2160p30 (WEBM Video Encode VP8) Maximum throughput: 2160p60 (H.265) | 2160p60 (H.264) | 2160p60 (WEBM Video Decode VP9) (TBD) CE/FCC Class B, CCC, BSMI, VCCI...

  • Page 10: Product Overview

    2.0 Product Overview 2.1 Block Diagram The block diagrams are to be updated.
  • Page 11 2.2 Top View of Carrier Board...
  • Page 12 2.2 Bottom View of Carrier Board...
  • Page 13 2.3 Connector Summary Designation Description RJ45 10/100Mb 4-port Ethernet connector with POE support RJ45 10/100Mb 4-port Ethernet connector with POE support RJ45 single-port Ethernet connector ® 260-pin SODIMM connector for NVIDIA Jetson Nano module SATA power wafer Fan wafer Mic and speaker connector USB 3.1 Gen 1 2-port connector with 900mA x2 HDMI video output connector USB/OTG micro-type connector...
  • Page 14 3.0 Feature Description 3.1 Connector and Switch Locations...
  • Page 15 10/100Mb 4-port Ethernet Connectors 10/100Mb 4-port Ethernet connectors, used to connect IP Function cameras and/or the network switches. J1 and J2 Location 4-pin (12-36) RJ45 with integrated Type Description magnetics for PoE application Manufacturer and CHAMPWAY, CWJ46614AENL Part Number Any standard 10/100Mb Ethernet Mating Connector...
  • Page 16 3.4 260-Pin SODIMM Connector Used to mount with and connect to Function ® NVIDIA Jetson Nano module. Location 260-pin SODIMM connector Type Description Manufacturer and FOXCONN, ASAA826-EASB0-7H Part Number SODDR4 9.2 standard Mating Connector Please refer to NVIDIA Jetson Pinout Nano System-on-Module datasheet for the pinout details.
  • Page 17 3.6 Fan Wafer Function Fan power and control wafer Location Type Description 1*4 pin wafer with 1.25 mm pitch Manufacturer and Joint Tech, Part Number A1250WV-04PNLNT1N00B (Combination with PINREX’s Mating Connector housing) Pin Number Description 5V Power Pinout TACH from fan to module PWM from module to fan...
  • Page 18 3.9 HDMI Video Output Connector Function HDMI Type-A TX connector Location Type Description HDMI Type-A female connector Manufacturer and Compupack, ACNHM220028-001 Part Number Any HDMI standard Type-A Mating Connector interface cable or device. Pinout Please refer to HDMI standard. Remarks None 3.10 USB/OTG Micro-Type Connector Function...
  • Page 19 3.12 54VDC Power Jack Function 54V DC power input Location Type Description 2.5 mm power jack Manufacturer and JKCR, DCD-020-105B Part Number Mating Connector Any 2.5mm power plug cable Pin Number Description Pinout 54V Power None Remarks 3.13 20-Pin Header UART console for debug, I2C, Function GPIO...
  • Page 20 3.14 Mini Card Connector Function LTE or Wi-Fi Module Location Type Description Mini-Card for USB Manufacturer and FOXCONN, AS0B221-S68Q-7H Part Number Any Mini-Card standard interface Mating Connector device. Please refer to Mini-Card standard Pinout for the pinout details. Remarks Support USB 2.0 only, not PCIe 3.15 RTC Battery Connector Function RTC battery for module...
  • Page 21 3.19 Other Switch and Jumpers Other switch and jumpers, such as SW1, JP3, JP4, and JP5, etc. marked on the printed circuit board of EN713-AAE9 carrier board, are reserved for the internal use by AVerMedia. They are not open to the client application.

  • Page 22: Installation

    For L4T (Linux for Tegra) BSP and the software support associated with NVIDIA Jetson Nano module, please check this link, , to https://www.avermedia.com/professional/download/en713_aae9#ans_part download the file from AVerMedia website. 6.0 Force Recovery Mode ® USB 3.l/OTG port (J11) of EN713-AAE9 can be used to re-program NVIDIA Jetson host system running NVIDIA Jetpack...
  • Page 23 described below. Power off the system. Ensure the system power must be completely OFF, instead of staying in the suspend mode or the sleep mode. Connect a USB cable from OTG USB port to the other host system which will be used ®...
