Using remote controller
SEND/LEARN
indicator
ON
AUDIO/TAPE
MODE
ON
SLEEP
AUDIO/TAPE
MODE
DISPLAY
CH
AUDIO
Re-EQ
LATE NIGHT
DIMMER
58
STNBY
STNBY
LIGHT
VOL
TEST
AUDIO
MUTING
MUTING
TRACK
DISC
REC
OPEN/CLOSE
INPUT
DVD
CD
SELECTOR
T1
T2
TUN
PH
buttons
V1
V2
V3
V –
STEREO
DIRECT
DSP
Listening
1
2
3
mode buttons
SURROUND
THX
DSP
4
5
6
Re-EQ
CH SEL
LEVEL +
LEVEL +
7
8
9
LEVEL –
LATE NIGHT
DIMMER
LEVEL –
+ 10
0
ENT
CH SEL
HOME THEATER CONTROLLER
RC-390M
Overview

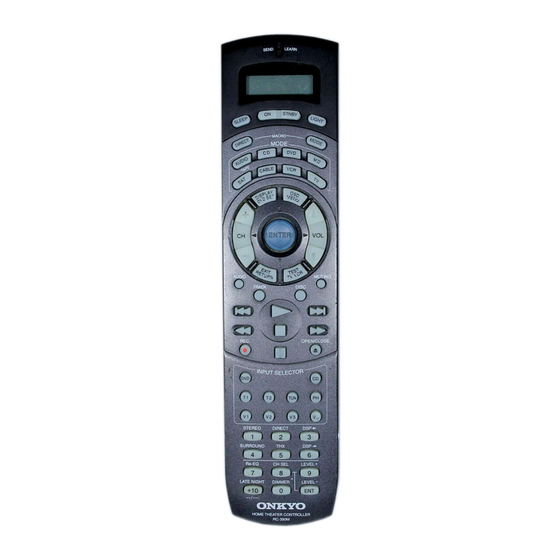

The RC-390M remote controller is a useful tool to help you
operate the components of your home theater. To do so, first press
the Mode button that corresponds to the device you wish to
control. At this time, the display on the remote controller will
change to show the component that is selected. Then simply press
the desired operation button and the component will operate
accordingly. For example, if you wish to select the CD input
source at the TX-DS787 with the remote controller, first press the
AUDIO/TAPE MODE button to select the TX-DS787 ("AUDIO"
will appear on the display) and then press the CD (INPUT
SELECTOR) button.
Using the remote controller to control each
device
In order to use the remote controller, you must first turn on the
POWER switch at the TX-DS787 so that it enters standby mode.
1. Press the AUDIO/TAPE MODE button.
"AUDIO" appears in the remote controller display.
2. Press the ON button to turn on the TX-DS787
and press the STNBY button to put it back in
the standby mode.
When you press the STNBY button on the remote controller, it
puts the TX-DS787 in the standby state but does not turn it
completely off.
SEND/LEARN indicator
This indicator acts as a guide when commands are programmed
into or sent by the remote controller. It also warns the user when an
error is made or battery power is low.
Controlling the TX-DS787
If "AUDIO" is already appears in the display, proceed to step 2.
1. Press the AUDIO/TAPE MODE button.
"AUDIO" appears in the remote controller display.
2. Press the desired operation button. The
buttons shaded in the figure to the left are the
operation buttons that can be used to control
the TX-DS787.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Onkyo RC-390M
Summary of Contents for Onkyo RC-390M
- Page 1 Using remote controller Overview The RC-390M remote controller is a useful tool to help you operate the components of your home theater. To do so, first press the Mode button that corresponds to the device you wish to control. At this time, the display on the remote controller will change to show the component that is selected.
-
Page 2: Listening Mode Buttons
Using remote controller LIGHT: Illuminates the buttons. Notes: SLEEP: Sets the sleep function. • The depth of the Late Night effect is determined by Dolby Digital software. Some sounds may produce no or little effect. • The SLEEP buttons enables you to set the TX-DS787 to turn off automatically after a specified time period. -
Page 3: Using Remote Controller
Using remote controller Controlling an Onkyo CD player The z connector of the Onkyo compact disc player must be connected to the TX-DS787 (see page 13). 1. Press the CD MODE button. “CD” appears in the remote controller display. CD MODE 2. - Page 4 Using remote controller Controlling an Onkyo cassette tape deck The z connector of the Onkyo cassette tape deck must be connected to the TX-DS787 (see page 13). 1. Press the AUDIO/TAPE MODE button. “AUDIO” appears in the remote controller display.
- Page 5 Using remote controller Controlling an Onkyo DVD player Make sure that you point the remote controller toward the sensor on the Onkyo DVD player. STNBY 1. Press the DVD MODE button. “DVD” appears in the remote controller display. DVD MODE DVD SET 2.
-
Page 6: Programming The Commands Of Remote Controllers For Other Devices Into The Remote Controller
After programming which MODE button to use, you will then transfer the separate commands from the other remote controller over to the RC-390M remote controller one at a time. Each command is then programmed to a different button on the RC- 390M remote controller. - Page 7 4. Press and hold down the button (that corresponds to the command you are • The remote controller codes for Onkyo compact disc players, cassette tape decks, DVD players, and mini disc recorder have programming) on the remote controller of the...
- Page 8 LEVEL – + 10 Note: HOME THEATER CONTROLLER RC-390M If no button is pressed for more than 30 seconds during the programming, the SEND/LEARN indicator flashes three times quickly, “ERROR” appears in the display, and the remote controller exits the programming mode. Resume from Step 1.
-
Page 9: Using A Macro Function
Resume from Step 1. HOME THEATER CONTROLLER • If you perform an invalid operation during programming, the RC-390M SEND/LEARN indicator flashes three times quickly, “ERROR” appears in the display, and the remote controller exits the programming mode. Resume from Step 1. - Page 10 LATE NIGHT DIMMER LEVEL – + 10 lights. HOME THEATER CONTROLLER RC-390M 3. Press the DIRECT MACRO button to complete the procedure. The SEND/LEARN indicator flashes twice slowly and Tip: “SAVED” appears in the display. • If you erase or change the command of a button programmed in the direct macro, that operation of that button will no longer 4.
- Page 11 Step 2, then you will in effect be overwriting the HOME THEATER CONTROLLER previous macro with a new macro. RC-390M Erasing a direct macro from the DIRECT MACRO button 1. Press and hold down any one of the eight MODE buttons, press the DIRECT MACRO button, and then release both buttons.
- Page 12 DIMMER + 10 HOME THEATER CONTROLLER Notes: RC-390M • Proceed to Step 3 immediately after Step 2; otherwise, the batteries will be consumed quickly. • If you press any button other than the ENT button in Step 3, nothing will be erased. In this case, resume from Step 1.
