Adastra TR86 User Manual

Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

Introduction

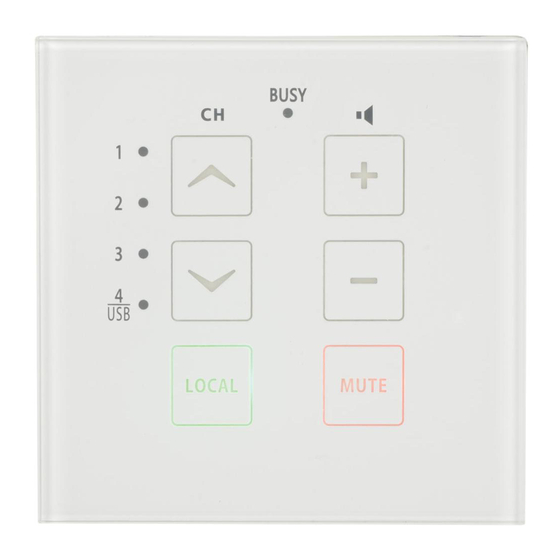

The Adastra TR86 touch remote control panel is designed specifically to operate with the RZ45 Remote
Zoning Audio Matrix. Please read through the following information to avoid incorrect installation and
Operation of the TR86 and keep this manual for future reference.

Safety

• Only connect as described directly to the RZ45 main unit via 8P8C (RJ45) connection
• For extended power, use only a regulated 24Vdc power supply

Placement

• The TR86 can be installed in a stud wall or surface mounted into a back box
• Ensure adequate space behind the panel for the RJ45 connector and any other connected wiring
• Keep the rear housing and connections protected from moisture and dust ingress

Cleaning

• Use a soft cloth with a neutral detergent to clean the front panel as required
• Do not use solvents for cleaning the unit

Installation

Prepare the TR86 for installation by detaching the toughened glass front plate from the rear housing.
The front plate is secured by clips around the edge. A single gang pattress box is provided but other
types may be used, providing that they have adequate mounting depth.
Install the back box in or on the wall at an accessible height, ensuring that the 8-core control cable (4 x
twisted pair) is fed from the RZ45 and terminate with an 8P8C (RJ45) connector as required.
If the control cable run is longer than 100m a local 24Vdc power supply is required.
This will allow the TR86 cable to the RZ45 main unit to be as long as 1km.
If a local audio source is being connected, ensure that this is also fed through the back box.
TOUCH REMOTE CONTROL PANEL
FOR RZ45 AUDIO MATRIX
Item ref: 953.050UK
TR86
User Manual
