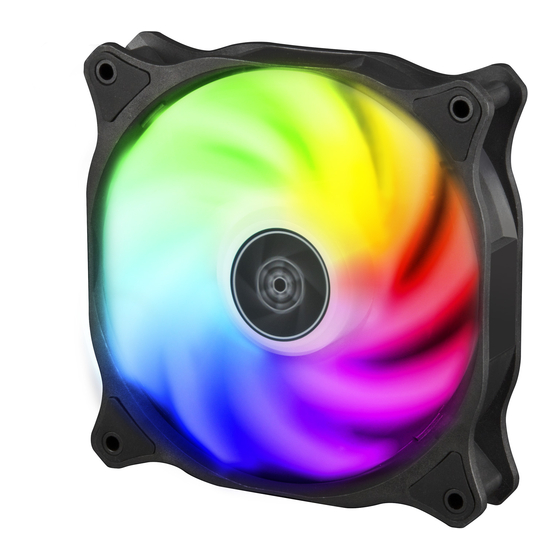

Air Blazer 120R
Specifications
Model Name
Color
Bearing
Connectors
Rated Voltage
Start Voltage
Rated Current
Rated Power
Speed
Airflow
Air Pressure
Noise Level
Dimension
Lifetime
Accessory
#6-32*29.5mm Fan Screw x4
User's manual
SST-AB120R-ARGB
Black Frame, Translucent Fan Blades
Hydro Bearing
4 Pin PWM fan & 4-1 Pin ARGB(5V LED)
12V DC
6V DC
0.32A
3.84W
600 ~ 2200 rpm ± 10 %
25.62 ~ 93.97 CFM
0.26 ~ 3.53 mm H2O
7.4 ~ 35.6 dBA
120mm (L) x 120mm (W) x 25mm (H)
40,000 hours
Ø5*8mm Fan Screw x4
Advertisement
Related Manuals for SilverStone Air Blazer 120R
Summary of Contents for SilverStone Air Blazer 120R
- Page 1 Air Blazer 120R User’s manual Specifications Model Name SST-AB120R-ARGB Color Black Frame, Translucent Fan Blades Bearing Hydro Bearing Connectors 4 Pin PWM fan & 4-1 Pin ARGB(5V LED) Rated Voltage 12V DC Start Voltage 6V DC Rated Current 0.32A Rated Power 3.84W...
- Page 2 Ensure ARGB controller / motherboard has same +5V pin ARGB Lighting Connection definition as AB120R. Stellen Sie sicher, dass ARGB-Controller / -Motherboard dieselbe +5-V-Pinbelegung hat wie AB120R. Asegúrese de que el controlador / placa base ARGB tiene la misma configuración de pines +5V que el AB120R. Assurez-vous que le contrôleur ARGB/la carte mère a la même définition de broches +5 V que AB120R.
